ASCD Component Inspections

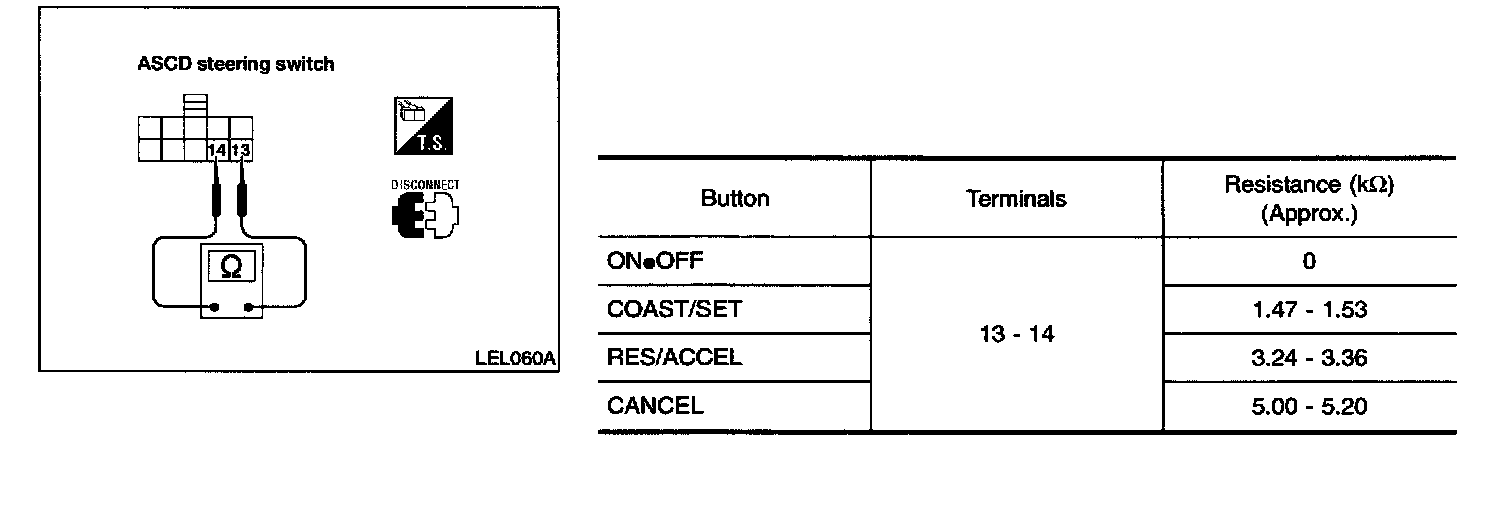

ASCD STEERING SWITCH
Check continuity between ASCD steering switch connector M205, terminals 14 (G) and 13 (L) by pushing each button.

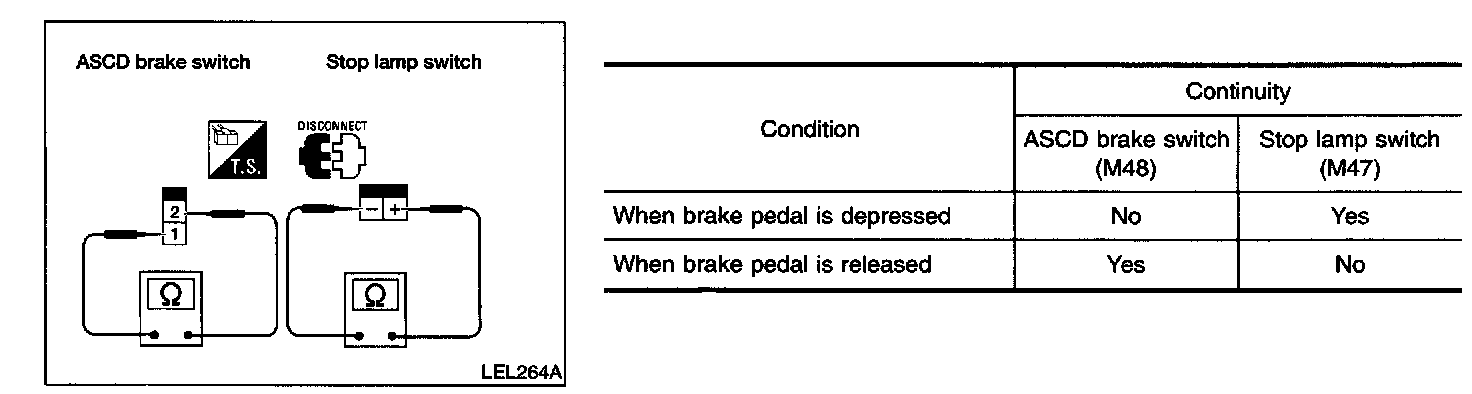

ASCD BRAKE SWITCH AND STOP LAMP SWITCH
Check brake pedal adjustment after checking each switch. Refer to "Adjustment".

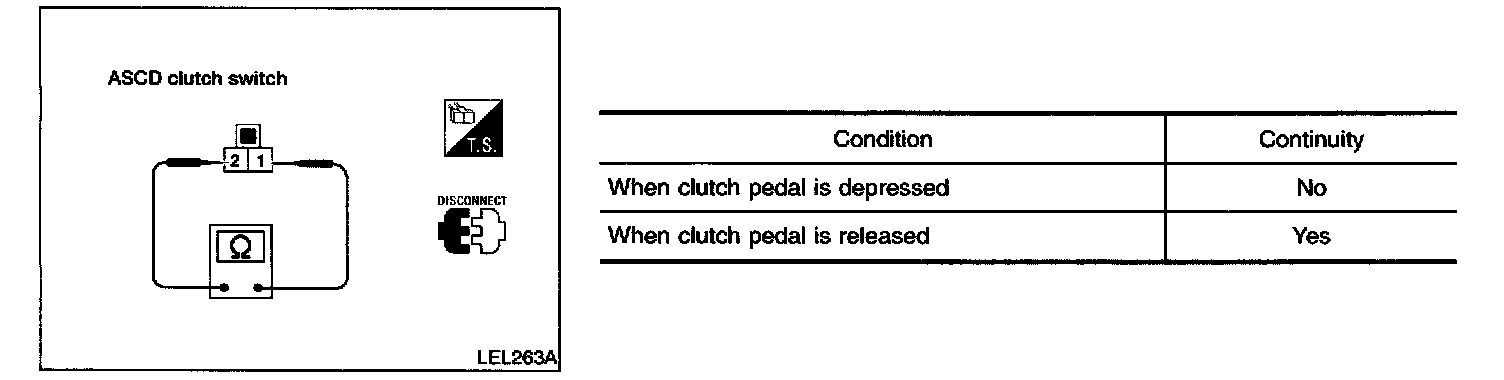

ASCD CLUTCH SWITCH (M/T)
Check continuity between ASCD clutch switch M4 terminals 1 and 2.

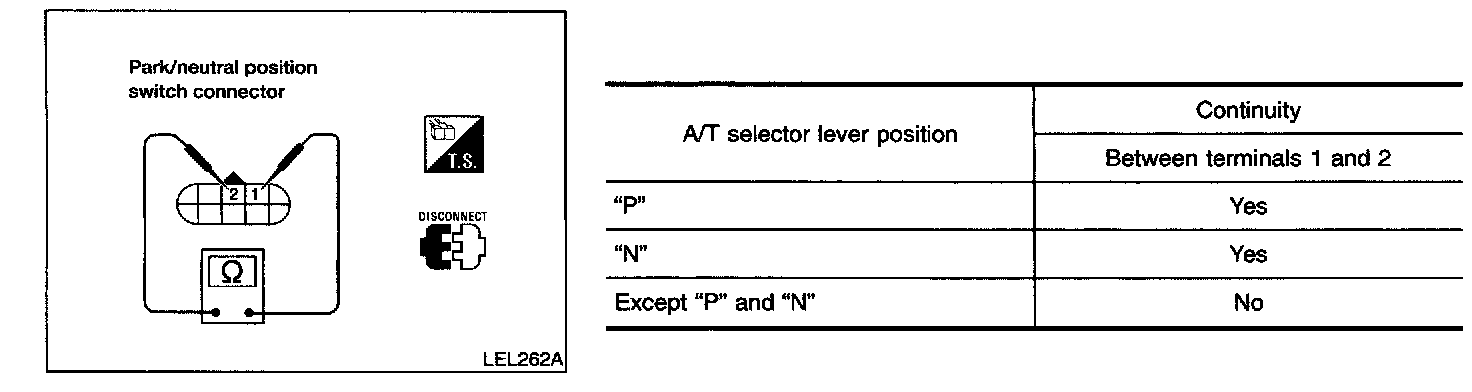

PARK/NEUTRAL POSITION SWITCH (A/T)
Check continuity between PNP switch E35 terminals 1 and 2.

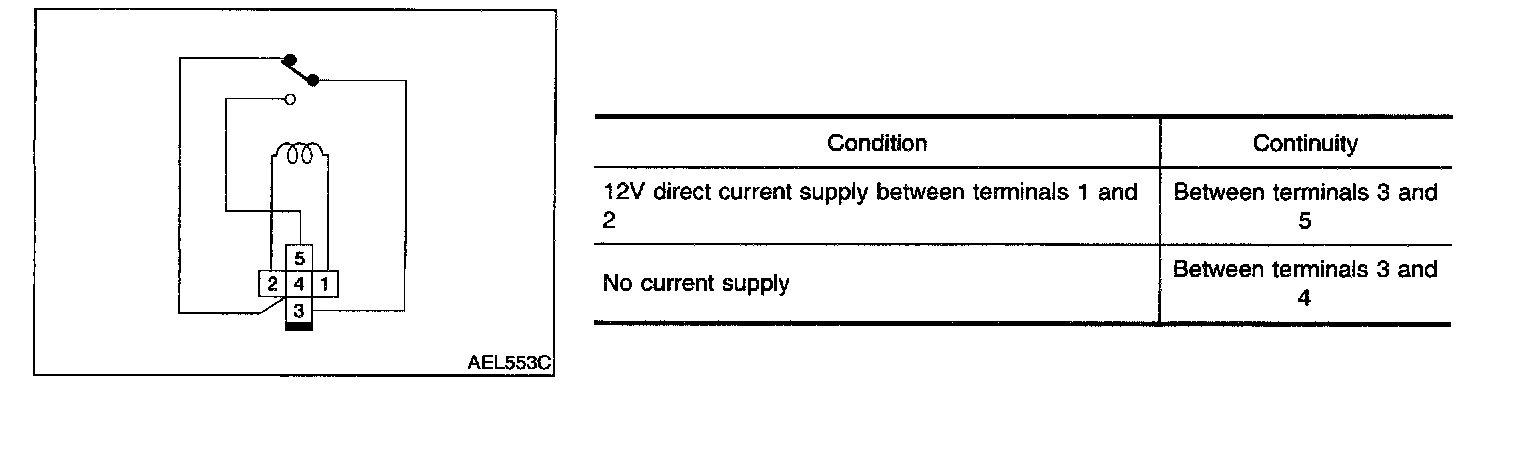

ASCD RELAY (A/T)
Check continuity between ASCD relay harness connector M128 terminals 3 and 4, 3 and 5.
