Non-Trouble Code Procedures

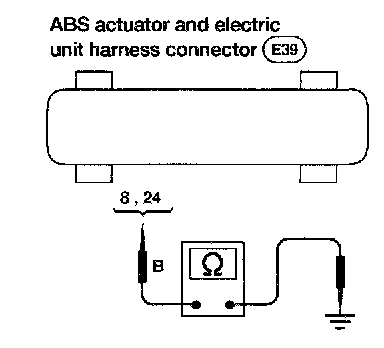

ABS ACTUATOR AND ELECTRIC UNIT GROUND





- Check continuity between ABS actuator and electric unit connector terminals and ground.
Continuity should exist.
