6. ABS Warning Lamp Does Not Come On When Ignition Switch Is On

6. Warning Lamp Does Not Come On When Ignition Switch Is Turned ON

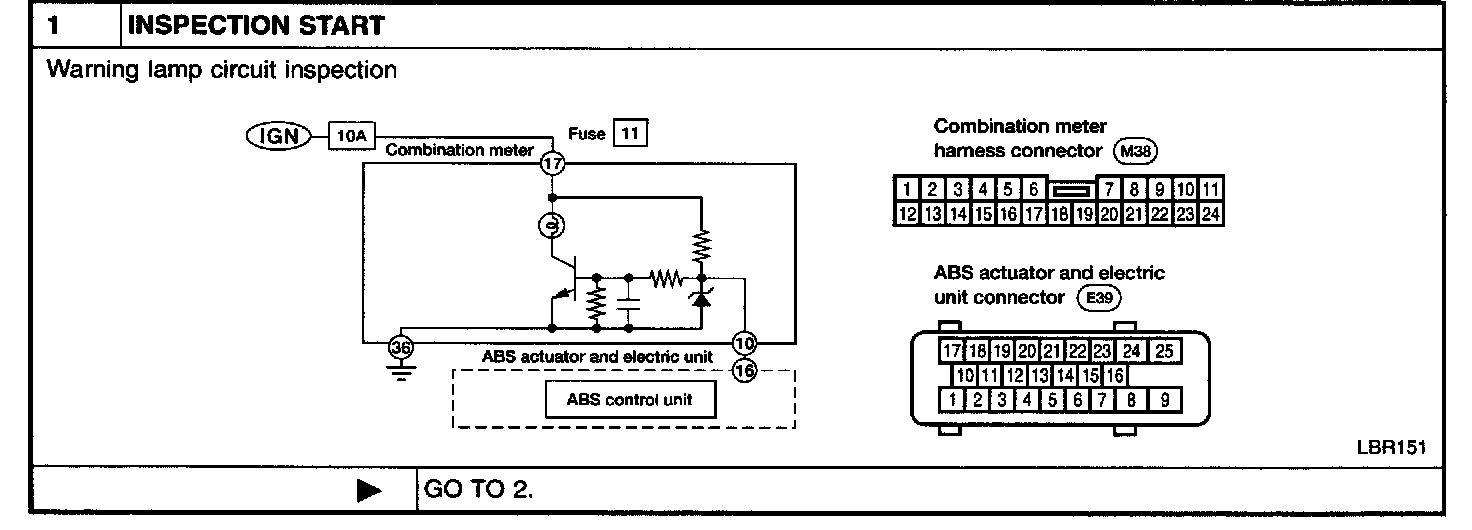

INSPECTION START

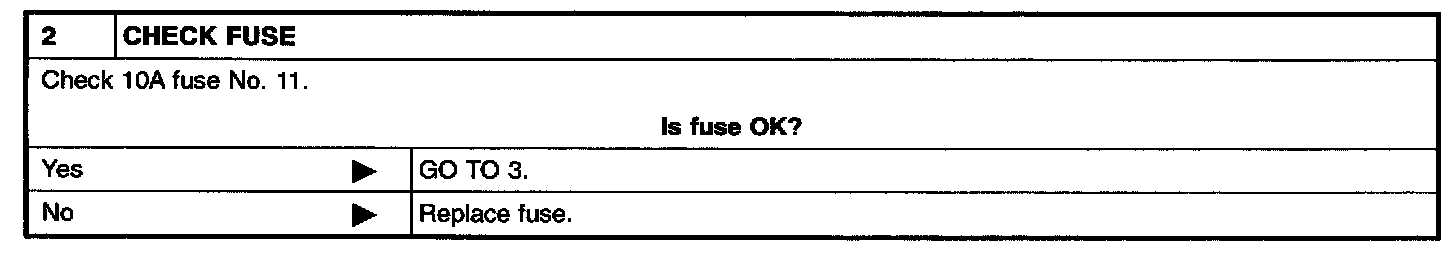

CHECK FUSE

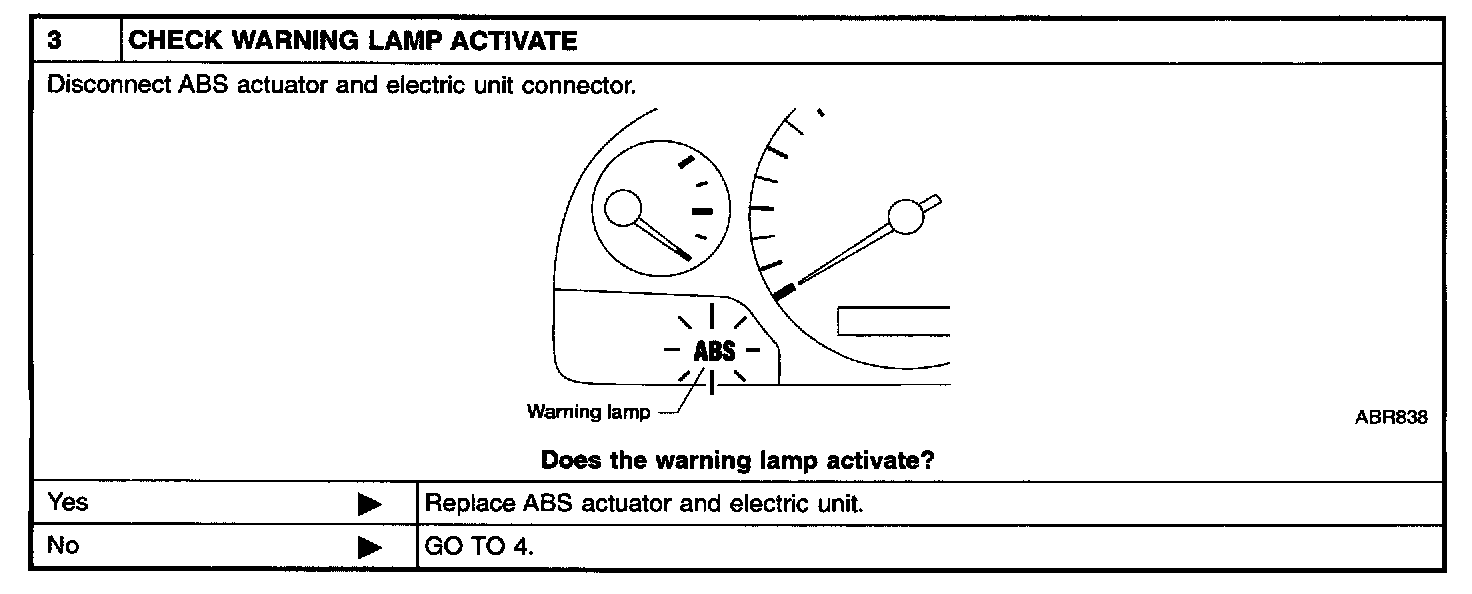

CHECK WARNING LAMP ACTIVATE

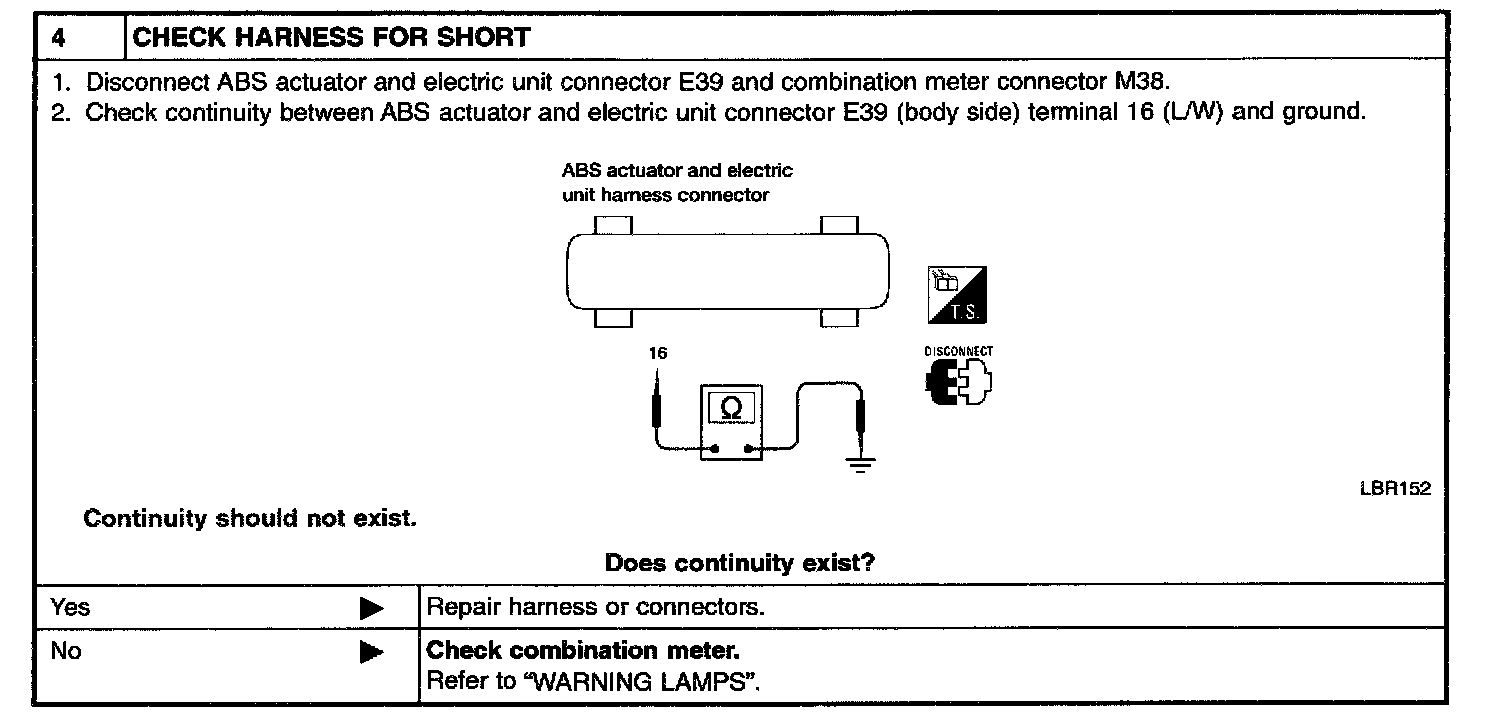

CHECK HARNESS FOR SHORT
