Body - Roof Rack Decal Peeling: Overview

Classification:
BT02-047

Reference:
NTB03-003

Date:
January 8, 2003

2001-2002 XTERRA AND CREW CAB FRONTIER; ROOF RACK DECAL REPLACEMENT

APPLIED VEHICLES:
2001-2002 Xterra (WD22)
2001-2002 Frontier (D22) - Crew Cab ONLY

IF YOU CONFIRM:

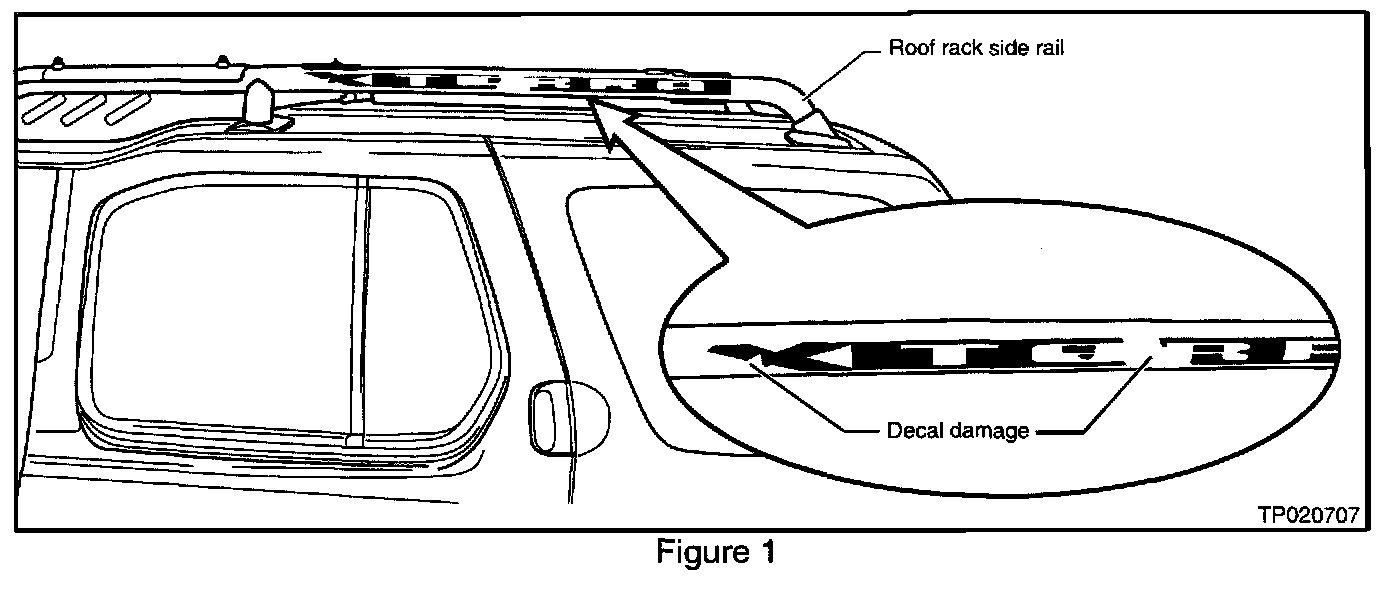

A roof rack side rail decal is torn or peeling (see Figure 1),

ACTIONS:

^ Use a heat gun to carefully remove the damaged decal.

^ Clean the side rail surface and apply a new decal. See the PARTS INFORMATION section for detail.

IMPORTANT:
The purpose of ACTIONS (above) is to give you a quick idea of the work you will be performing. You MUST closely follow the entire Service Procedure as it contains information that is essential to successfully completing this repair.

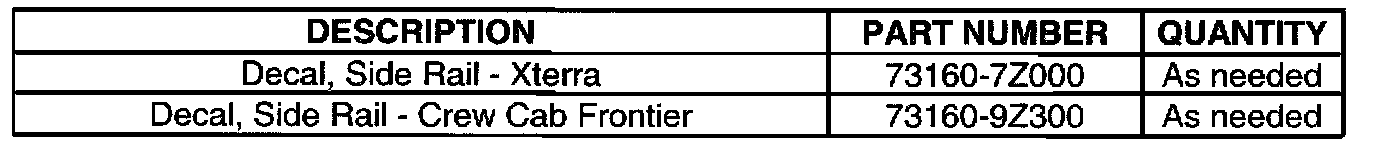

PARTS INFORMATION

CLAIMS INFORMATION





Submit a Primary Failed Part (PP) line claim using the claims coding table.
