Trunk / Liftgate: Service and Repair

Removal and Installation
- Adjustment: Adjust at hinge portion for proper fit.
- Lock system adjustment: Adjust striker so that it is in the center of the lock. After adjustment, check trunk lid lock operation.
- After installation, make sure that rear gate opens smoothly.

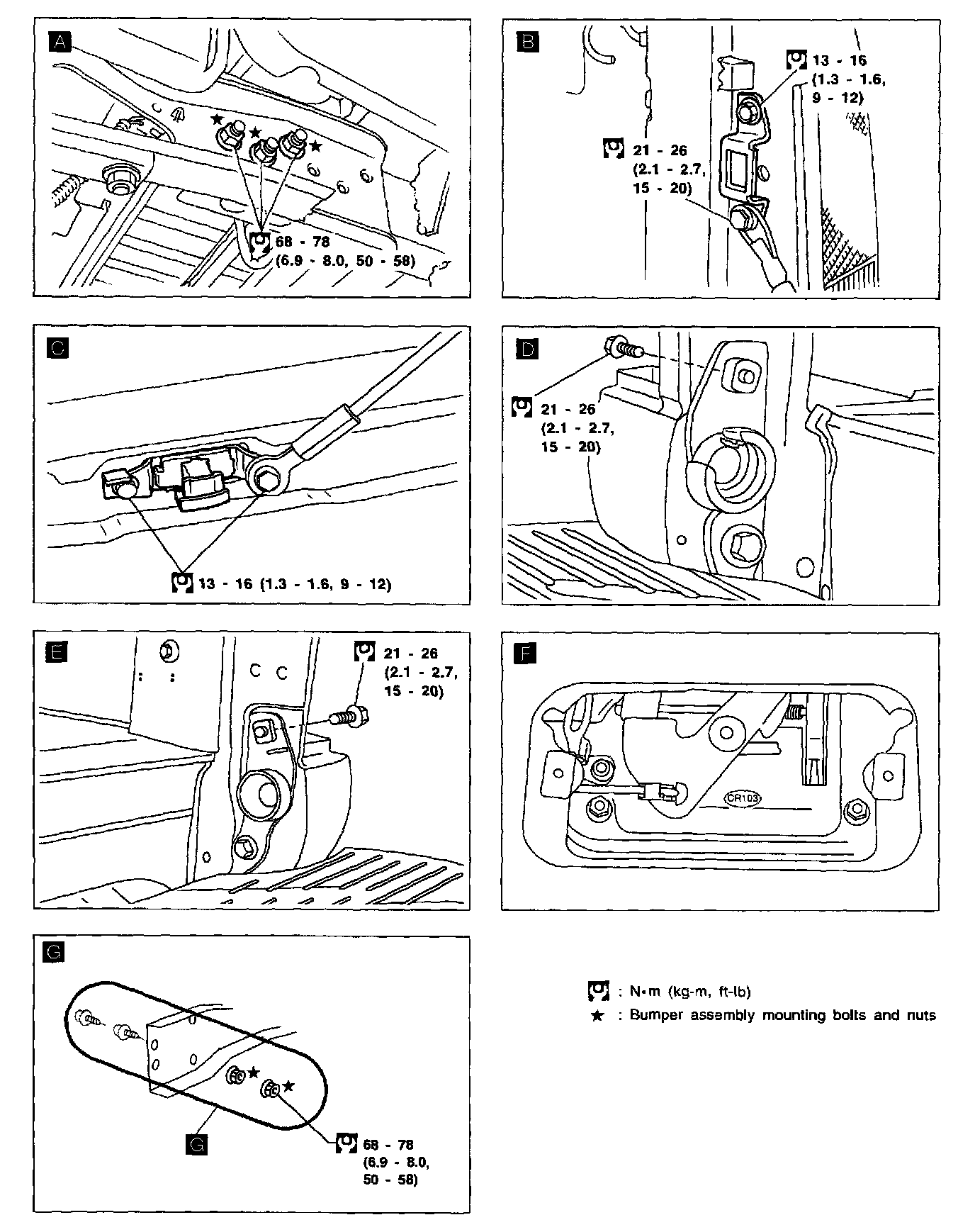

Part 1:

Part 2:

REAR BUMPER ASSEMBLY
Remove connectors securing license plate lamps.
1. Remove nuts securing bumper side stay. A or G
2. Remove bumper assembly.
