Home >> Nissan-Datsun Truck >> 2001 >> Frontier XE Crew Cab 4WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Antitheft Lighting Relay >> Locations

Antitheft Lighting Relay: Locations

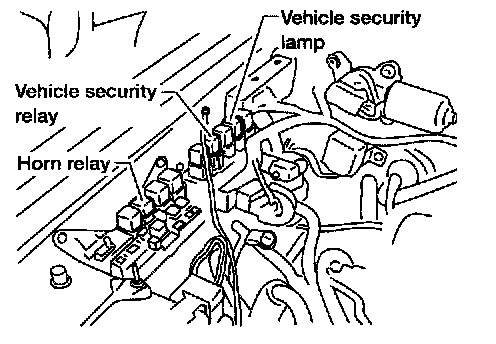

Vehicle Security Lamp, Vehicle Security Relay, Horn Relay:



Component Locations Overview:

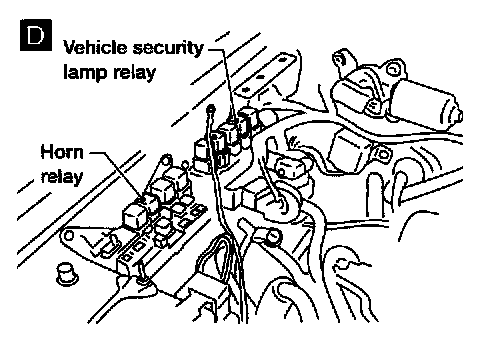

Component View D:



Engine Compartment:
