Control Unit

Control Unit
MALFUNCTION CODE NO. 71

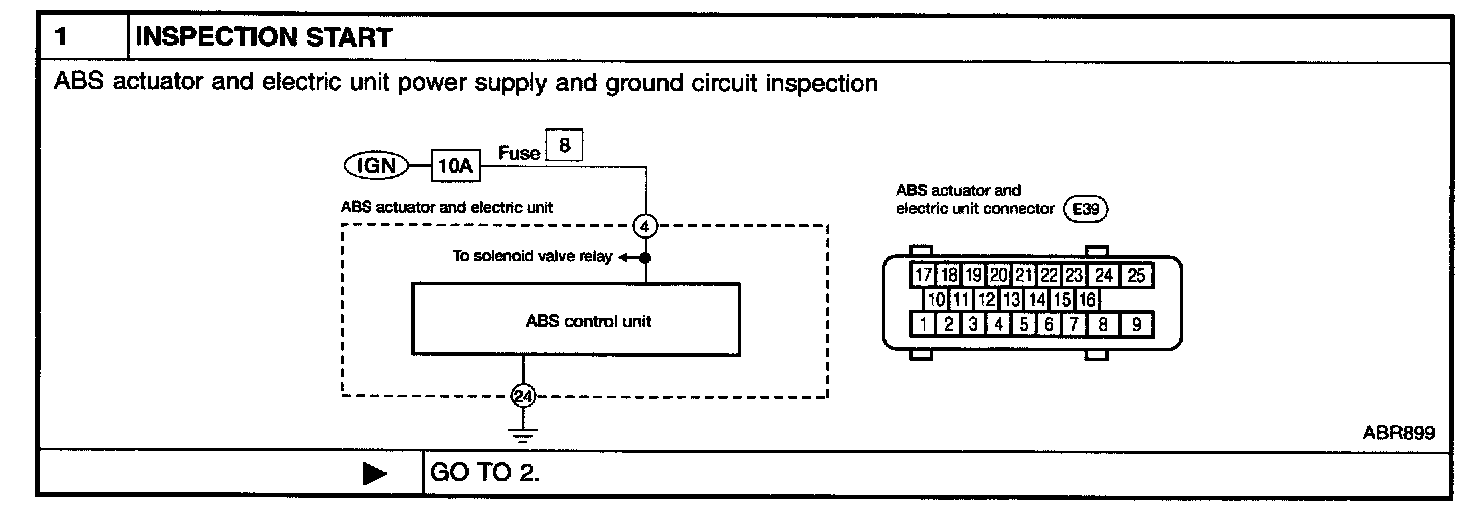

INSPECTION START

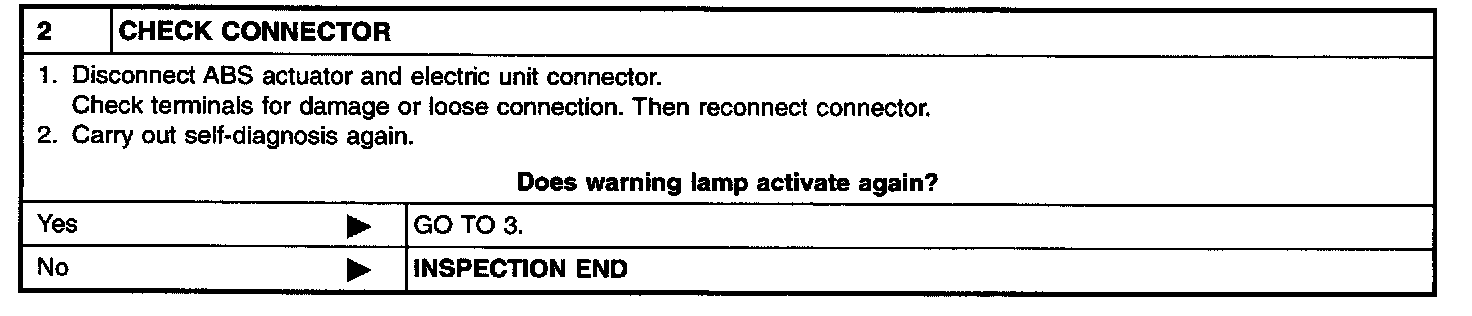

CHECK CONNECTOR

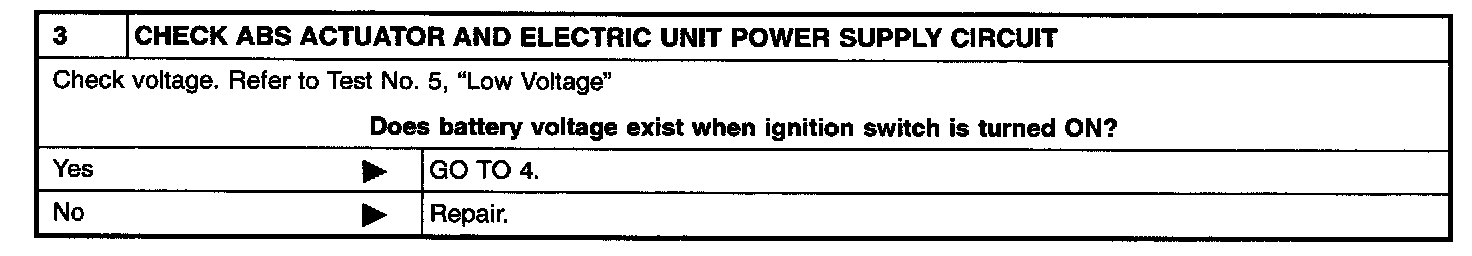

CHECK ABS ACTUATOR AND ELECTRIC UNIT POWER SUPPLY CIRCUIT

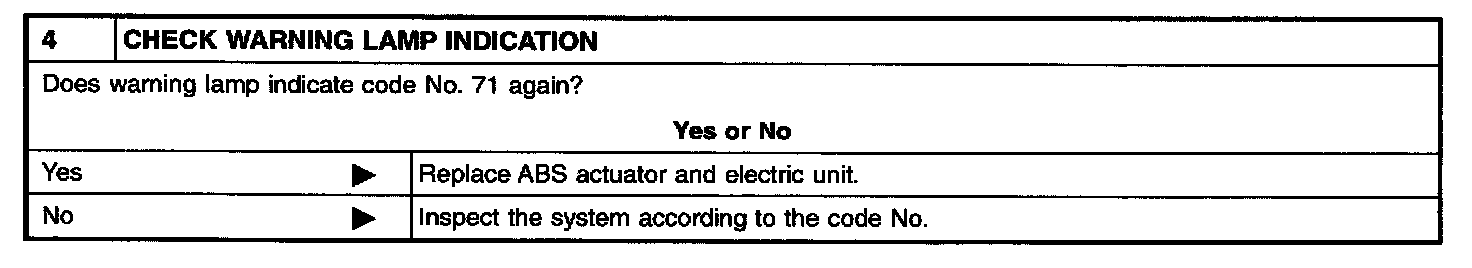

CHECK WARNING LAMP INDICATION
