DTC 57

Low Voltage
MALFUNCTION CODE NO. 57

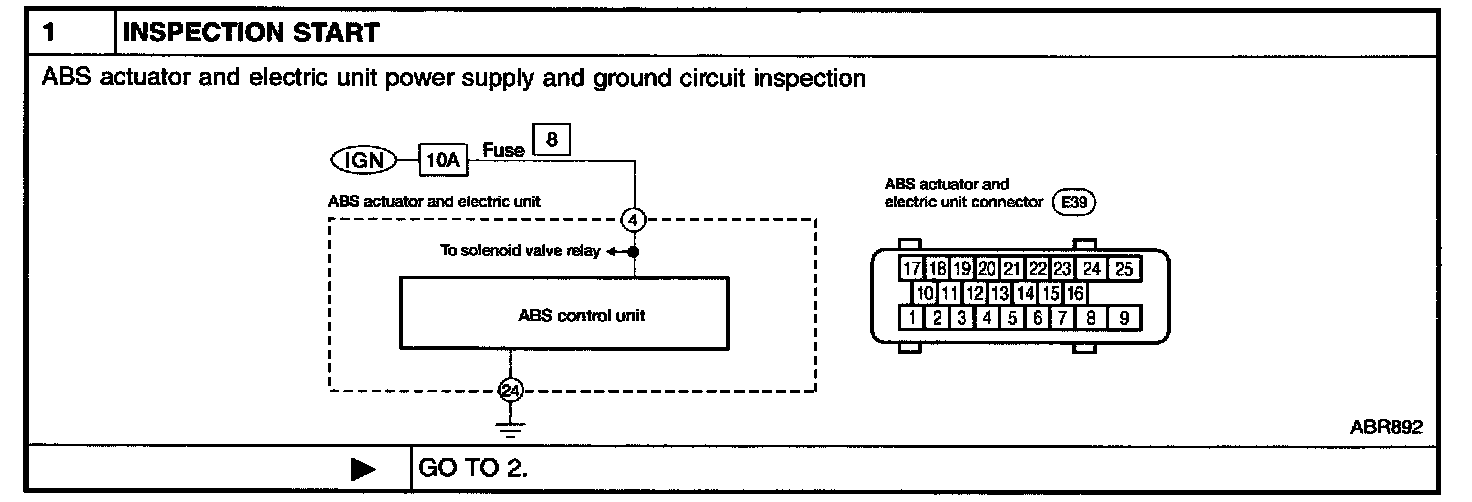

INSPECTION START

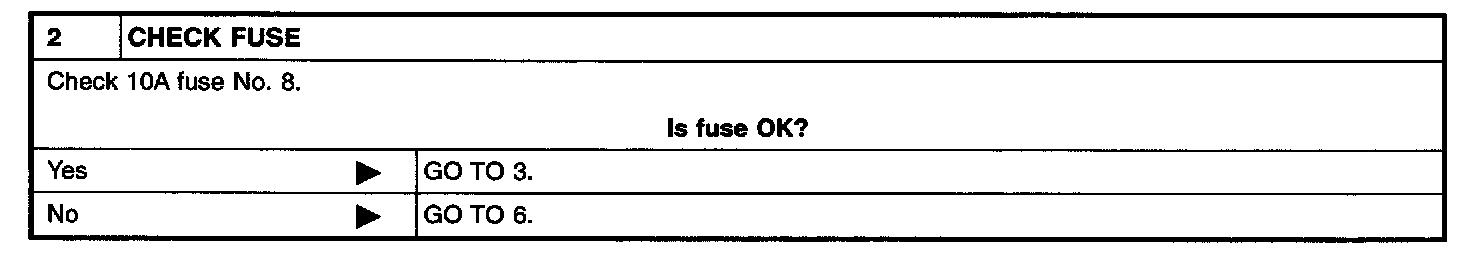

CHECK FUSE

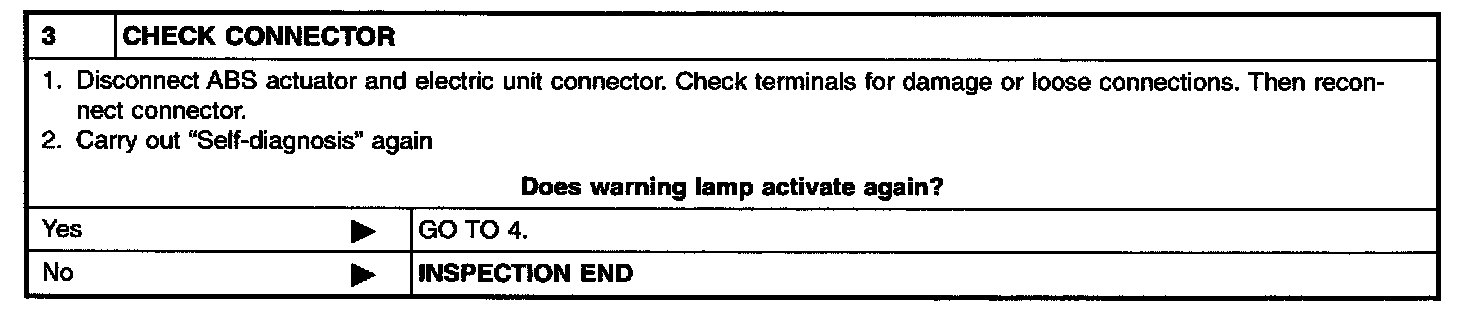

CHECK CONNECTOR

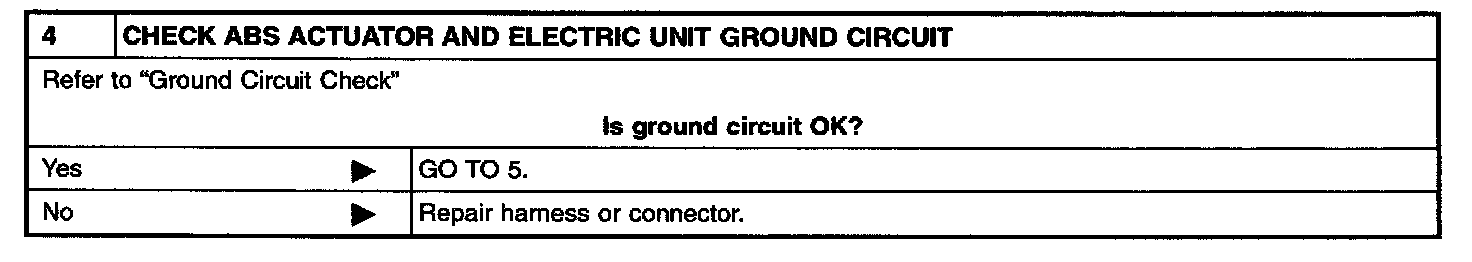

CHECK ABS ACTUATOR AND ELECTRIC UNIT GROUND CIRCUIT

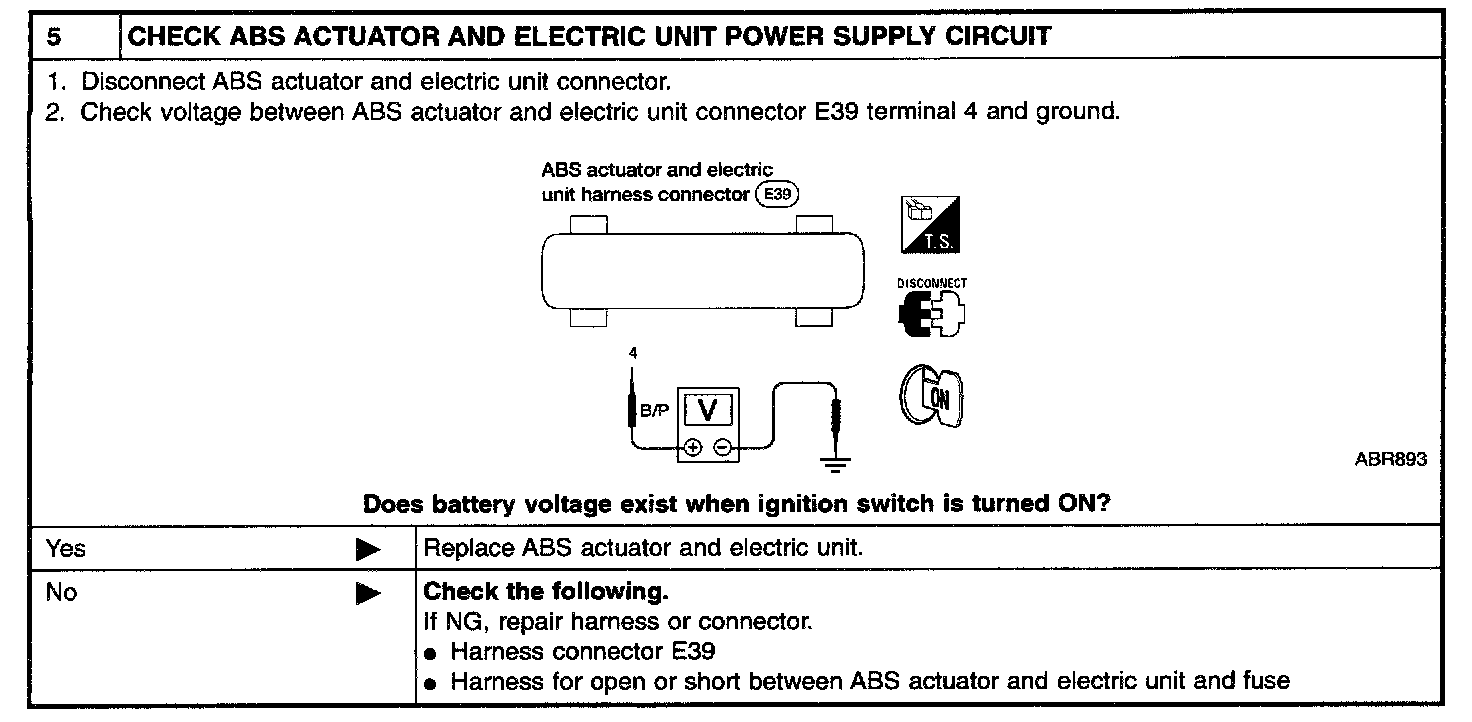

CHECK ABS ACTUATOR AND ELECTRIC UNIT POWER SUPPLY CIRCUIT

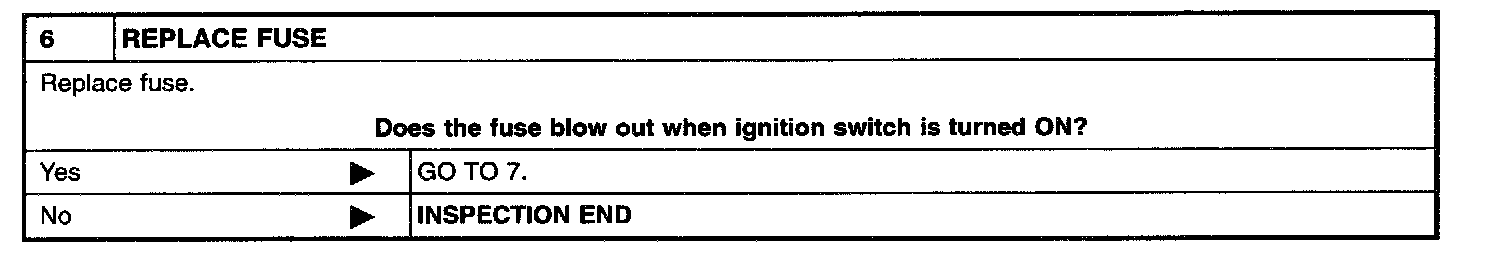

REPLACE FUSE

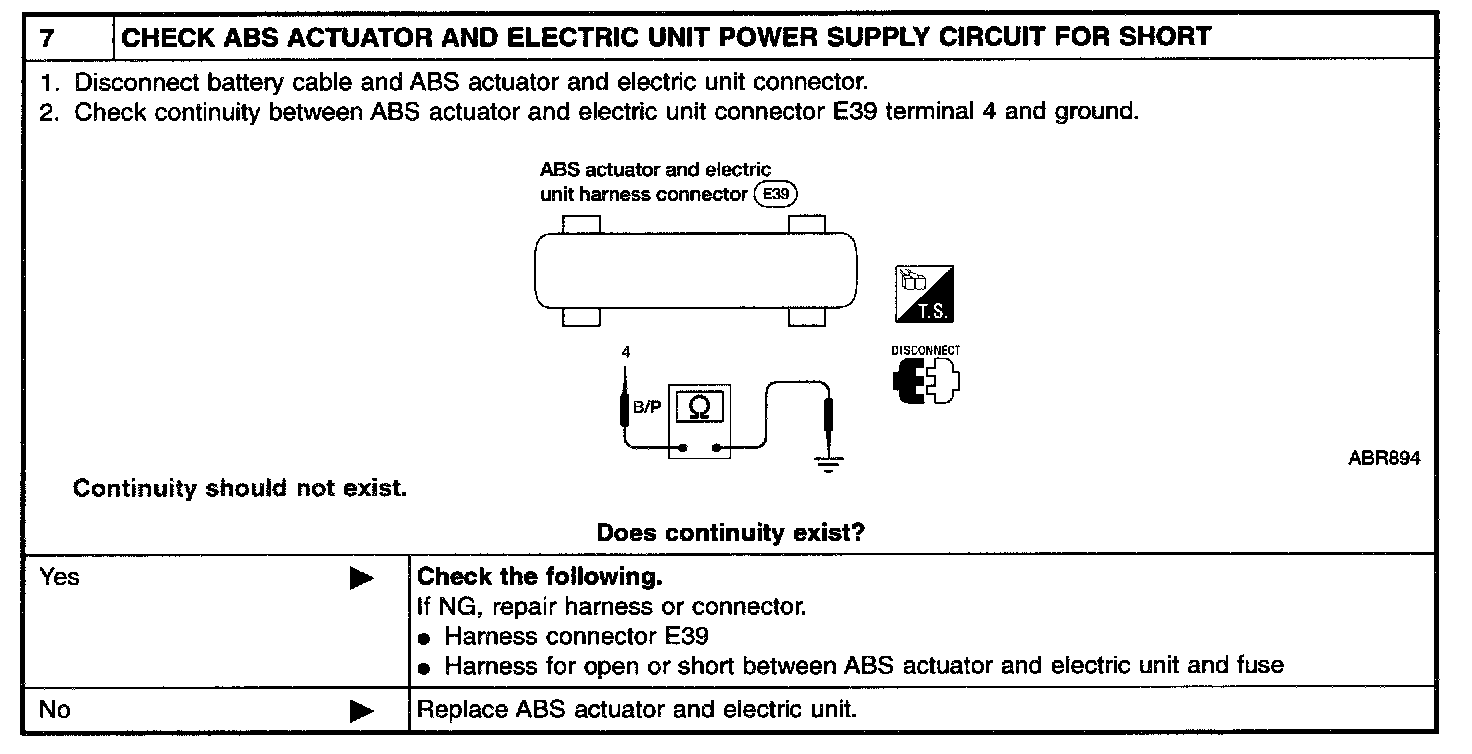

CHECK ABS ACTUATOR AND ELECTRIC UNIT POWER SUPPLY CIRCUIT FOR SHORT
