Passenger Air Bag Deactivation Switch Indicator

REMOVAL
- Before servicing SRS, turn ignition switch OFF, disconnect both battery cables and wait for at least 3 minutes.




1. Remove meter cover. Refer to "Removal and Installation".

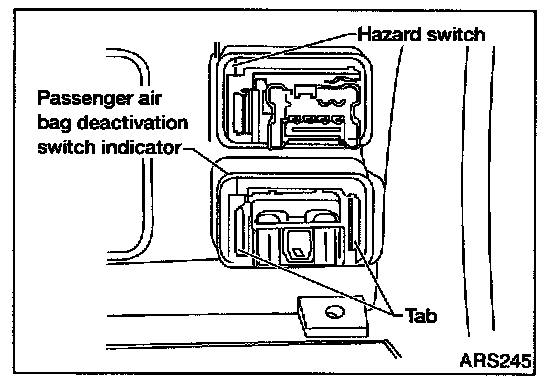

2. Release passenger air bag deactivation switch indicator tabs from back side of meter cover.
3. Remove passenger air bag deactivation switch indicator from front side of meter cover.

INSTALLATION

NOTE:
- To install, reverse removal procedure.
- After replacement, perform self-diagnosis for SRS. Refer to "SRS Operation check". [1][2]Component Tests and General Diagnostics
