Nissan-Datsun Truck
>>
2001
>>
Frontier XE Crew Cab 2WD V6-3.3L (VG33E)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Component Tests
>>
Start Signal
Start Signal

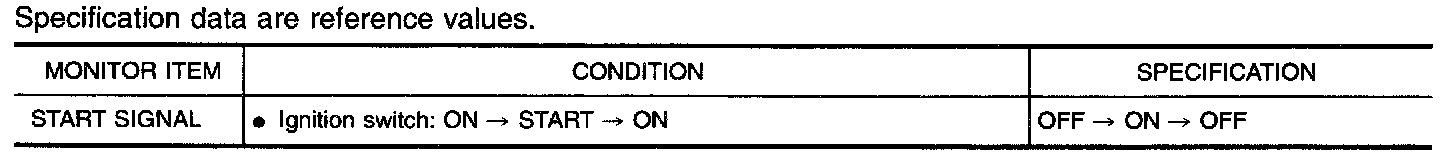

Consult-II Reference Value In Data Monitor Mode:

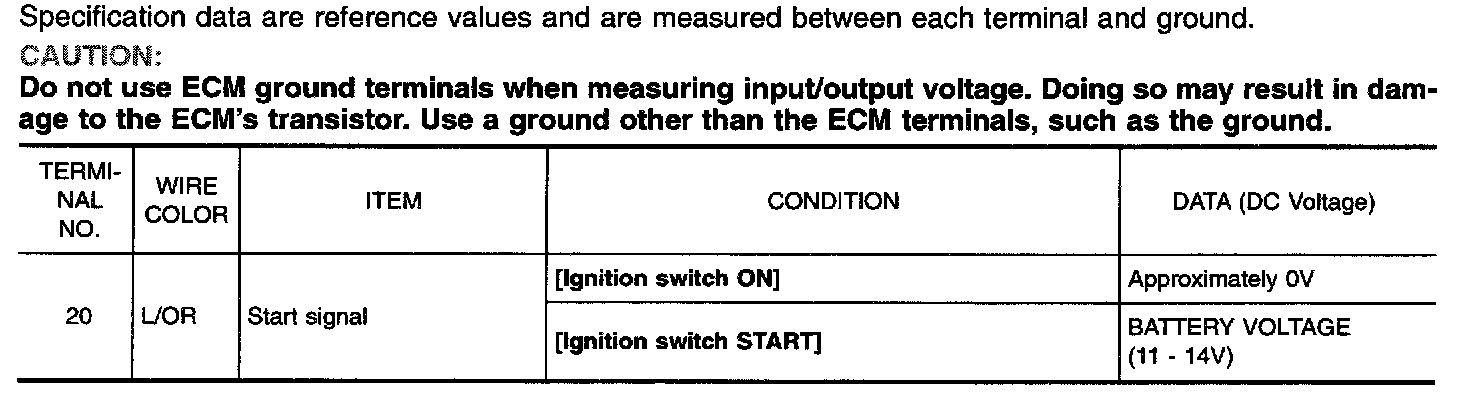

ECM Terminals And Reference Value:
EC-S/SIG-01:

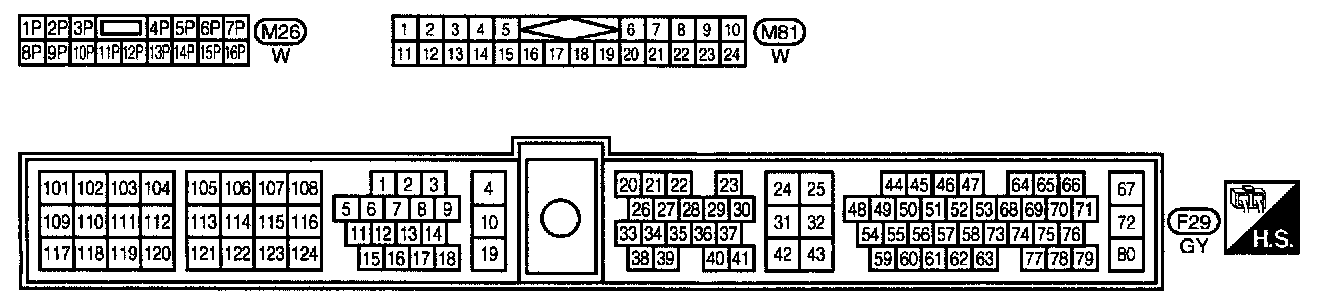

EC-S/SIG-01 Connector View:

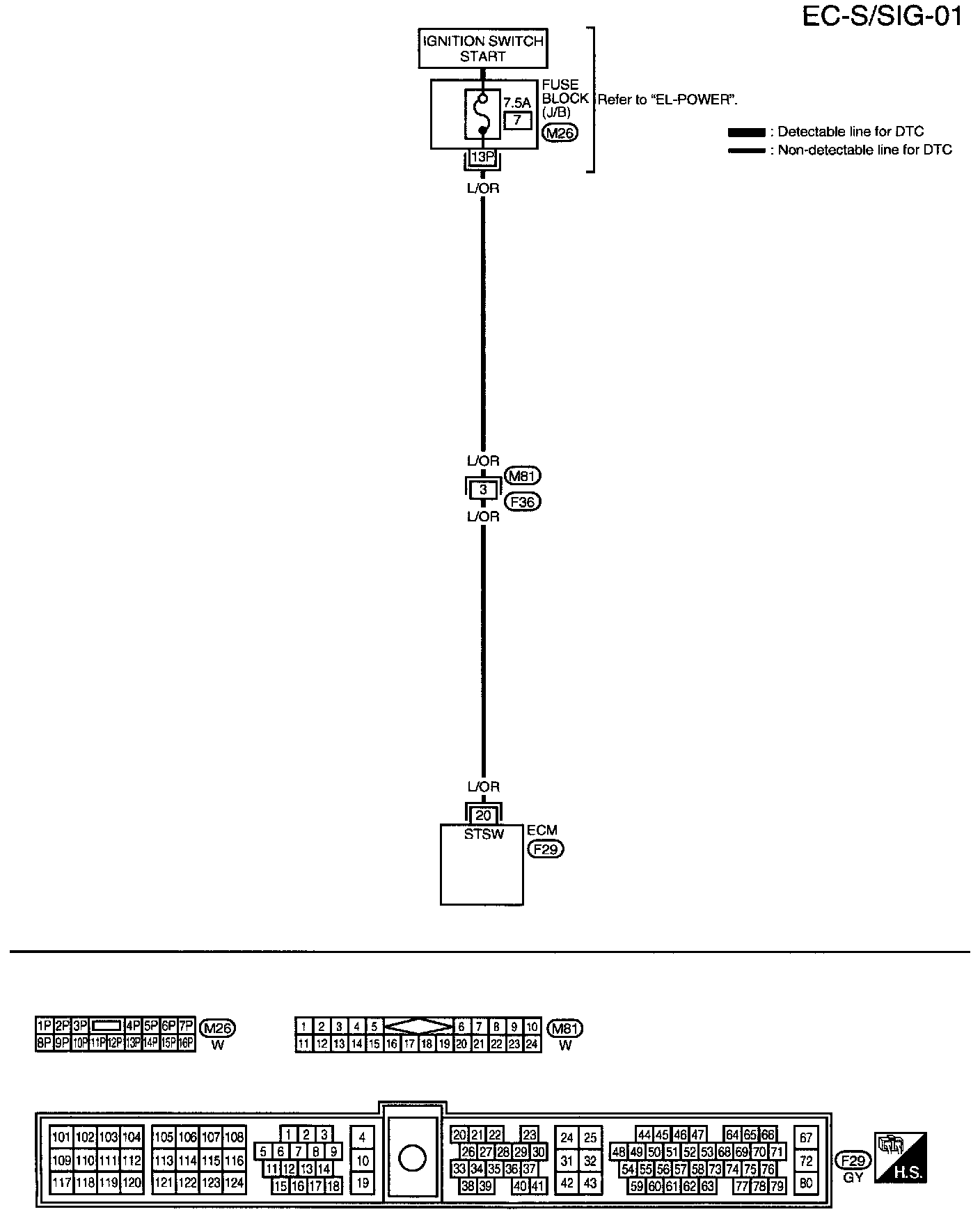

WIRING DIAGRAM

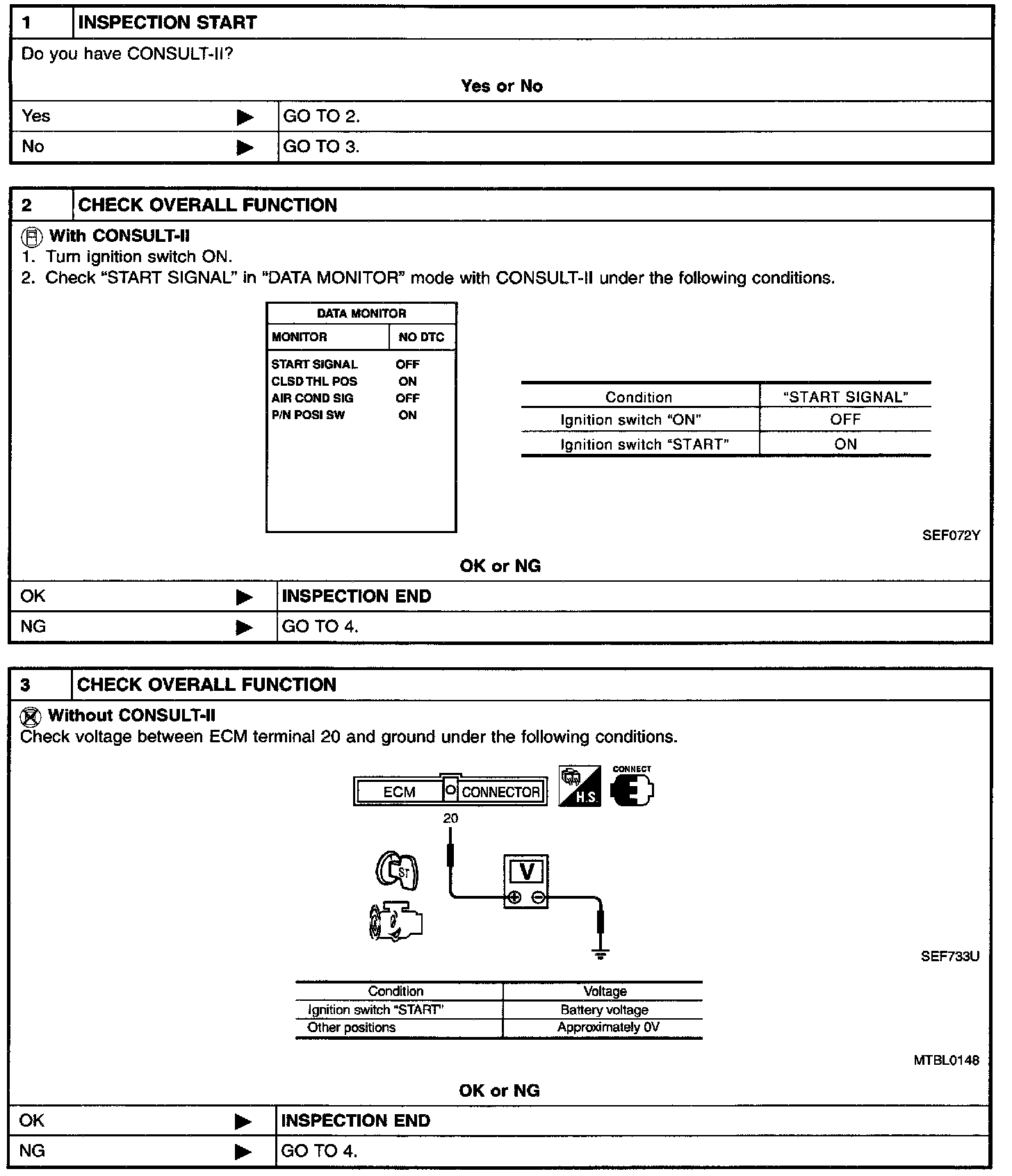

Steps 1 - 3:

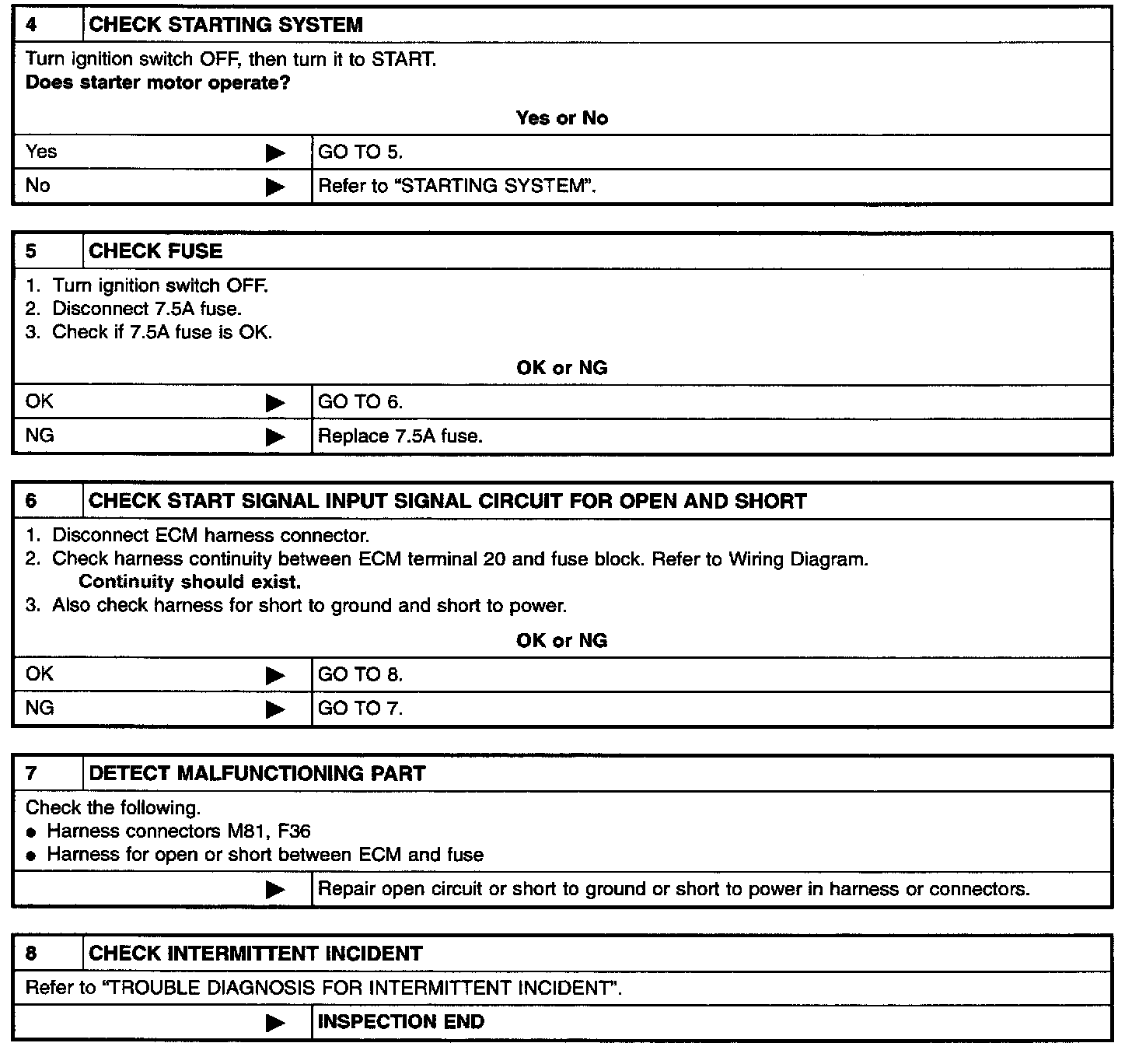

Steps 4 - 8:
DIAGNOSTIC PROCEDURE
