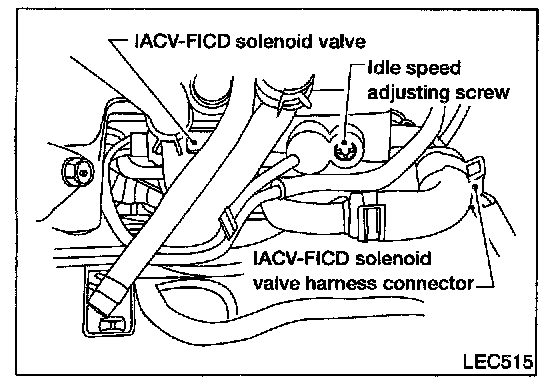

IACV-FICD Solenoid Valve

COMPONENT DESCRIPTION
When the air conditioner is on, the IACV-FICD solenoid valve supplies additional air to adjust to the increased load. For more information, refer to "FAST IDLE CONTROL DEVICE (FICD)".

ECM Terminals And Reference Value:

EC-FICD-01:

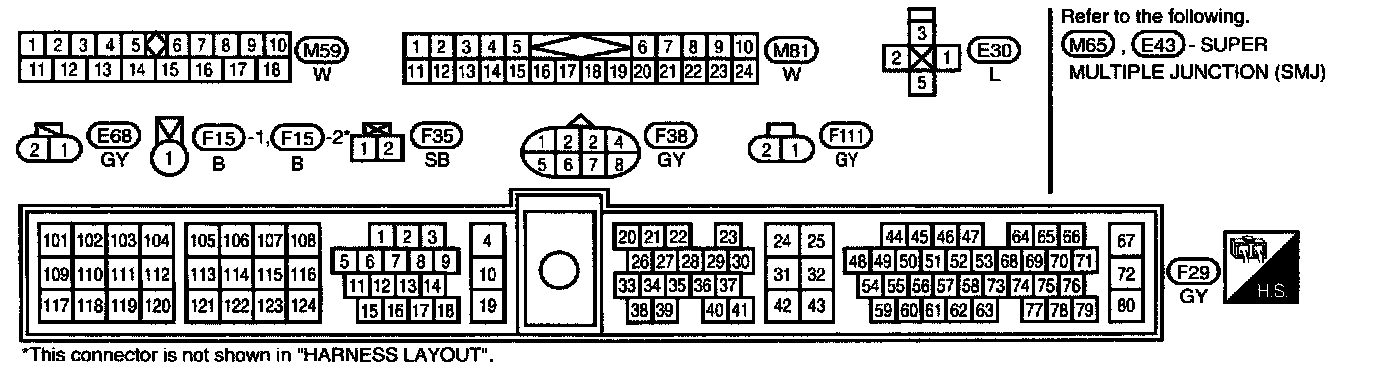

EC-FICD-01 Connector View:

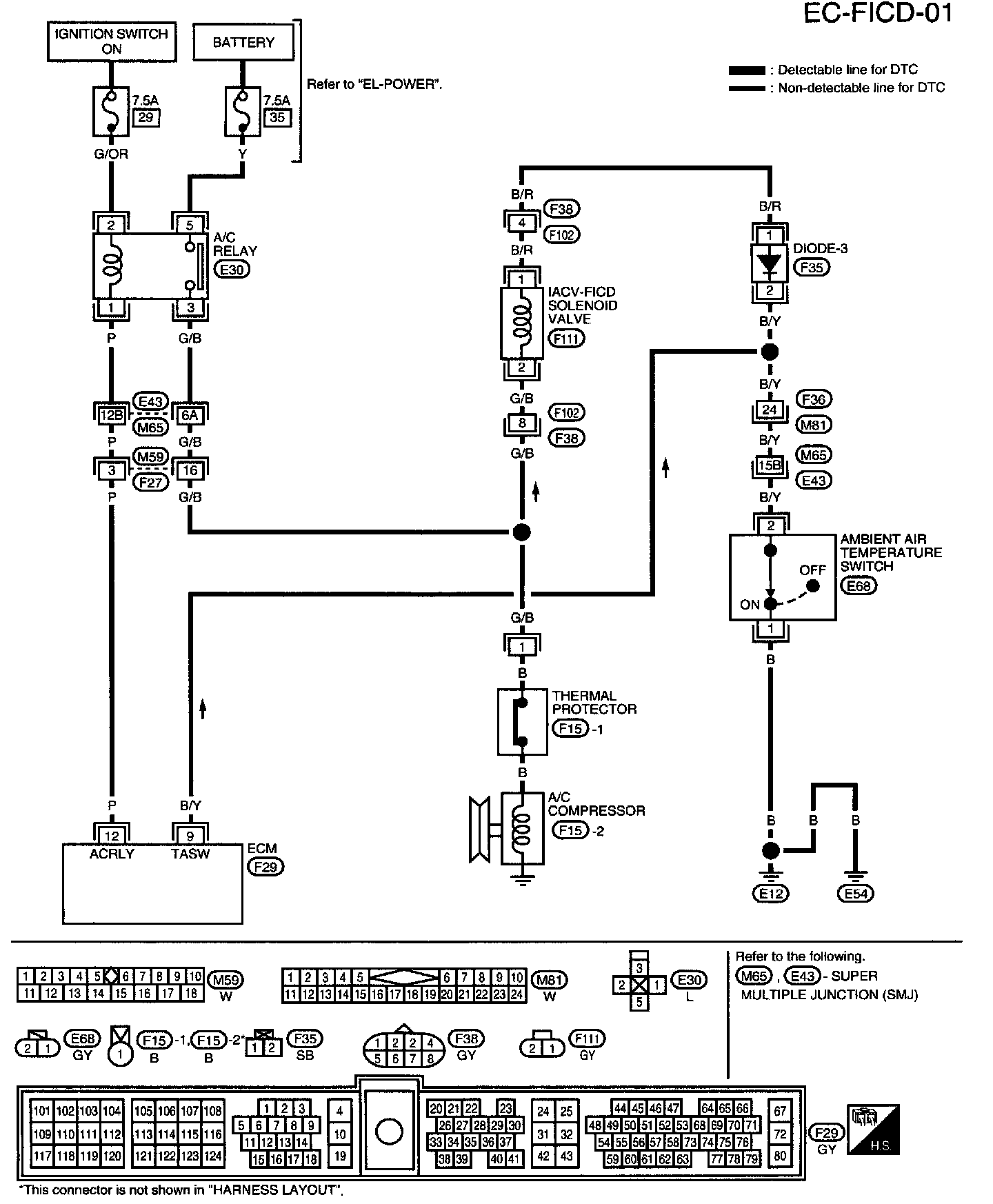

WIRING DIAGRAM

Super Multiple Junction (SMJ) - Terminal Arrangement:

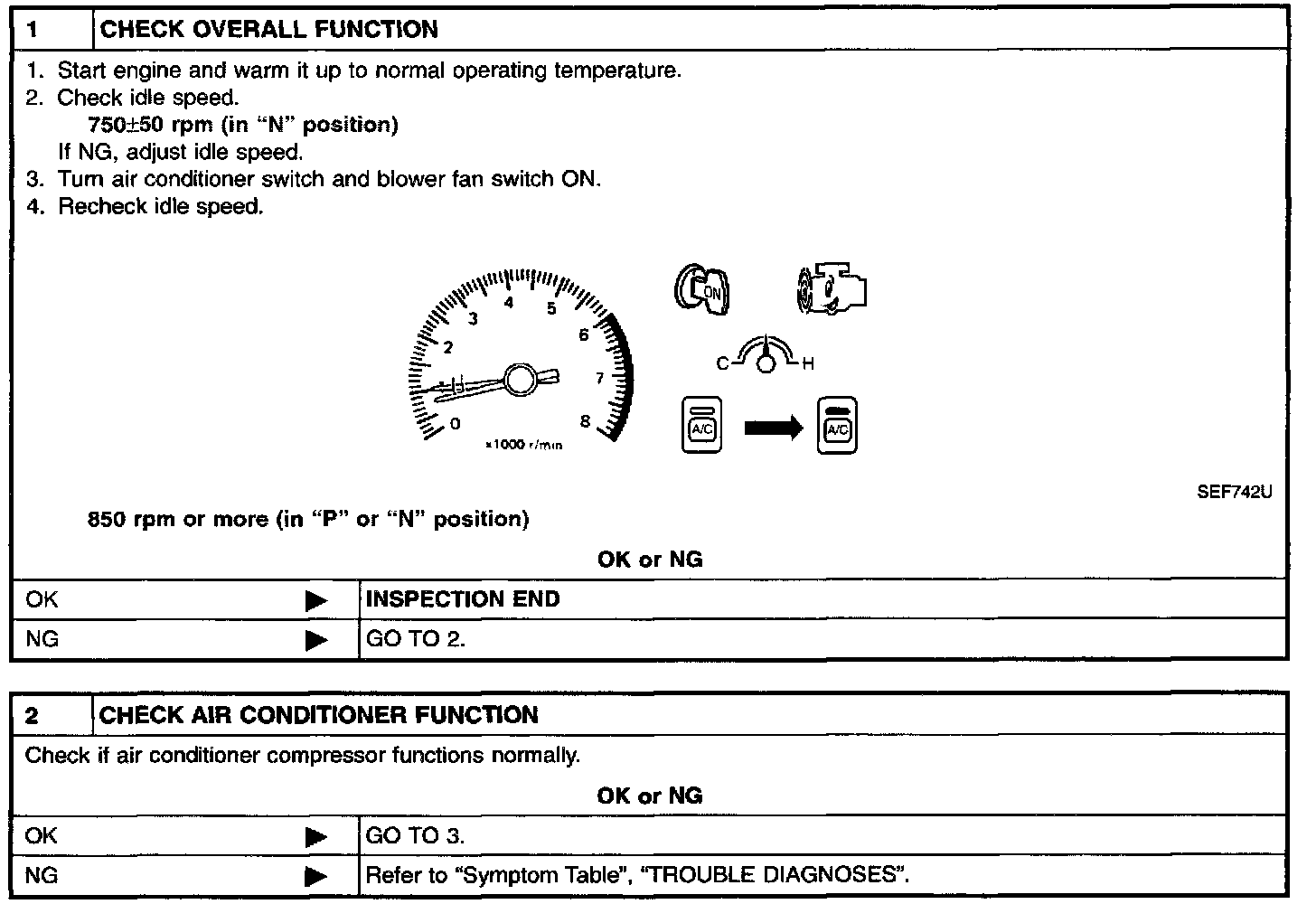

Steps 1 - 2:

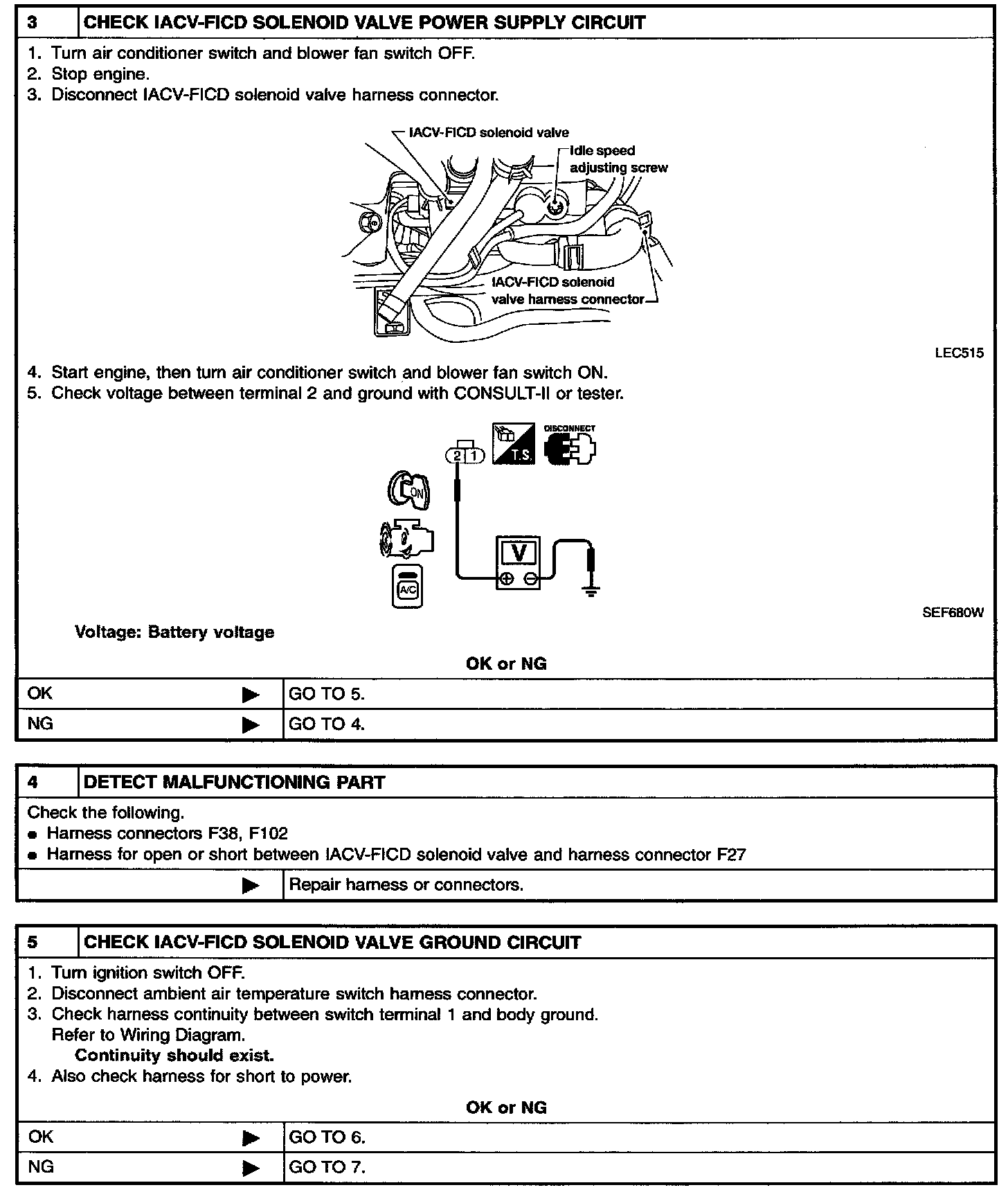

Steps 3 - 5:

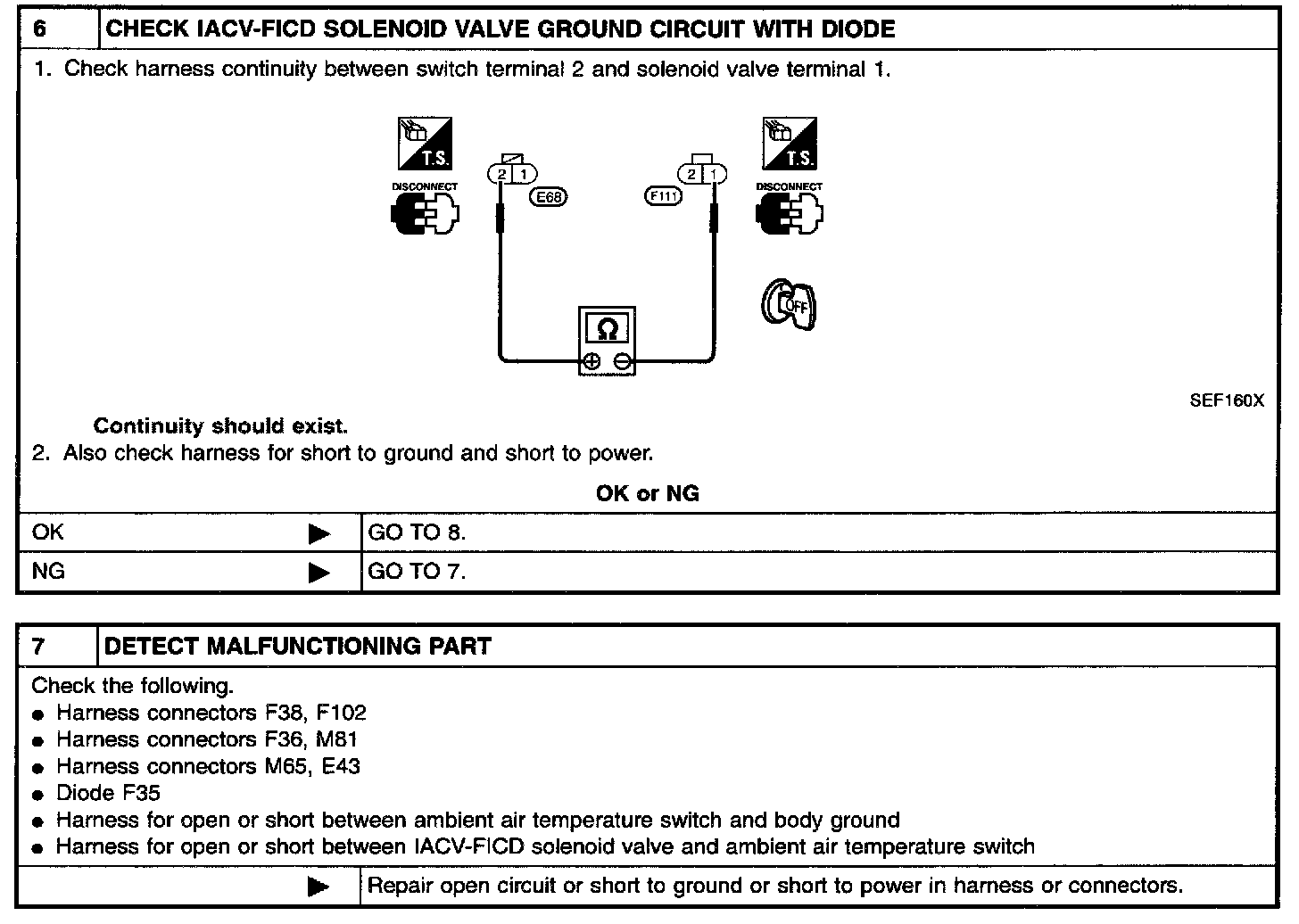

Steps 6 - 7:

Steps 8 - 9:

DIAGNOSTIC PROCEDURE
