Home >> Nissan-Datsun Truck >> 2001 >> Frontier XE Crew Cab 2WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> BRC Diagrams (Brake Control System)

BRC Diagrams (Brake Control System)

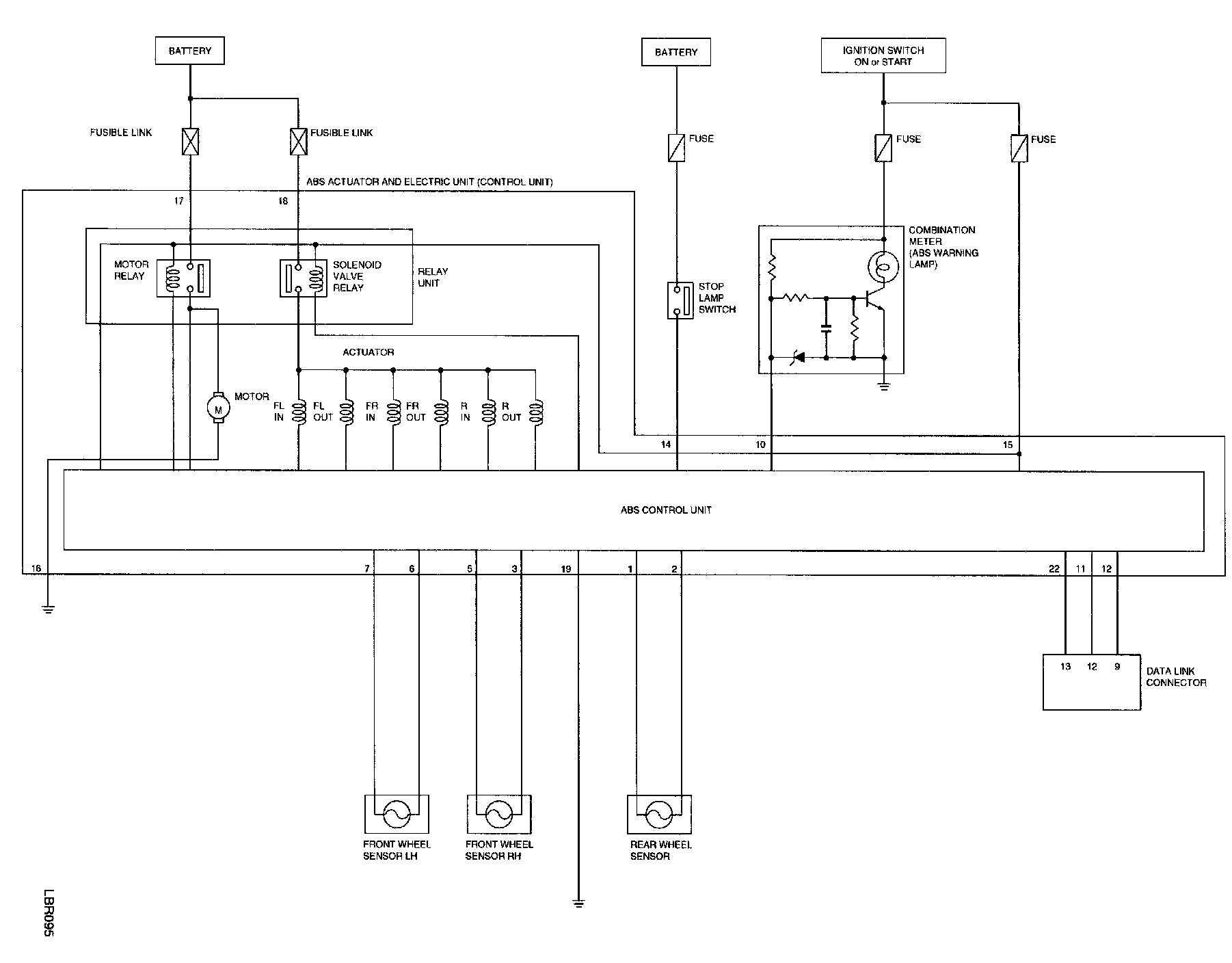

Schematic

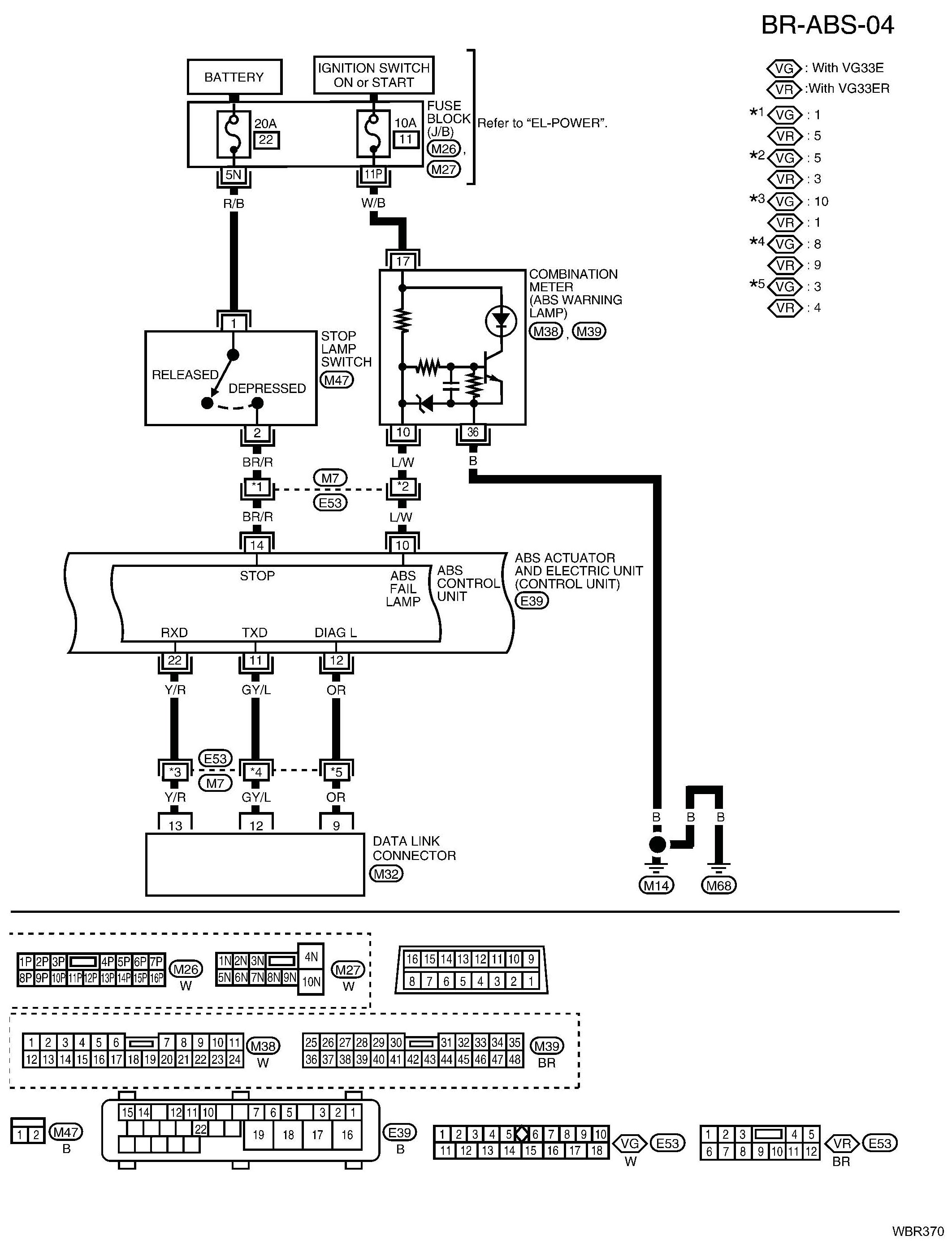

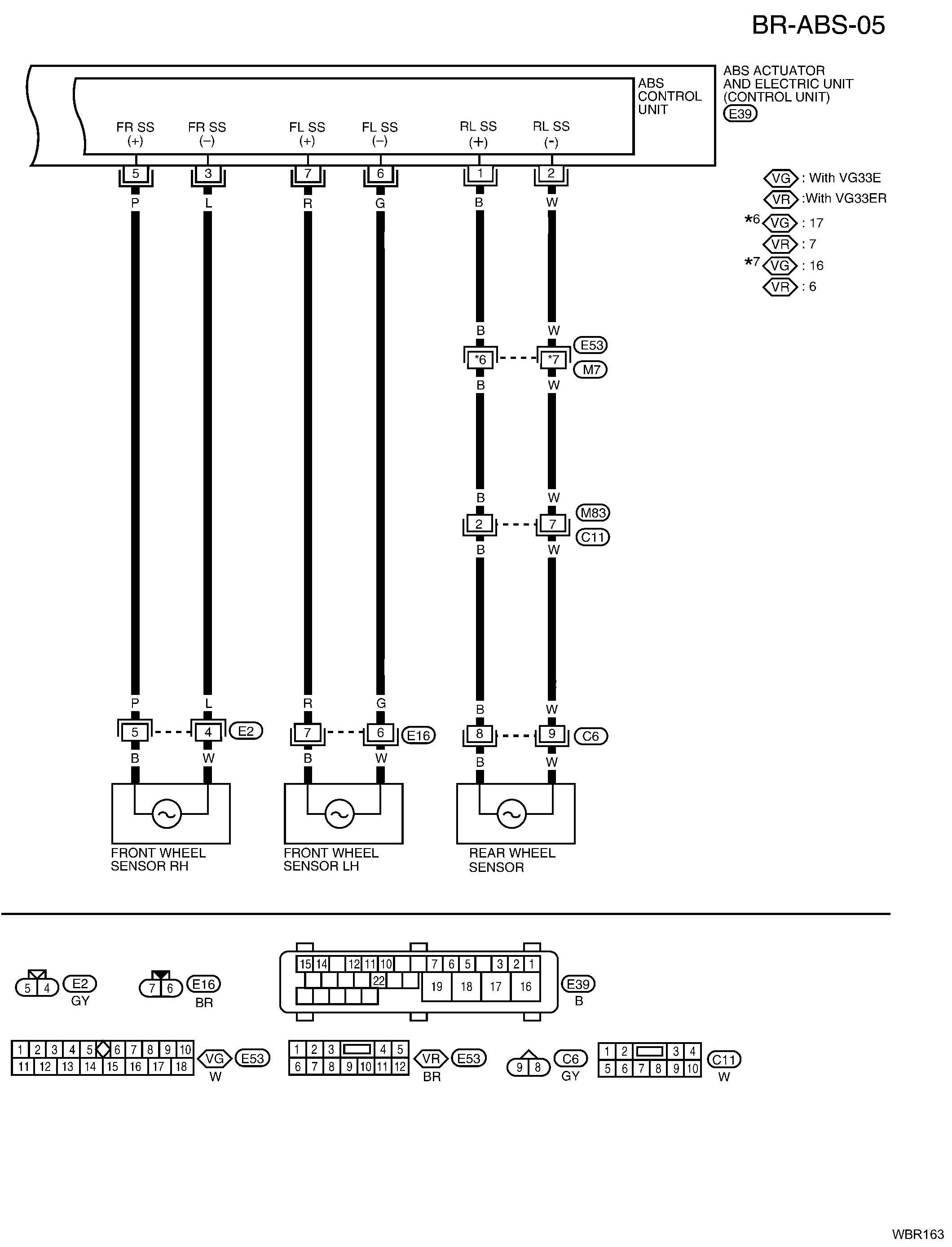

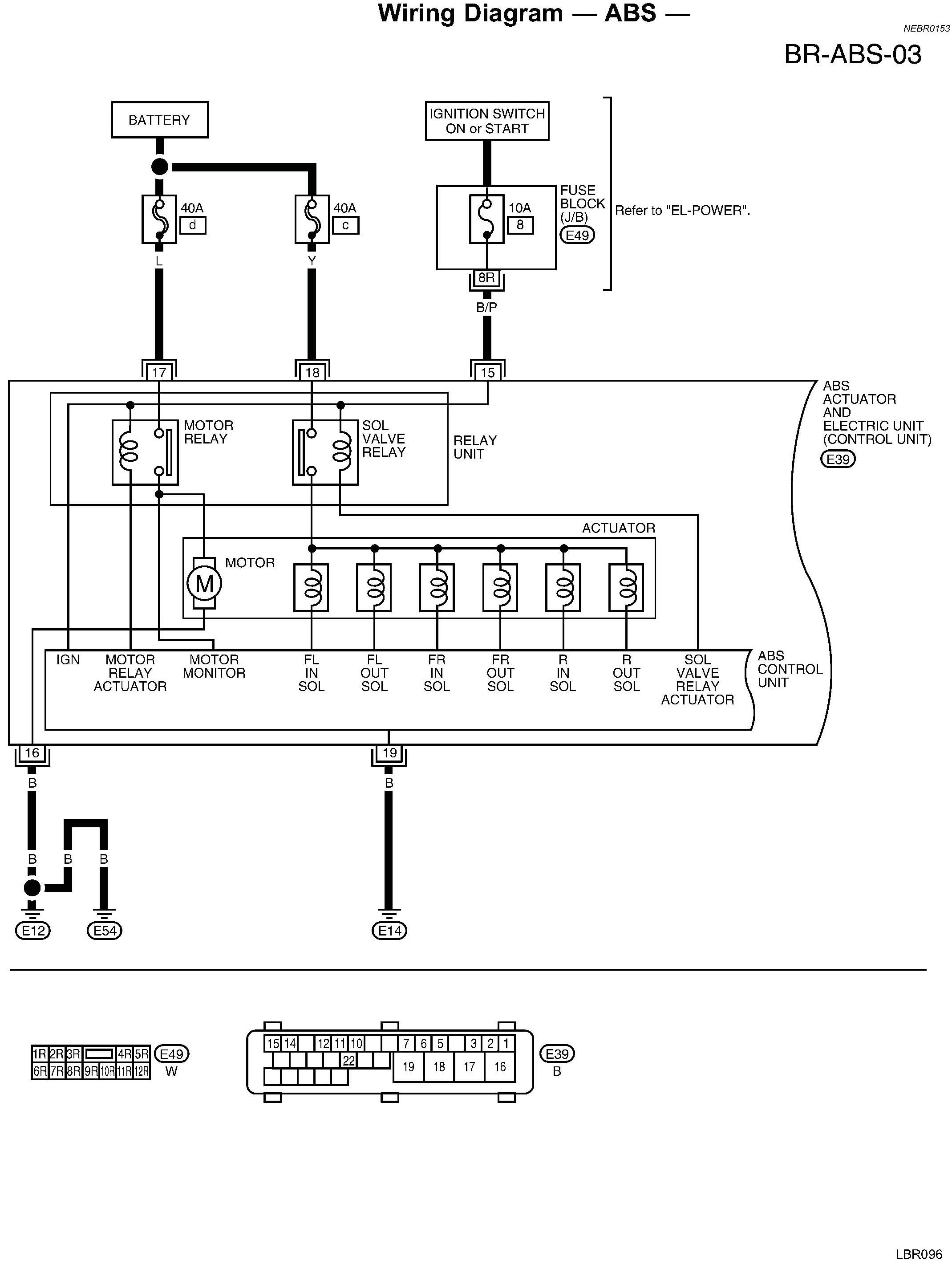

Wiring Diagram
