Side and Floor Trim

Part 1:

Part 2:

Removal and Installation

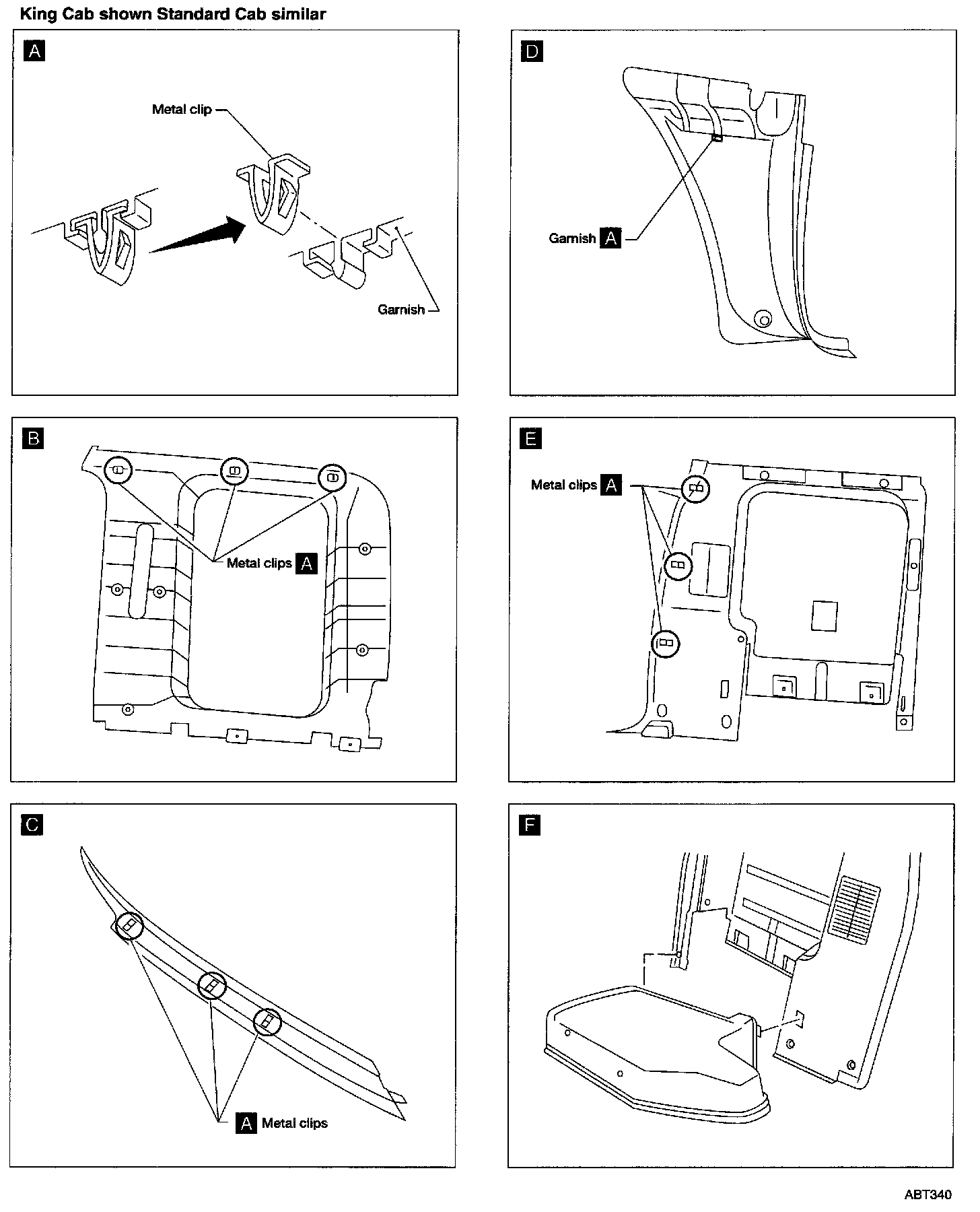

Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from garnishes

BODY SIDE TRIM

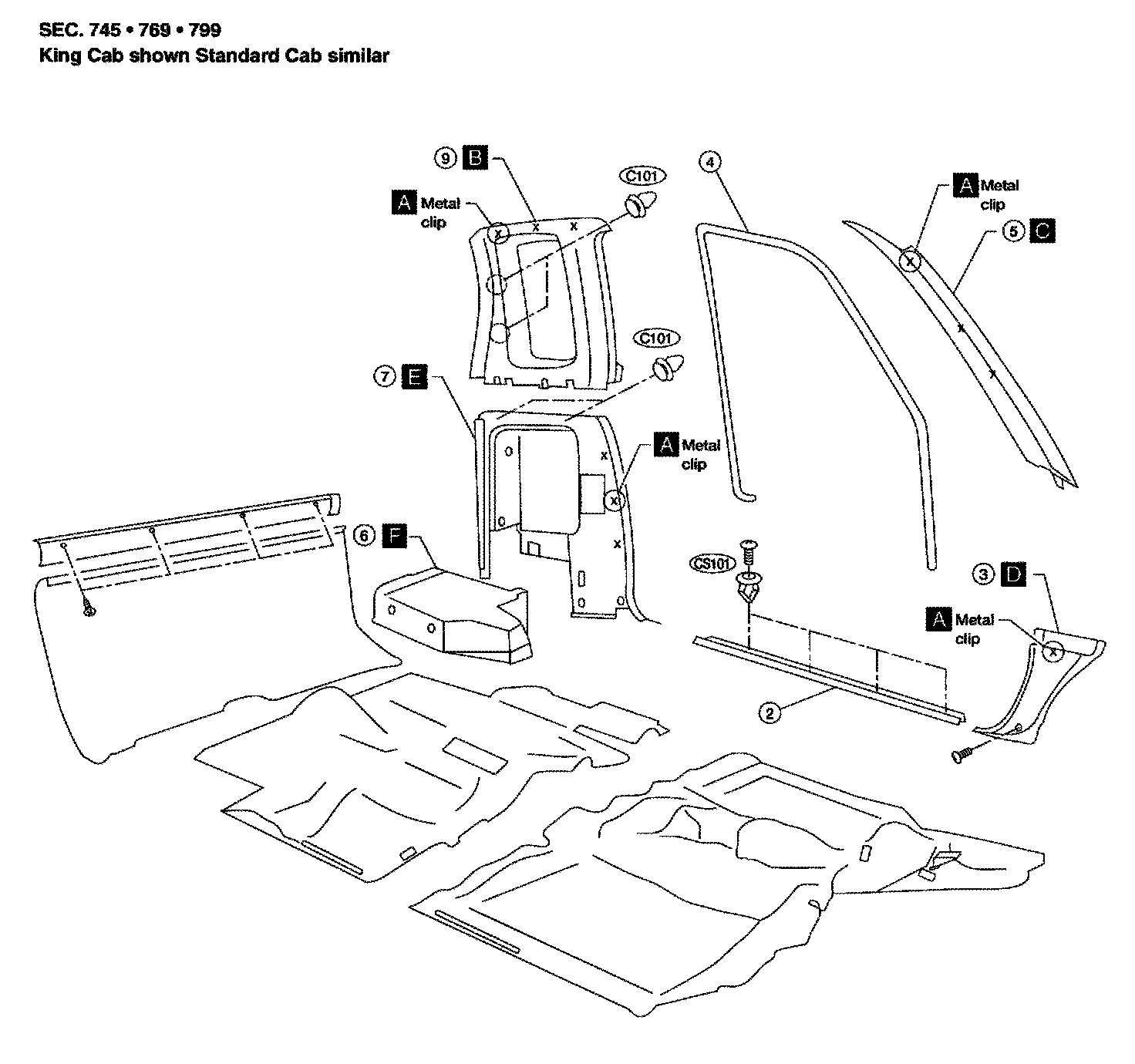

King Cab Model
1. Remove front and jump seats.
2. Remove kicking plates.
3. Remove dash side lower finishers. D
4. Remove body side welts.
5. Remove front pillar garnishes. C
6. Remove jack cover. F
7. Remove lower rear pillar garnishes. E
8. Remove seat belt upper guide loop. Refer to "Front Seat Belt".
9. Remove upper rear pillar garnishes. B

Regular Cab Model
1. Remove front seats.
2. Remove kicking plates.
3. Remove dash side lower finishers. D
4. Remove body side welts.
5. Remove front pillar garnishes. C
6. Remove seat belt upper guide loop. Refer to "Front Seat Belt".
7. Remove upper rear garnishes.

Part 1:

Part 2:

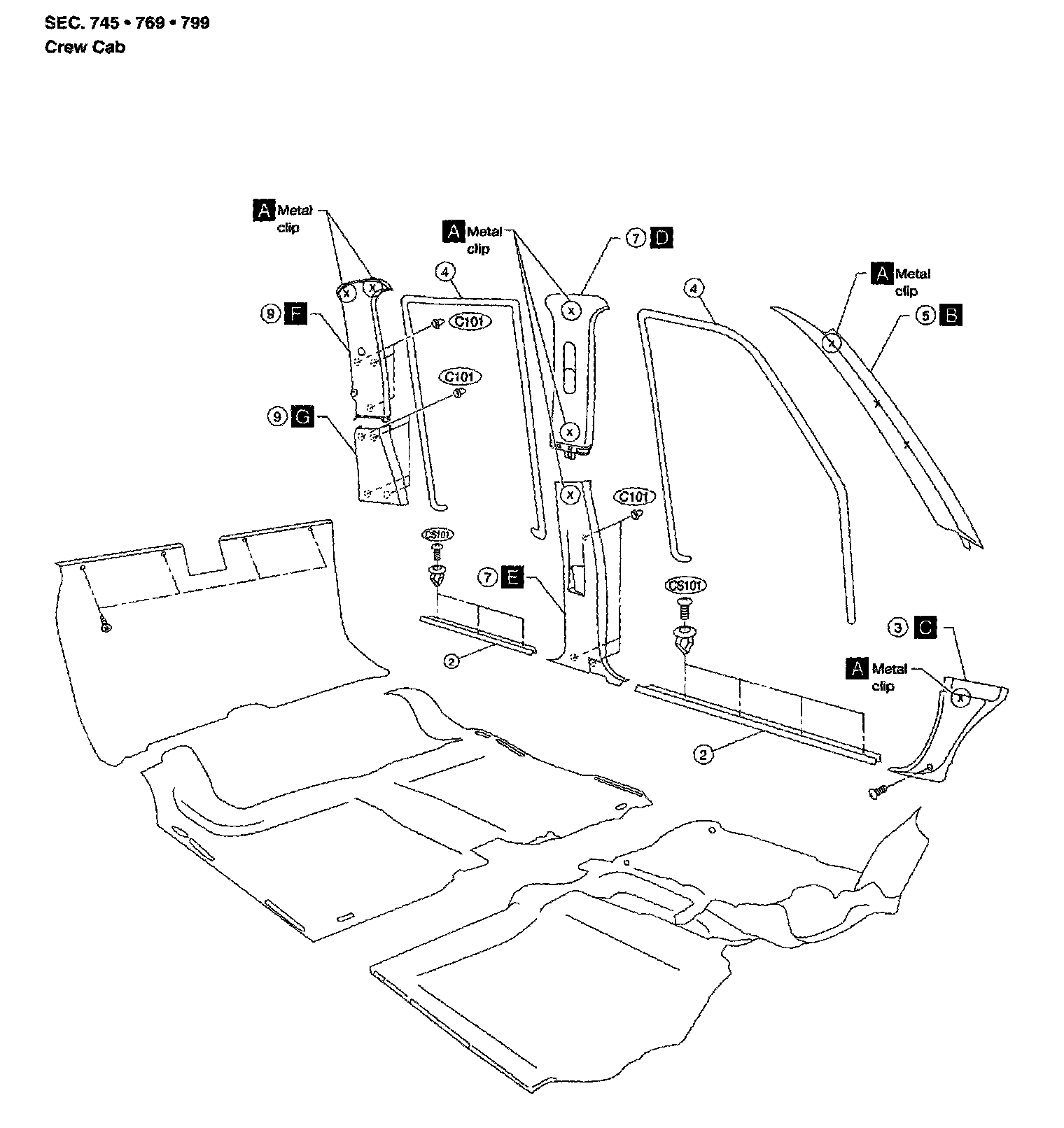

Crew Cab
Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from garnishes

1. Remove front and rear seats.
2. Remove kicking plates.
3. Remove dash side lower finishers. C
4. Remove body side welts.
5. Remove front pillar garnishes. B
6. Remove seat belt upper guide loop on B pillar. Refer to "Front Seat Belt".
7. Remove lower and upper B pillar garnishes. D E
8. Remove seat belt upper guide loop on C pillar. Refer to "Front Seat Belt".
9. Remove lower and upper C pillar garnishes. F G
