Front Door Panel: Service and Repair

Part 1:

Part 2:

Removal and Installation

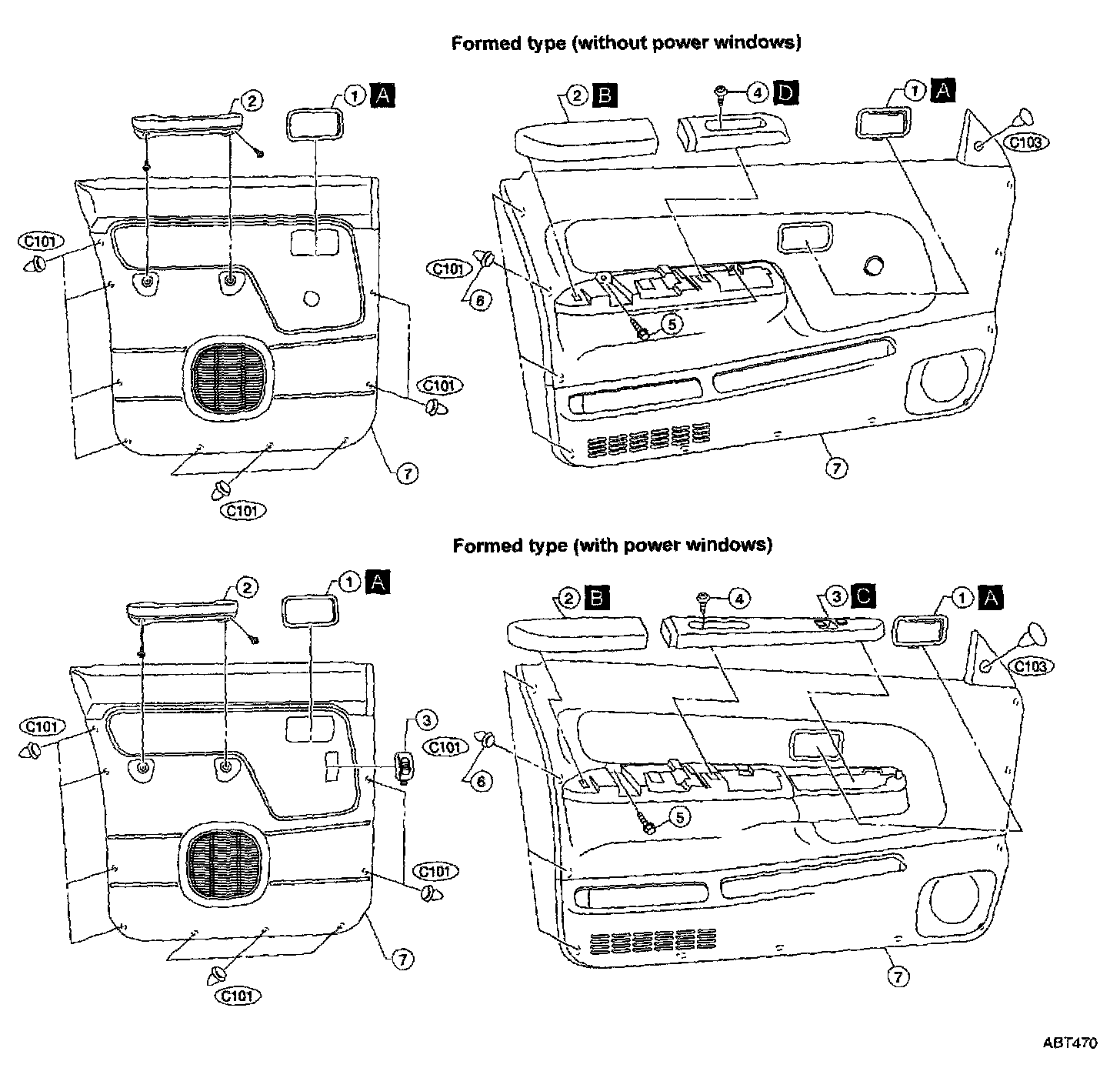

Door Trim (Formed type)
Remove manual window regulator handle, if equipped.
1. Remove inside handle escutcheon. A
2. Remove door armrest. B
3. Remove power window switch, then disconnect the connector. C
4. Remove screw securing door pull handle. D
5. Remove two screws.
6. Remove clips securing door finisher.
7. Lift out door finisher.
