Rear Case

REMOVAL

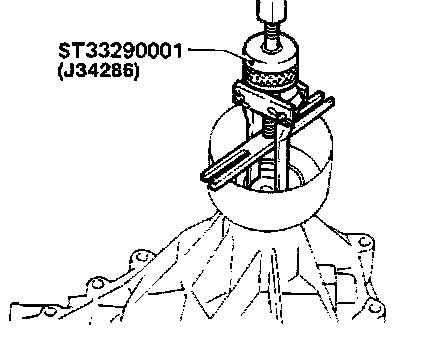

Rear Oil Seal
^ Pull out rear oil seal.

INSTALLATION

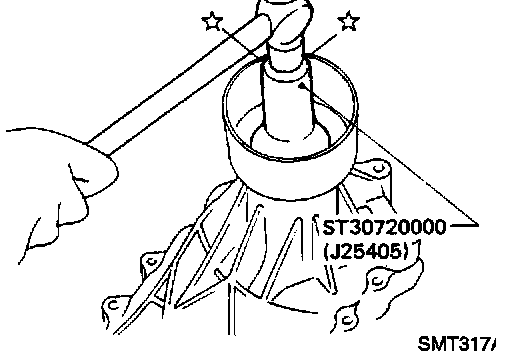

Rear Oil Seal
^ Install new rear oil seal until it stops.
^ Before installing, apply multi-purpose grease to seal lip.

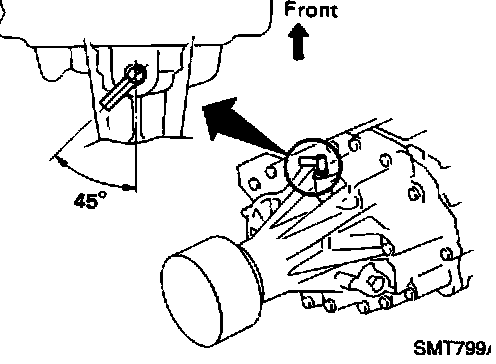

Air Breather
Install as shown in illustration.
^ Use genuine thread locker, Three Bond TB1324, Loctite 271 or equivalent.
