Front Drive Shaft

DISASSEMBLY

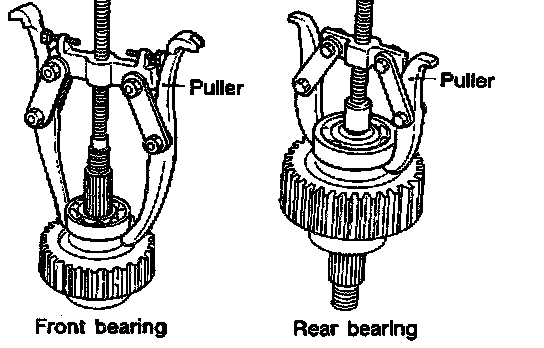

^ Using a gear puller, remove front drive shaft front and rear bearings

INSPECTION

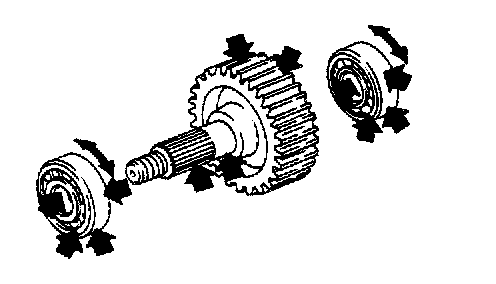

Sprocket and Shaft
^ Check sprocket for excessive wear, chips or cracks.
^ Check shaft for cracks or wear.

Bearing
^ Make sure bearings roll freely and are free from noise, cracks, pitting or wear.

ASSEMBLY

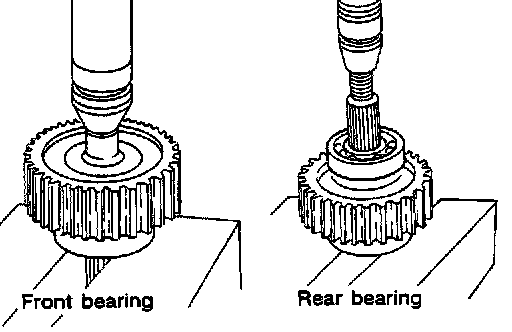

^ Press front drive shaft front and rear bearings onto front drive shaft.
