Counter Gear

DISASSEMBLY

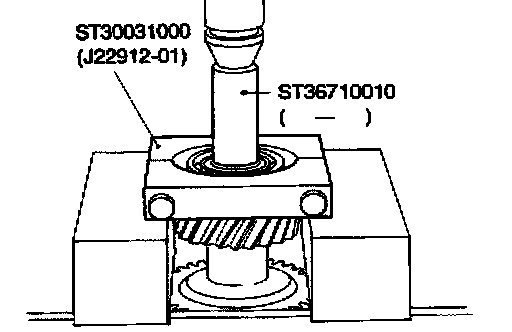

1. Press out counter gear front bearing.
^ Remove front sub-gear, dish plate and spacer (M/T model only).

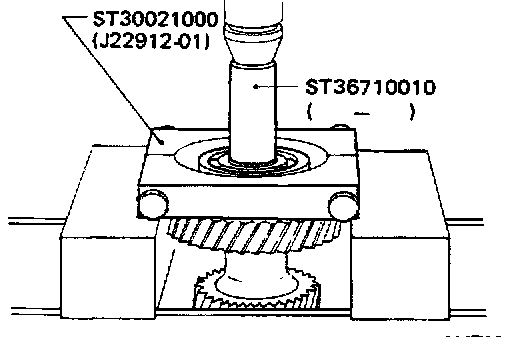

2. Press out counter gear rear bearing.
^ Remove rear sub-gear, dish plate and spacer (M/T model only).

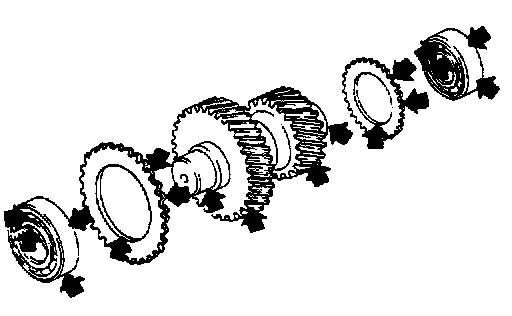

INSPECTION





Gear and Shaft
^ Check gears for excessive wear, chips or cracks.,
^ Check shaft for cracks or wear.

Bearing
^ Make sure bearings roll freely and are free from noise, cracks, pitting or wear.

ASSEMBLY





1. Install front sub-gear, dish plate and spacer (M/T model only).

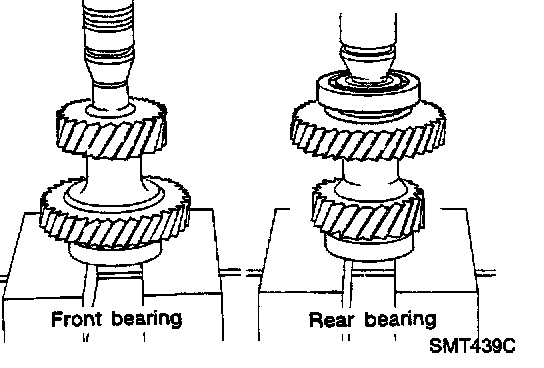

2. Press on counter gear front bearing.
3. Install rear sub-gear, dish plate and spacer (M/T model only).
4. Press on counter gear rear bearing.
