Bearing Retainer

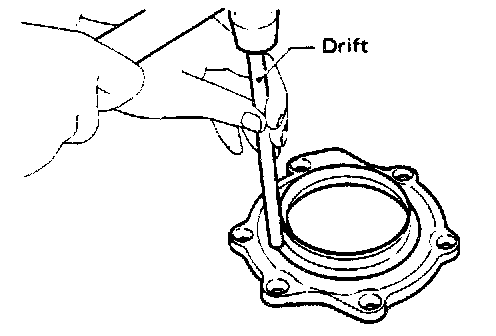

REMOVAL





Oil Catcher
^ Drive out oil catcher from inside of bearing retainer.
^ Be careful not to damage bearing retainer.

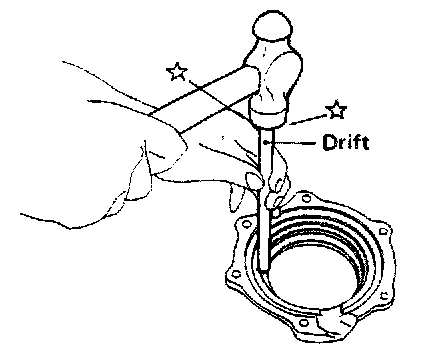

INSTALLATION





Oil Catcher
^ Install oil catcher until it stops.
^ Be careful not to damage or distort oil catcher or bearing retainer.
^ Before installing, apply multi-purpose grease to seal lip.
