Changing Transfer Fluid









When changing transfer fluid completely, A/T fluid may be used.

Fluid grade: Nissan Matic "D" or Equivalent Automatic Transmission Fluid* or API GL-4**.
*Dexron 3/Mercon or equivalent may also be used.
**75w-90 for transfer, and 80w-90 for differential are preferable if the ambient temperature is below 40° C (104° F)

Fluid capacity: 2.2 liters (2.375 US qt, 2 Imp qt)

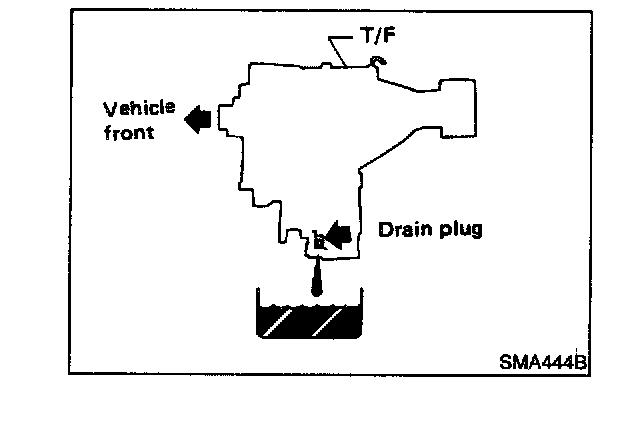

Drain plug tightening torque: 25 - 34 Nm (2.5 - 3.5 kg.m, 18 - 25 ft.lb)
