Component Tests and General Diagnostics

SHIFT LOCK SOLENOID

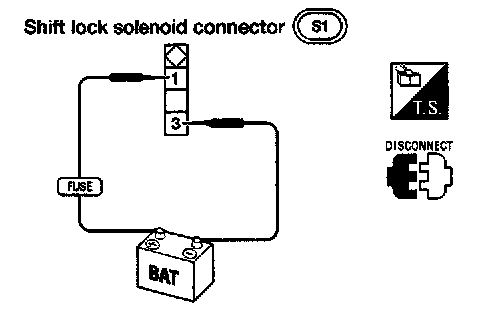

^ Check operation by applying battery voltage between shift lock solenoid connector terminals 1 and 3.








PARK POSITION SWITCH

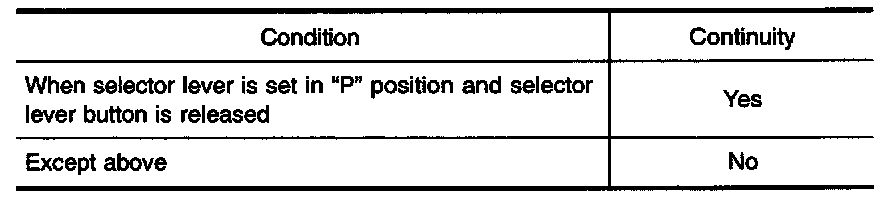

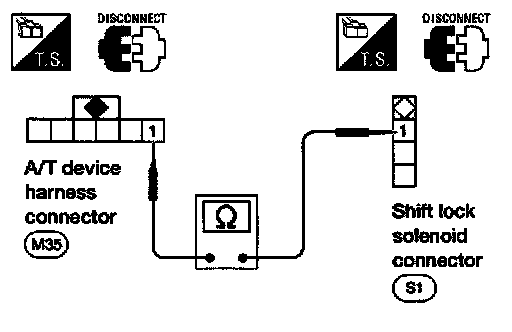

^ Check continuity between A/T device (park position switch) harness connector terminal 1 and A/T device harness connector terminal 1.








ASCD BRAKE SWITCH (SHIFT LOCK BRAKE SWITCH)

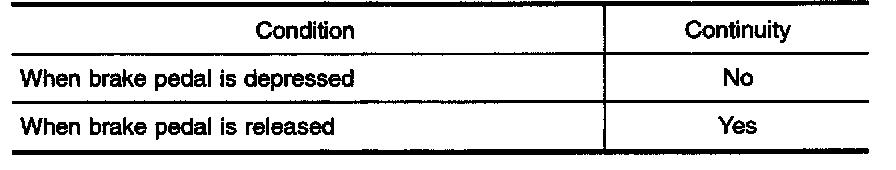

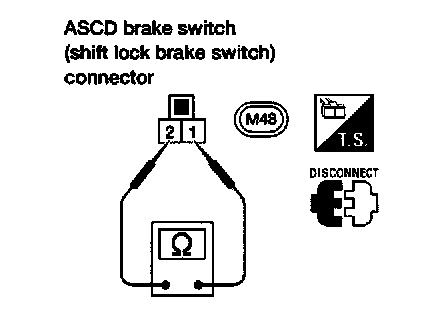

^ Check continuity between ASCD brake switch (shift lock brake switch) harness connector terminals 1 and 2.
Check ASCD brake switch (shift lock brake switch) after adjusting brake pedal - refer to Brakes and Traction Control.
