With IC Regulator

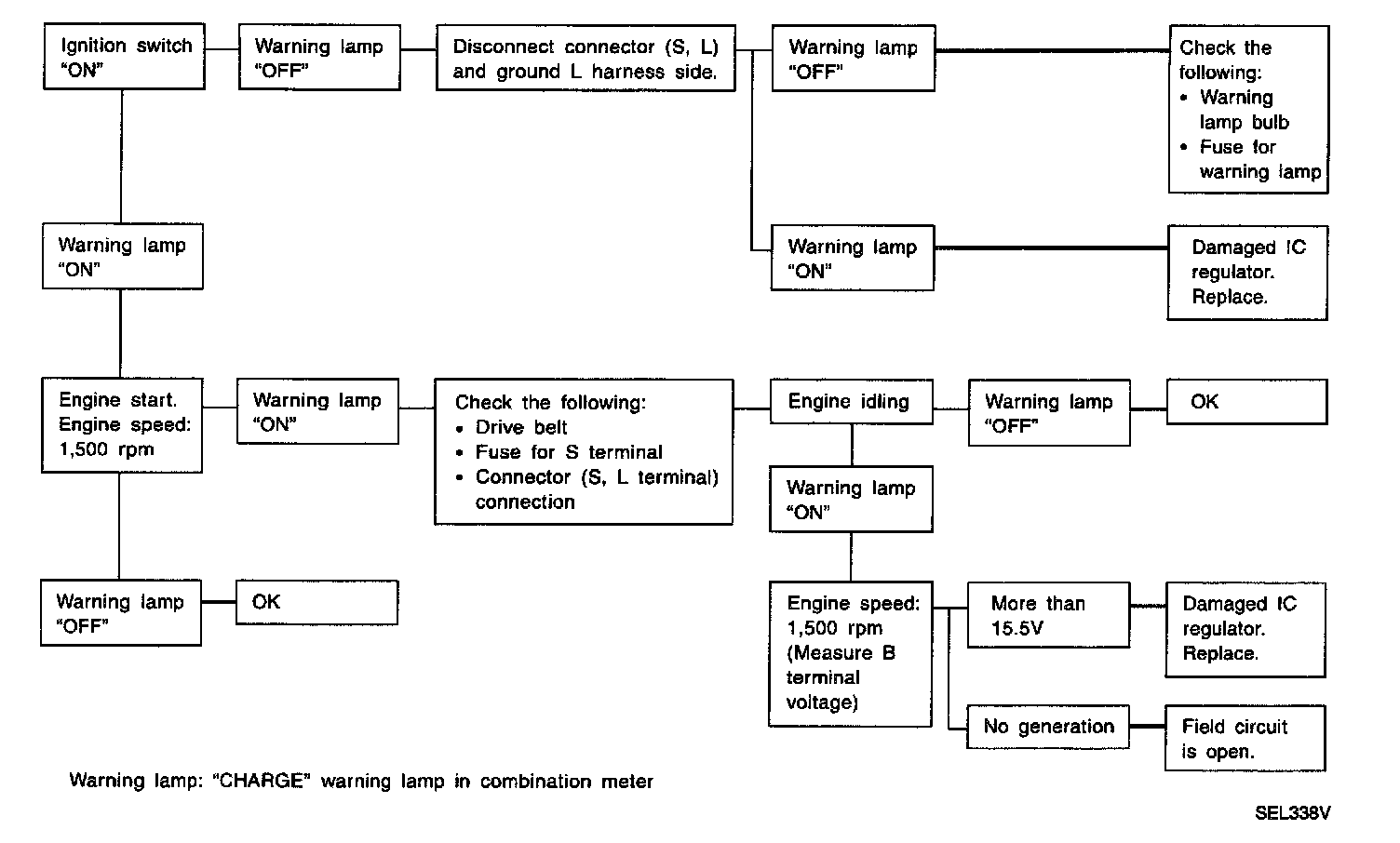

Before conducting a generator test, make sure that the battery is fully charged. A 30-Volt voltmeter and suitable test probes are necessary for the test. The generator can be checked easily by referring to the Inspection Table.
- Before starting, inspect the fusible link.
- Use fully charged battery.


NOTE:
- If the inspection result is OK even though the charging system is malfunctioning, check the B terminal connection. (Check the tightening torque.)
- When field circuit is open, check condition of rotor coil, rotor slip ring and brush. If necessary, replace faulty parts with new ones.
