Symptom Related Diagnostic Procedures

Diagnostic Procedure

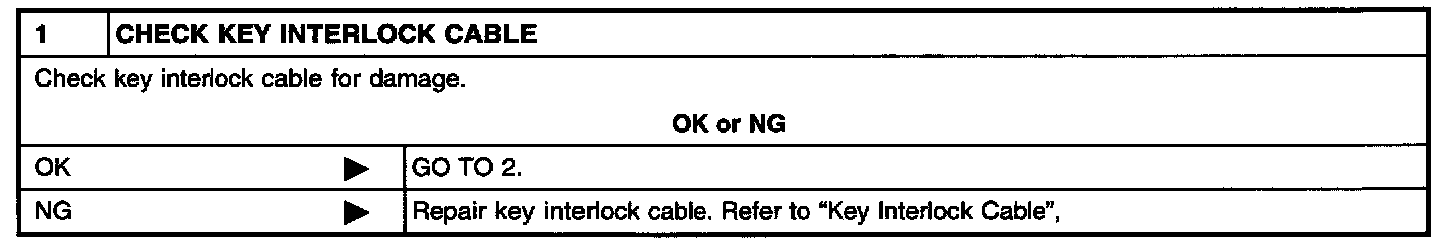

1: CHECK KEY INTERLOCK CABLE

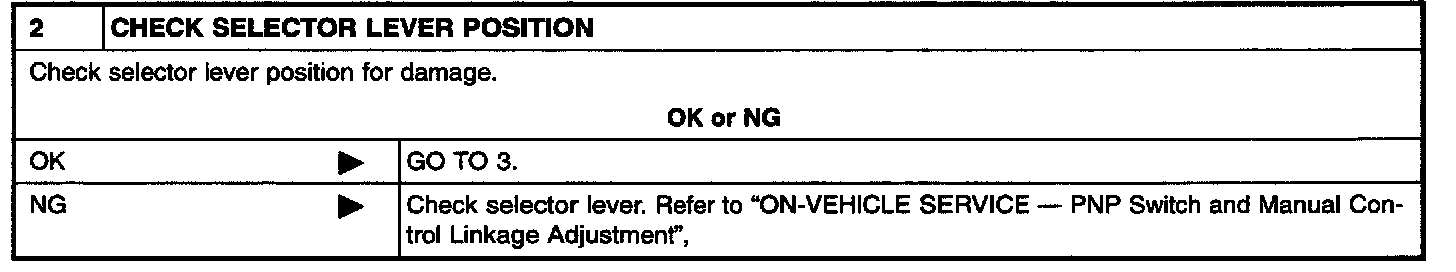

2: CHECK SELECTOR LEVER POSITION

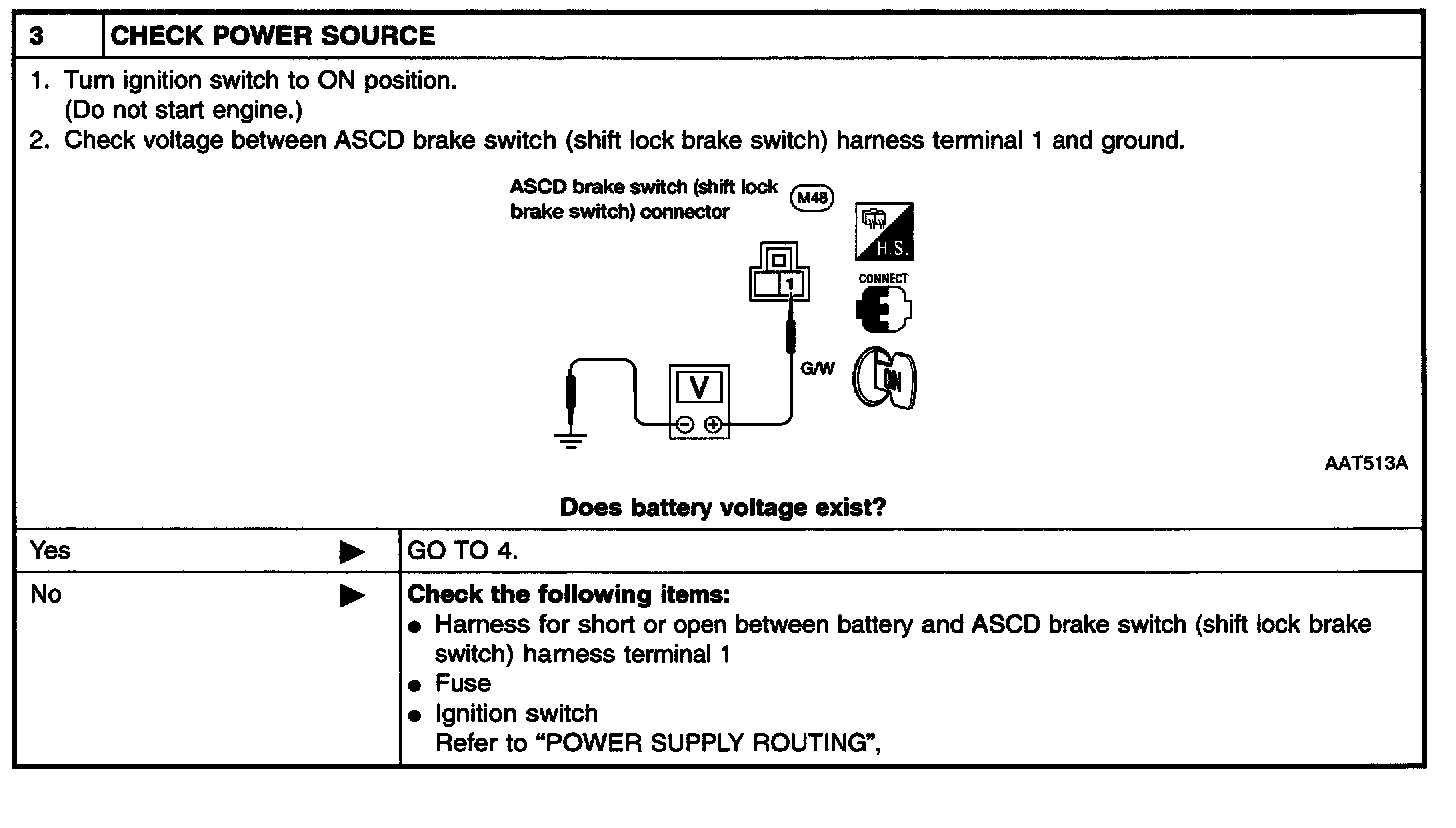

3: CHECK POWER SOURCE

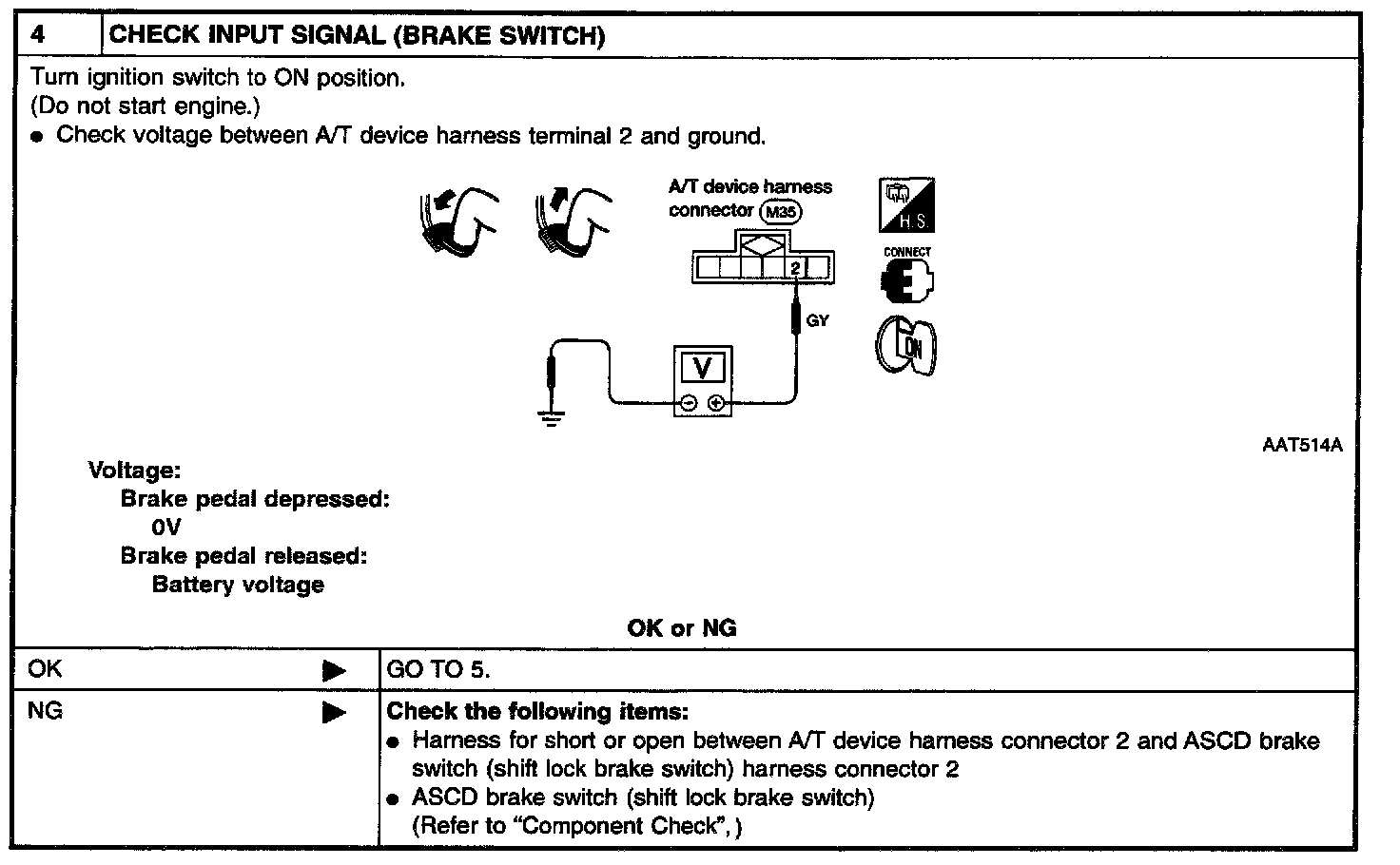

4: CHECK INPUT SIGNAL (BRAKE SWITCH)

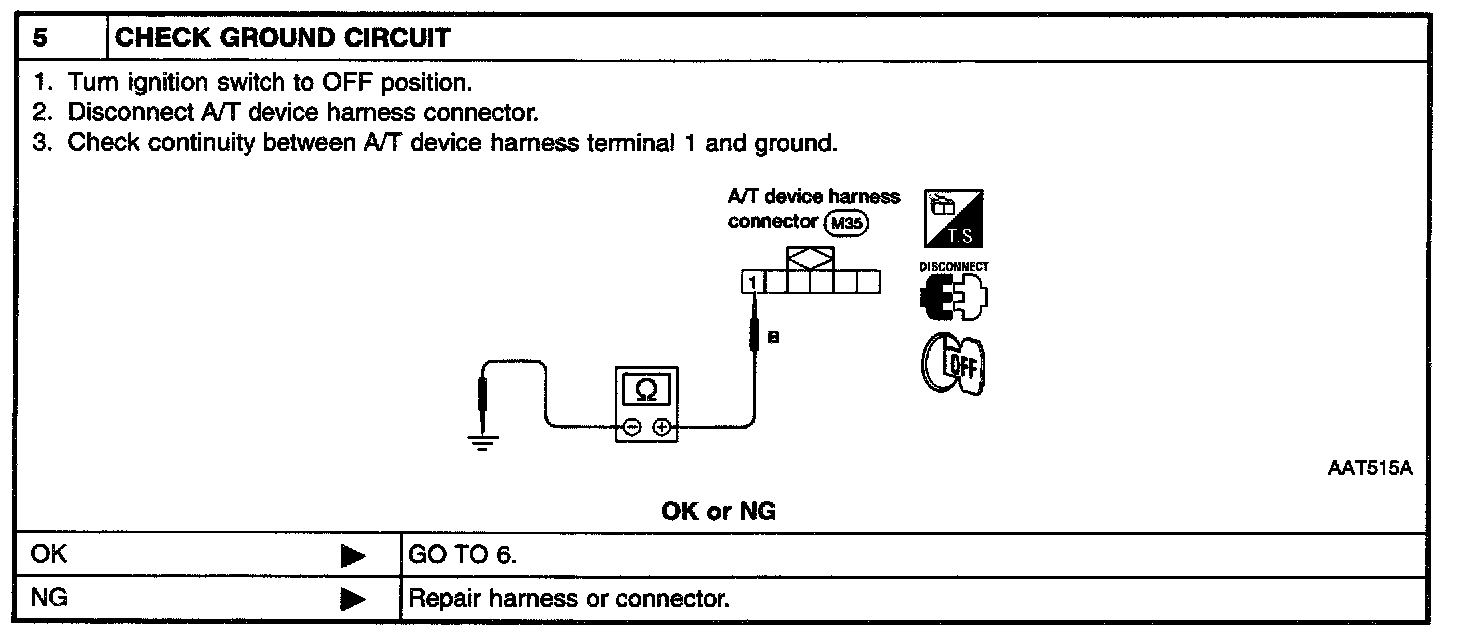

5: CHECK GROUND CIRCUIT

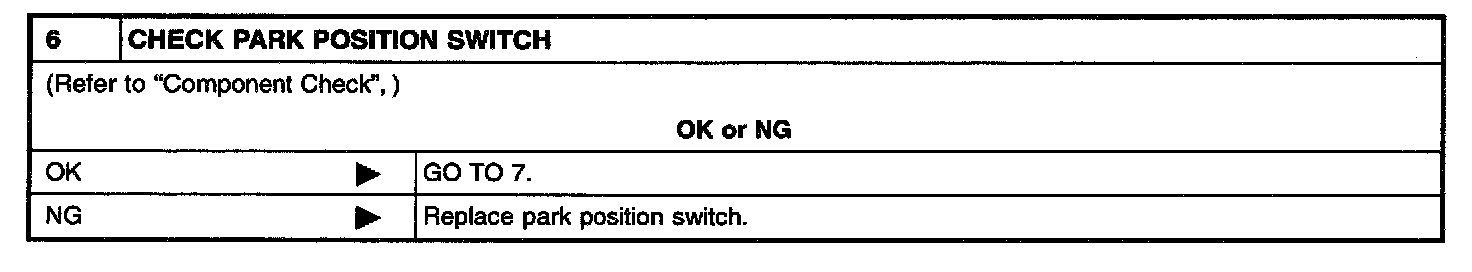

6: CHECK PARK POSITION SWITCH

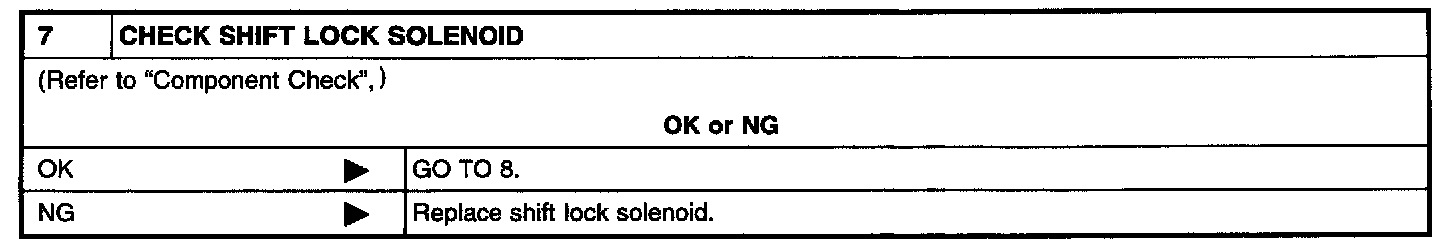

7: CHECK SHIFT LOCK SOLENOID

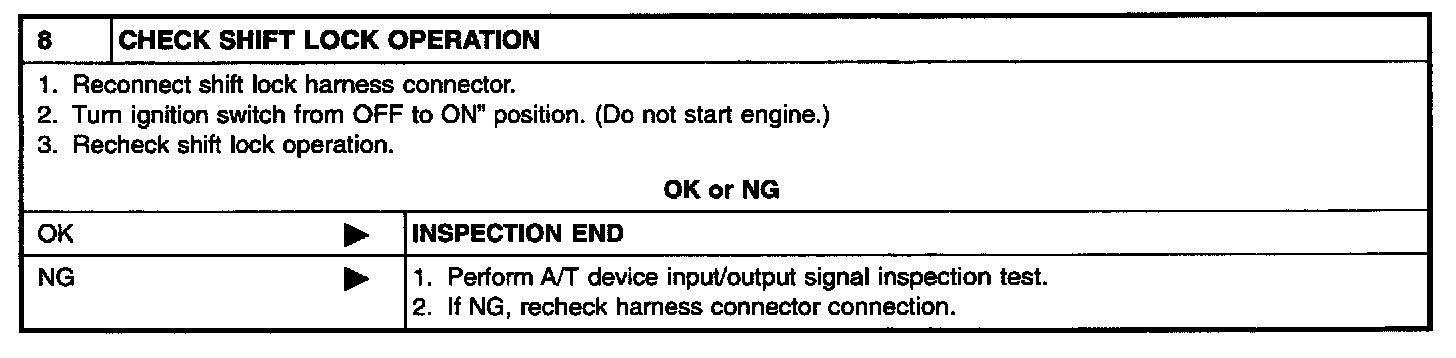

8: CHECK SHIFT LOCK OPERATION

SYMPTOM 1:
^ Selector lever cannot be moved from P position with key in ON position and brake pedal applied.
^ Selector lever can be moved from P position with key in ON position and brake pedal released.
^ Selector lever can be moved from P position when key is removed from key cylinder.

SYMPTOM 2:
Ignition key cannot be removed when selector lever is set to P position. It can be removed when selector lever is set to any
