Combination Switch: Service and Repair

For removal and installation of spiral cable, see "SUPPLEMENTAL RESTRAINT SYSTEM (SRS)".

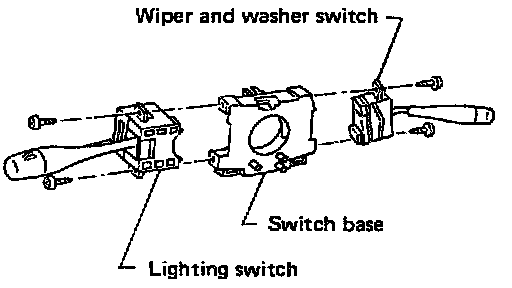

- Each switch can be replaced without removing combination switch base.

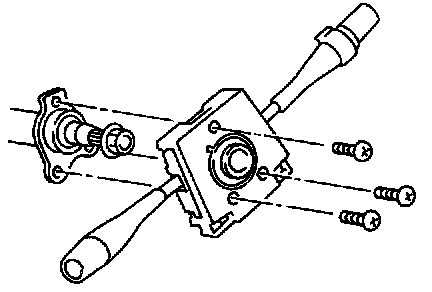

- To remove combination switch base, remove base attaching screw.

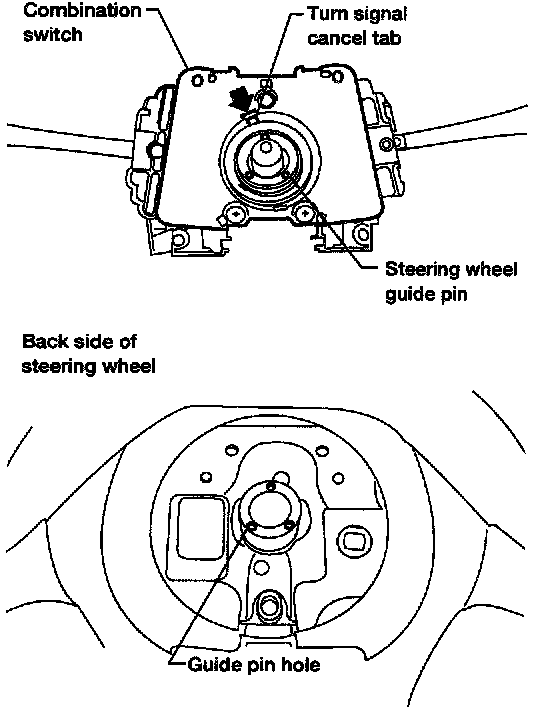

- Before installing the steering wheel, align the turn signal cancel tab with the notch of the combination switch.Refer to "SUPPLEMENTAL RESTRAINT SYSTEM (SRS)".
