Engine Cannot Be Started In P and N Position

Engine Cannot Be Started In P and N Position

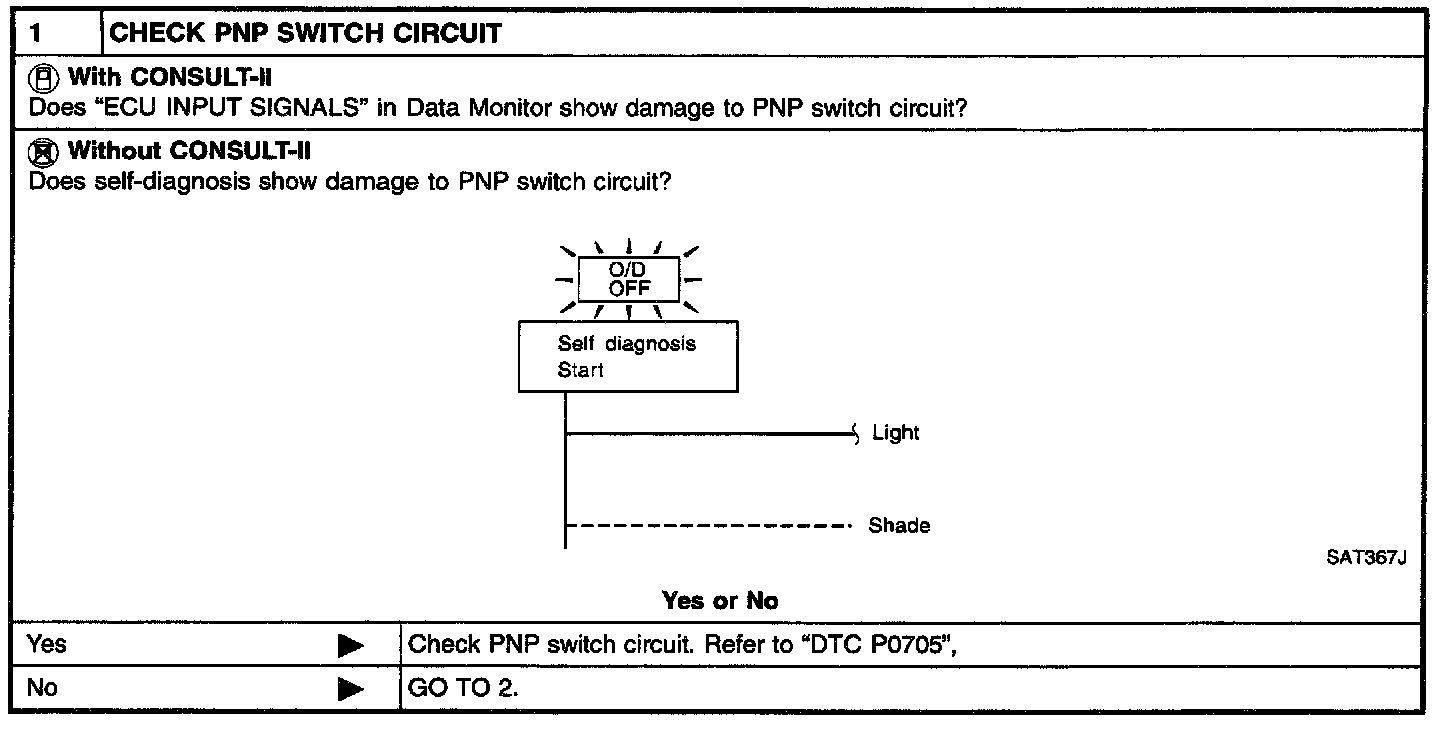

1: CHECK PNP SWITCH CIRCUIT

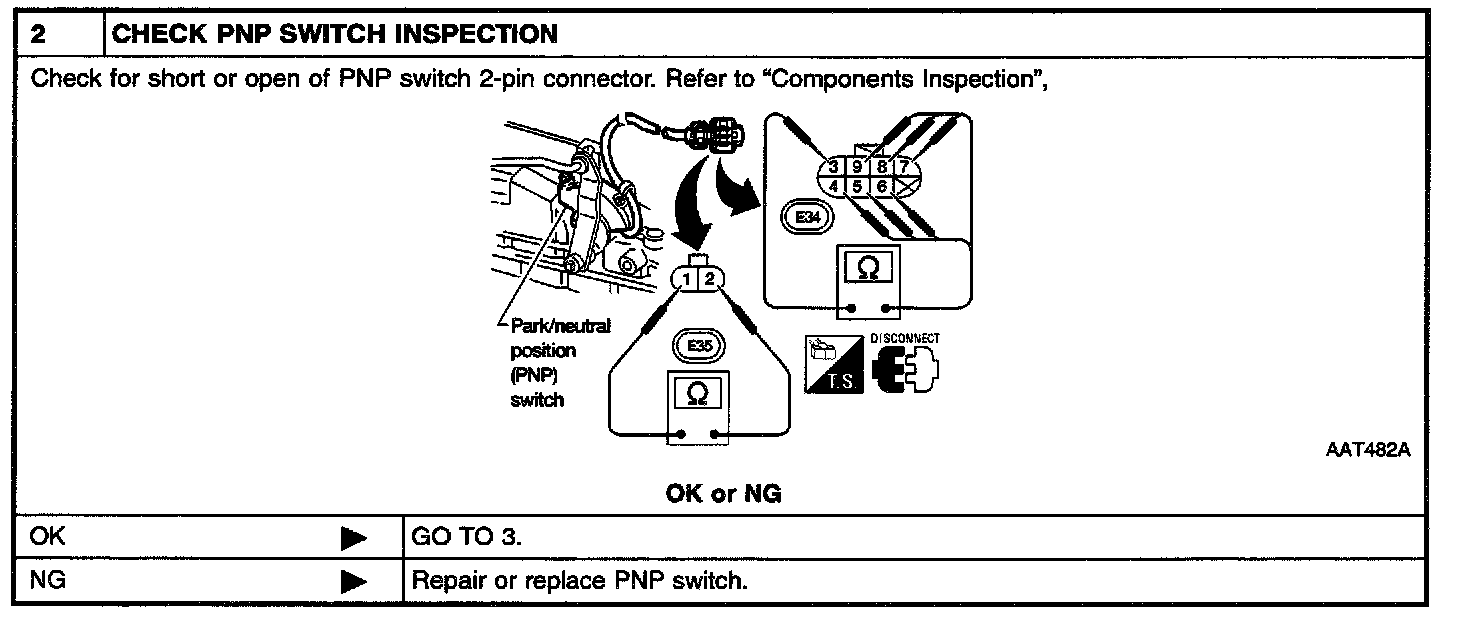

2: CHECK PNP SWITCH INSPECTION

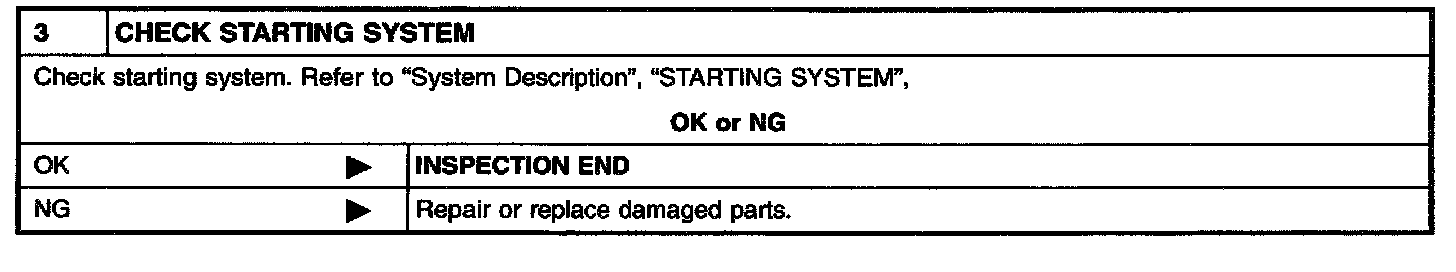

3: CHECK STARTING SYSTEM

SYMPTOM:
Engine cannot be started with selector lever in P or N position.
Engine cannot be started with selector lever in P. Engine can be started with selector lever in D, 2, 1 or R position.
