Main Power Supply and Ground Circuit Testing

Trouble Diagnosis For Power Supply

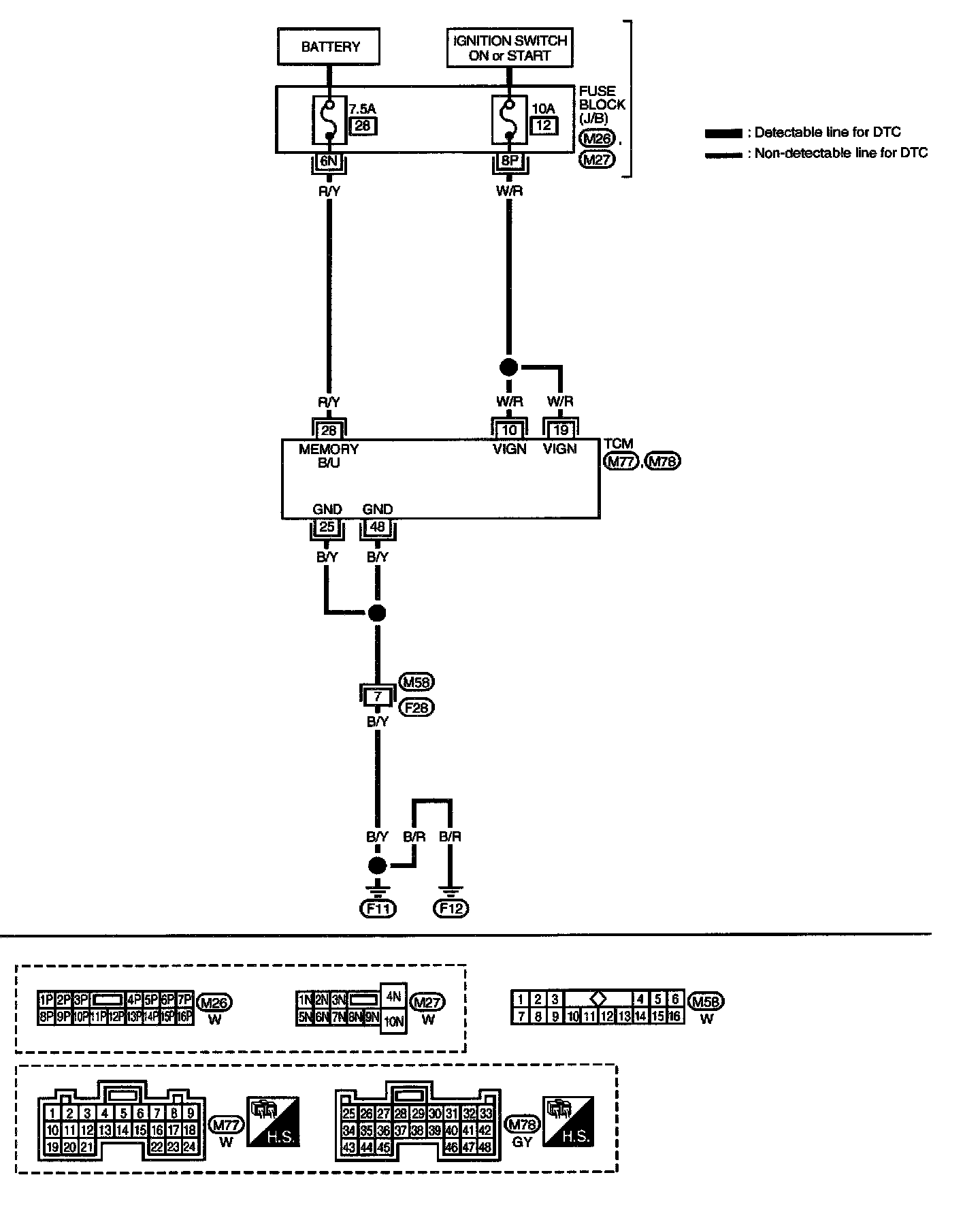

WIRING DIAGRAM - AT - MAIN

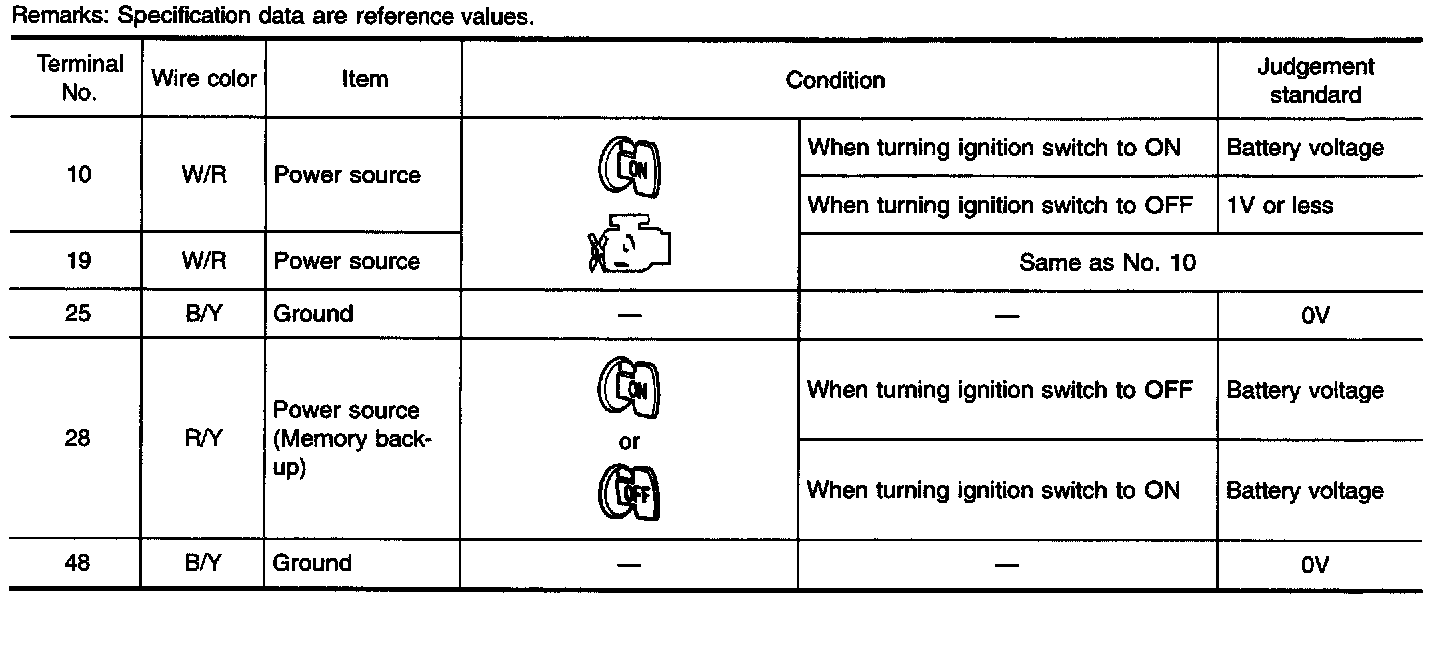

TCM TERMINALS AND REFERENCE VALUE

Diagnostic Procedure

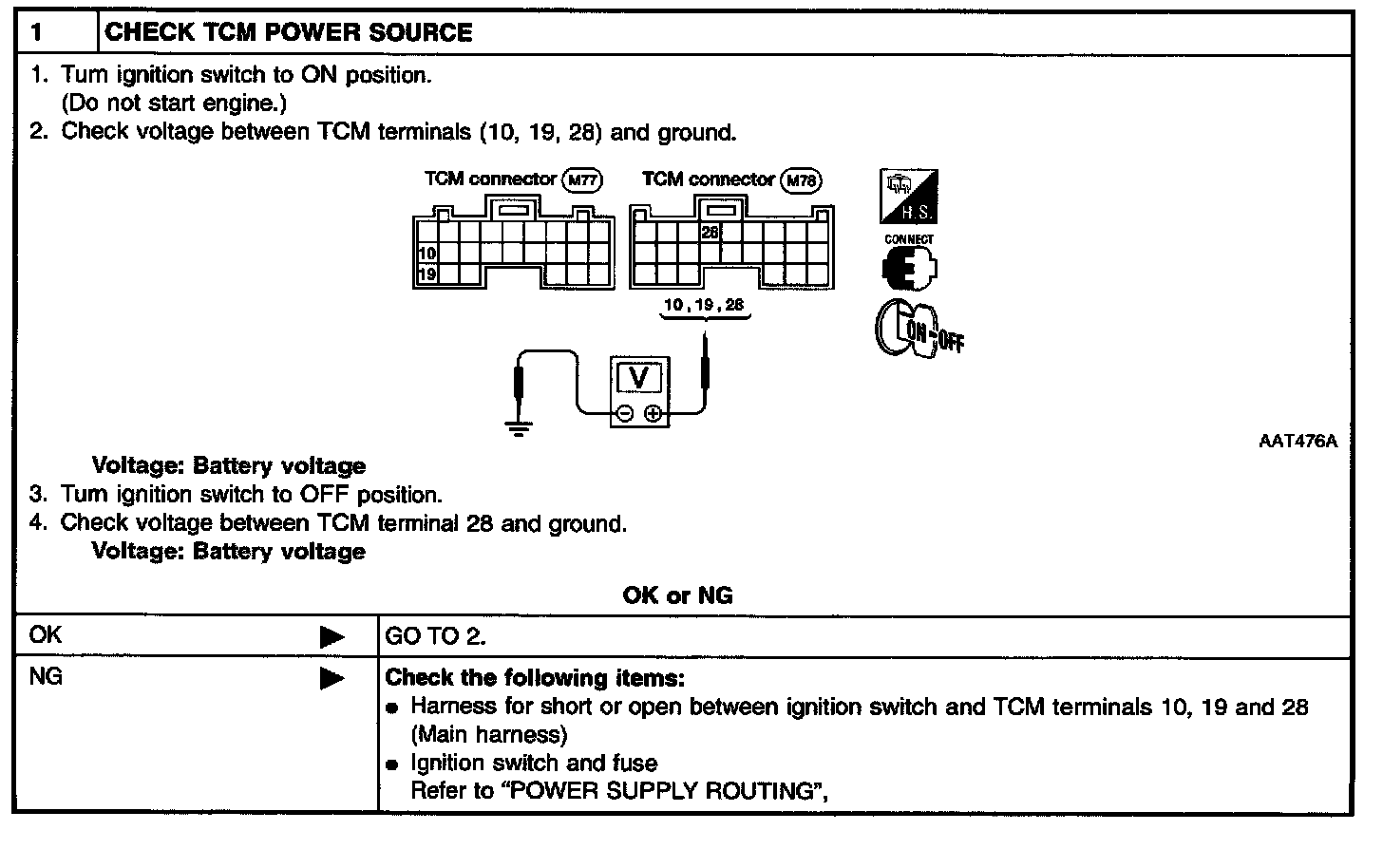

1: CHECK TCM POWER SOURCE

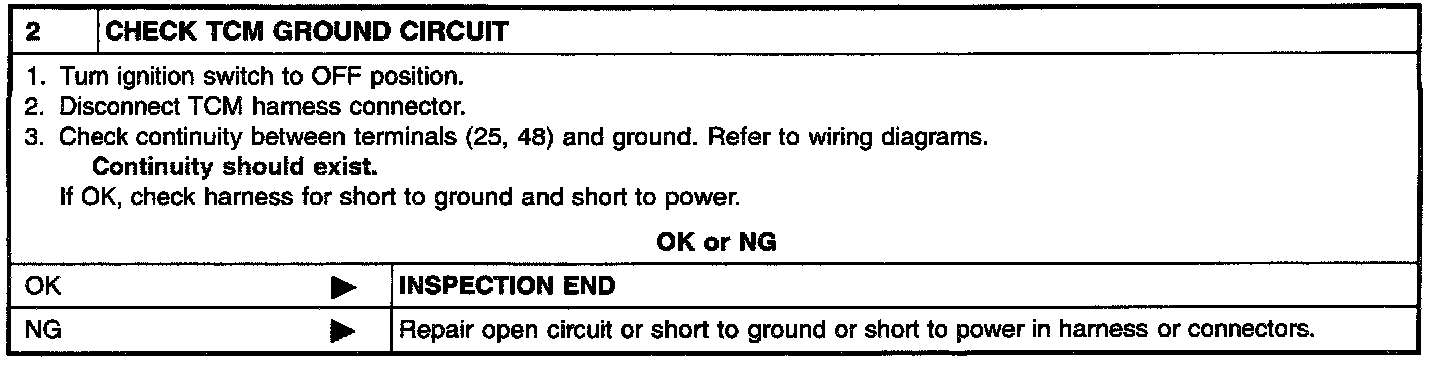

2: CHECK TCM GROUND CIRCUIT
