Magnet Clutch Circuit

TROUBLE DIAGNOSIS PROCEDURE FOR MAGNET CLUTCH SYMPTOM
- Magnet clutch does not engage when A/C switch and fan switch are ON.

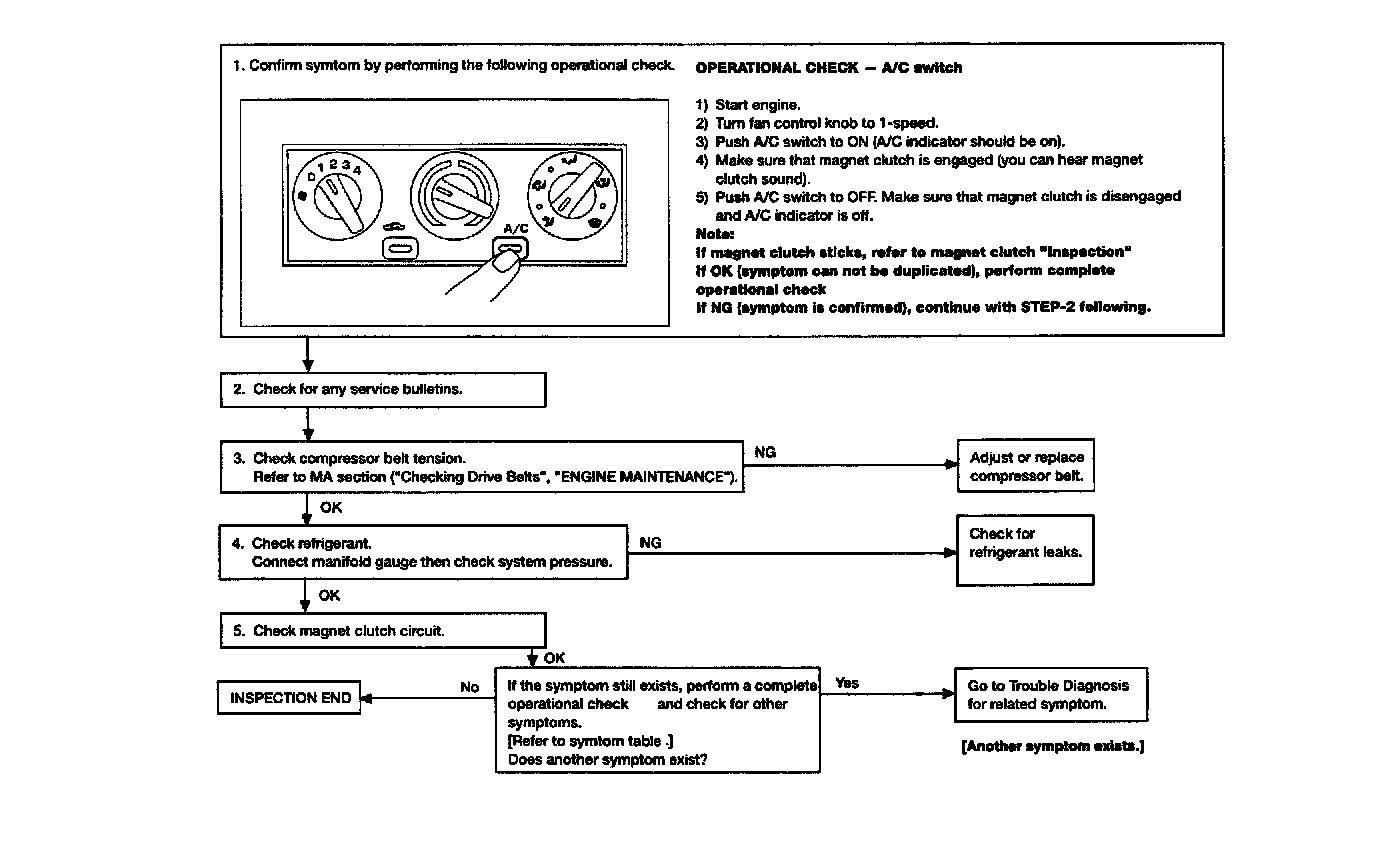

Inspection Flow

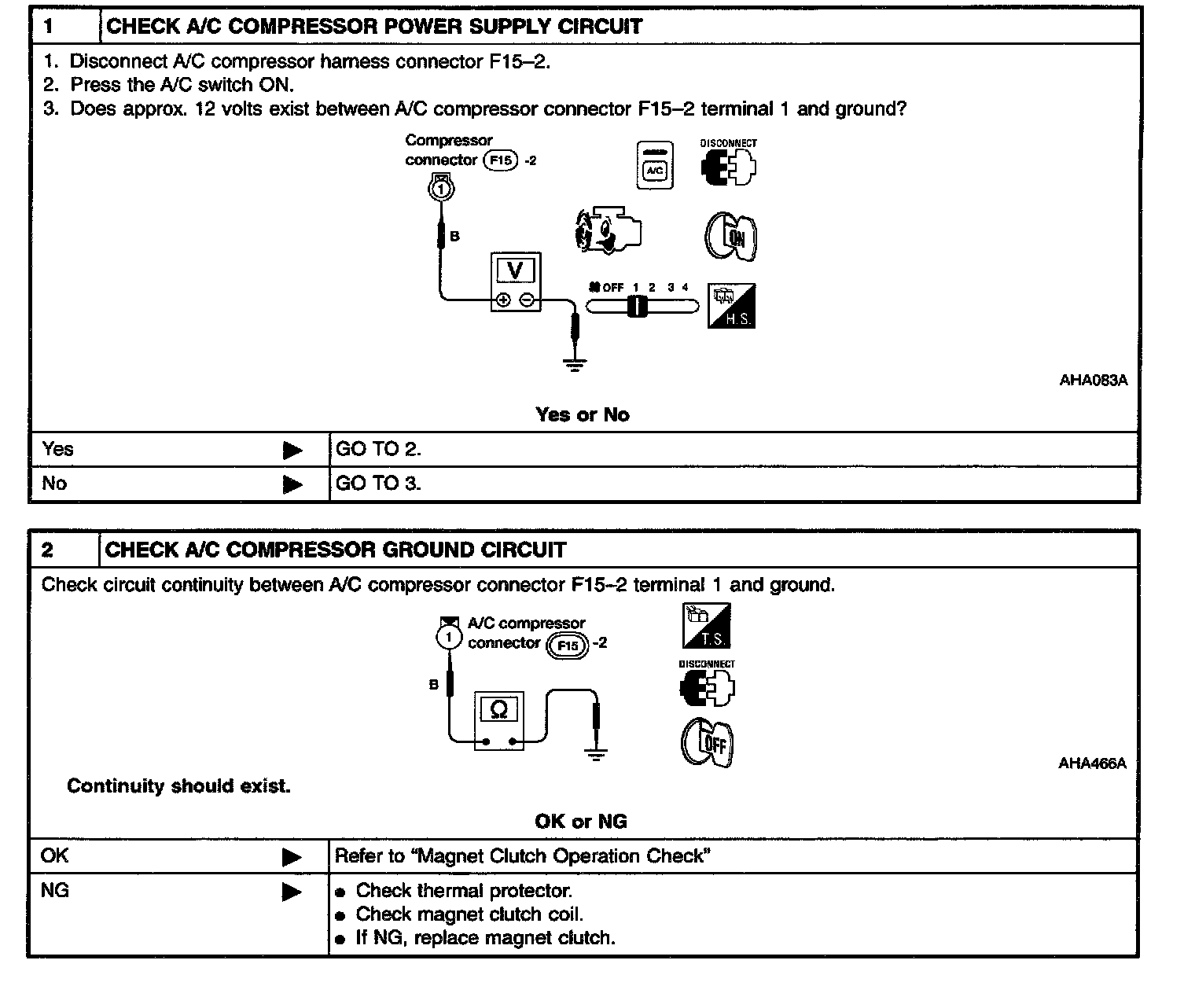

Steps 1 - 2:

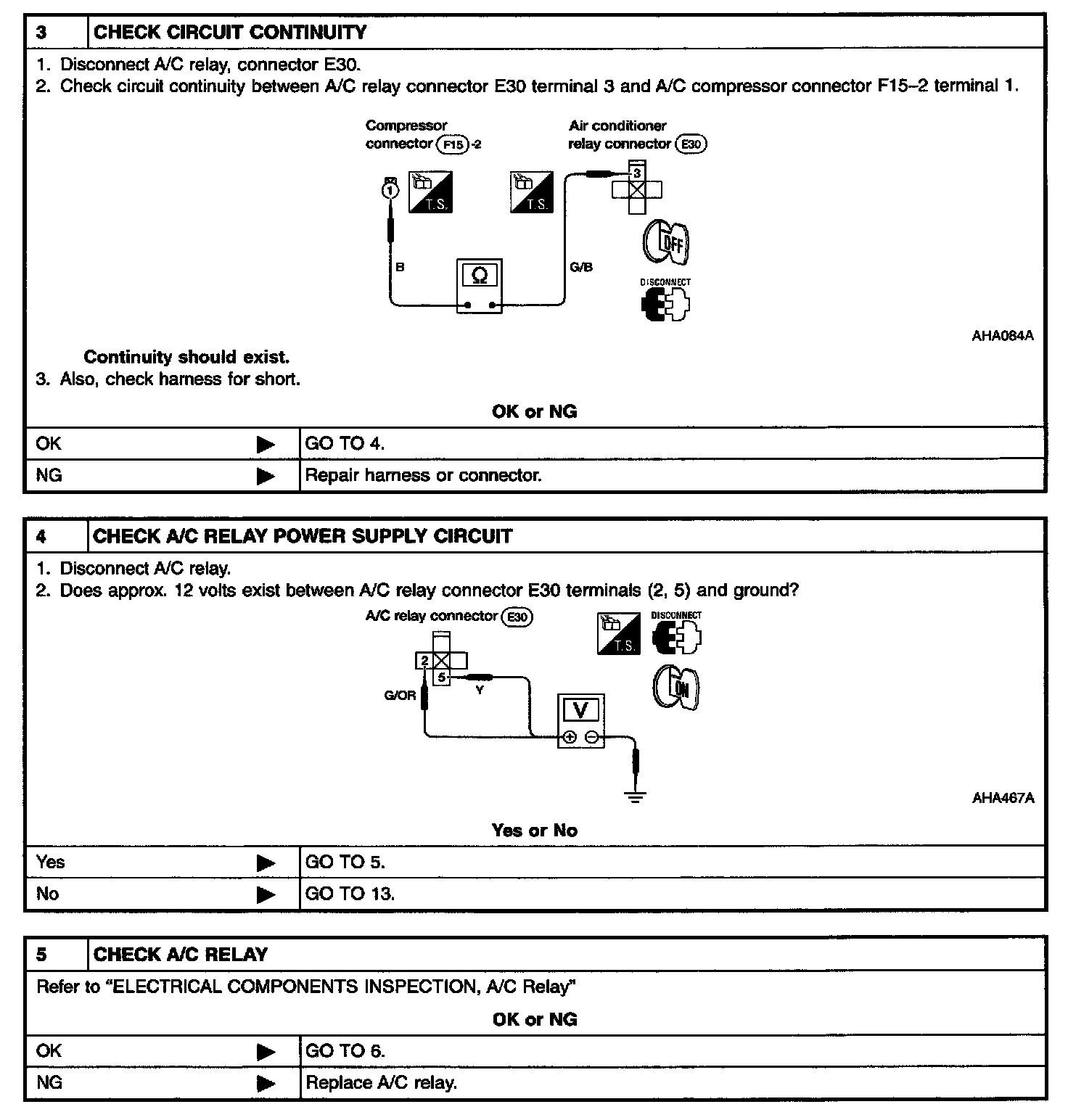

Steps 3 - 5:

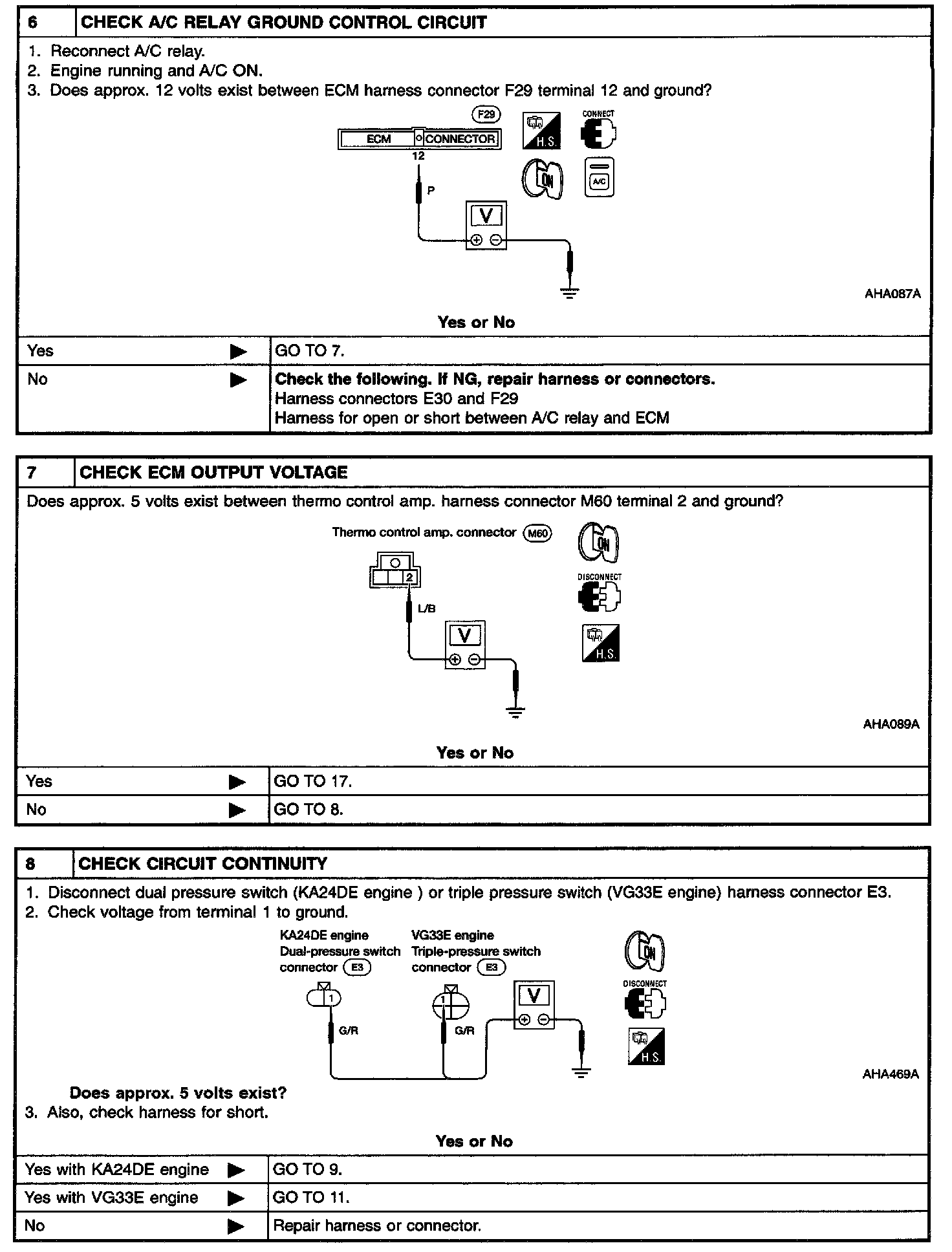

Steps 6 - 8:

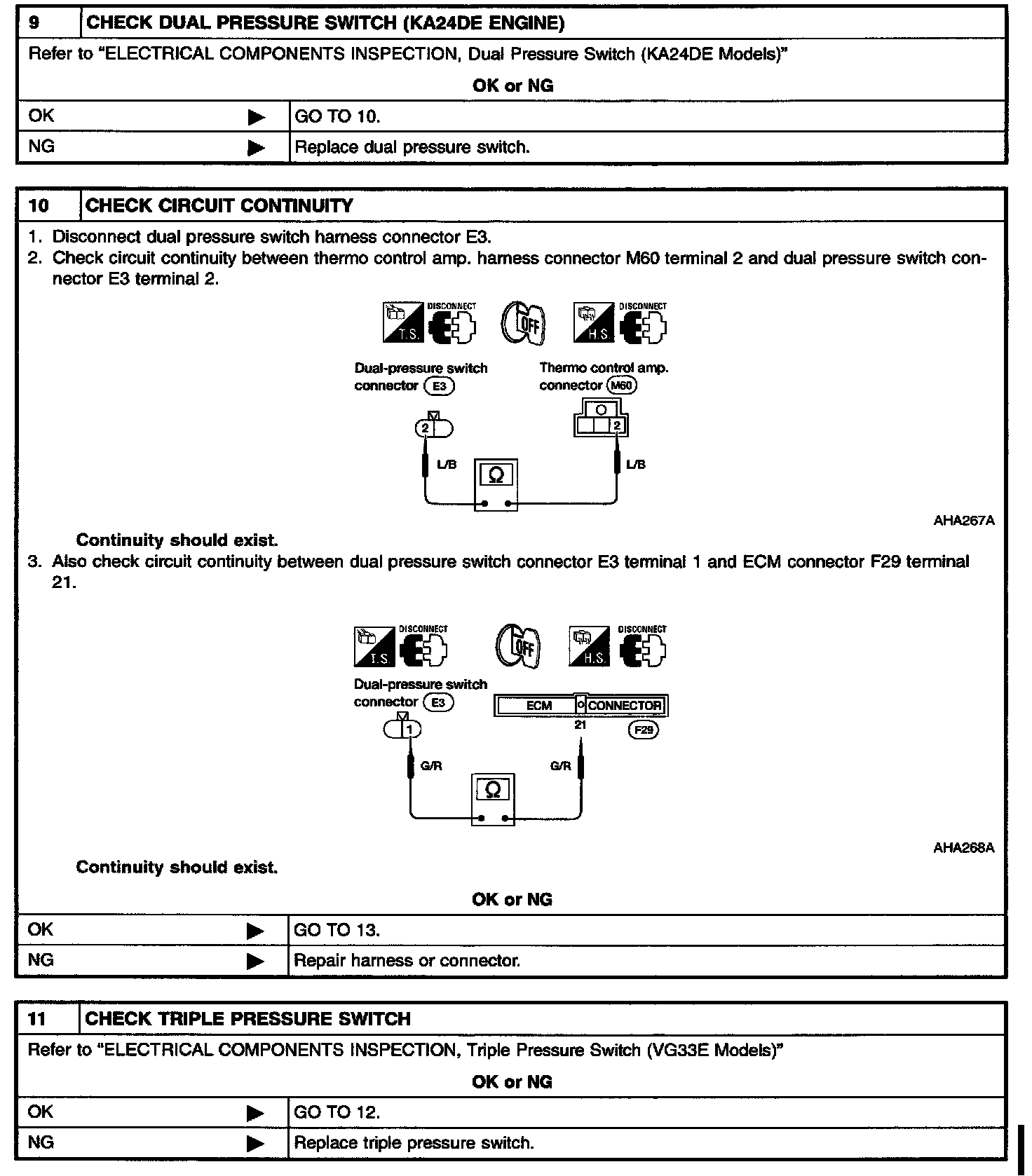

Steps 9 - 11:

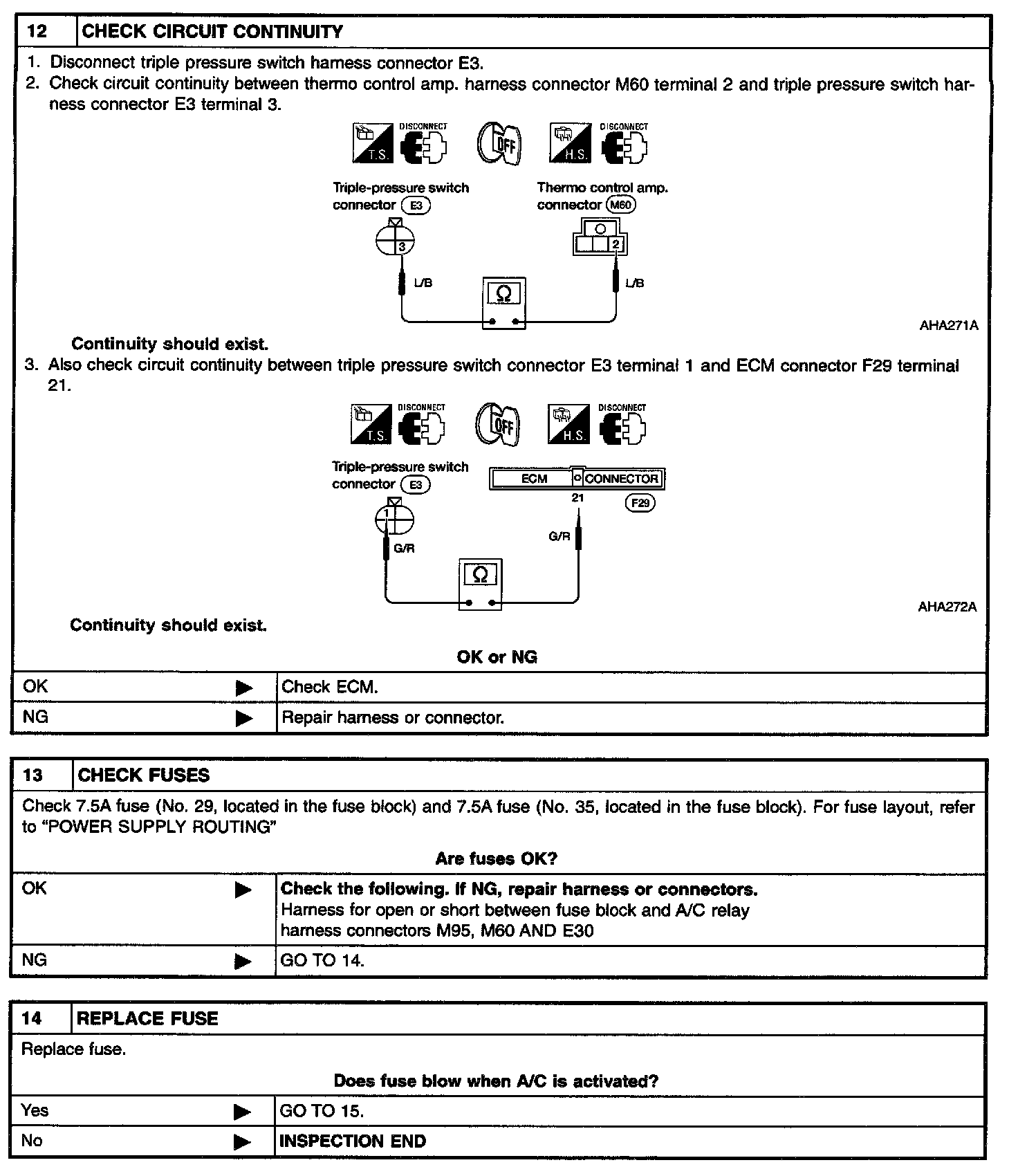

Steps 12 - 14:

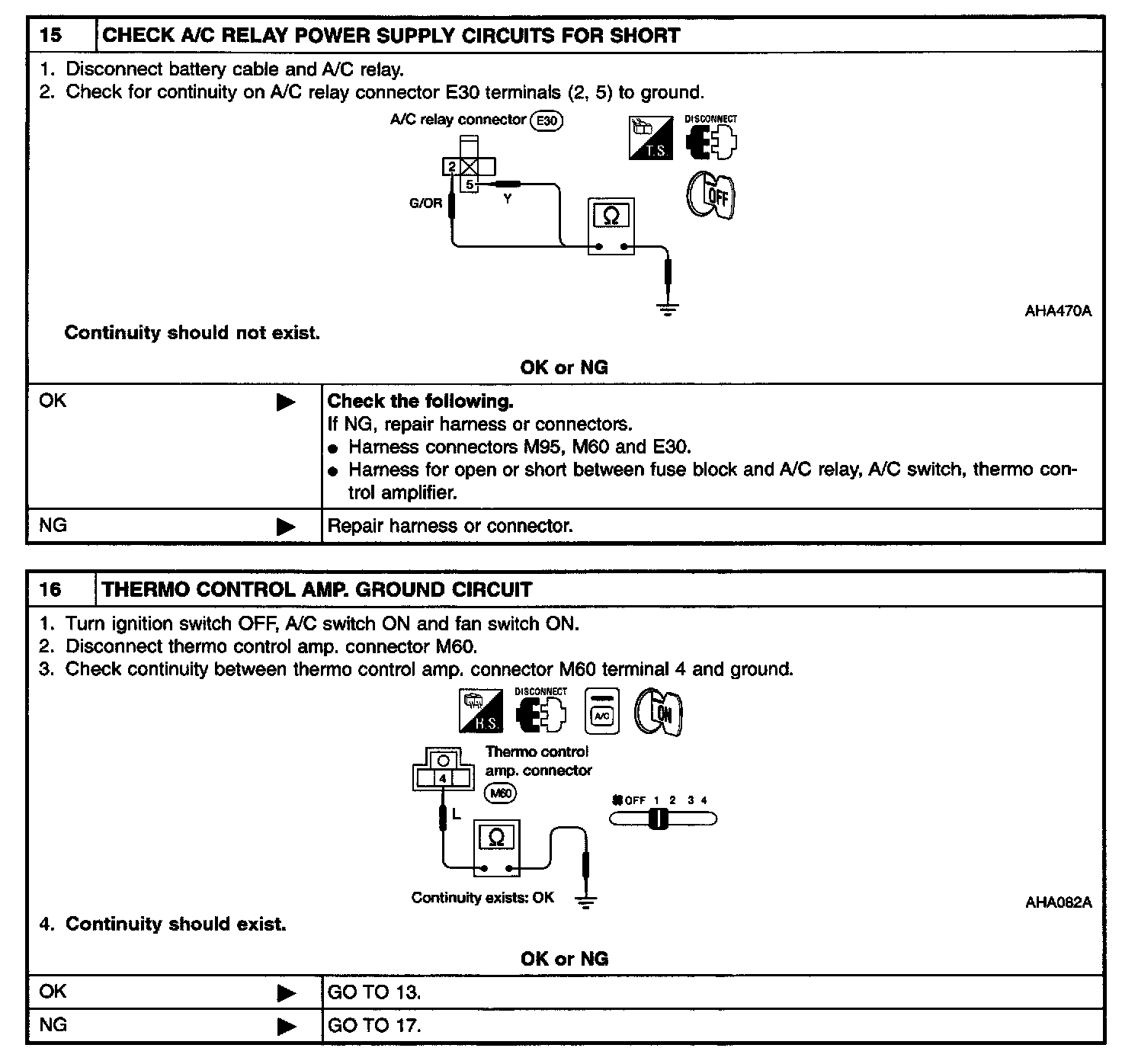

Steps 15 - 16:

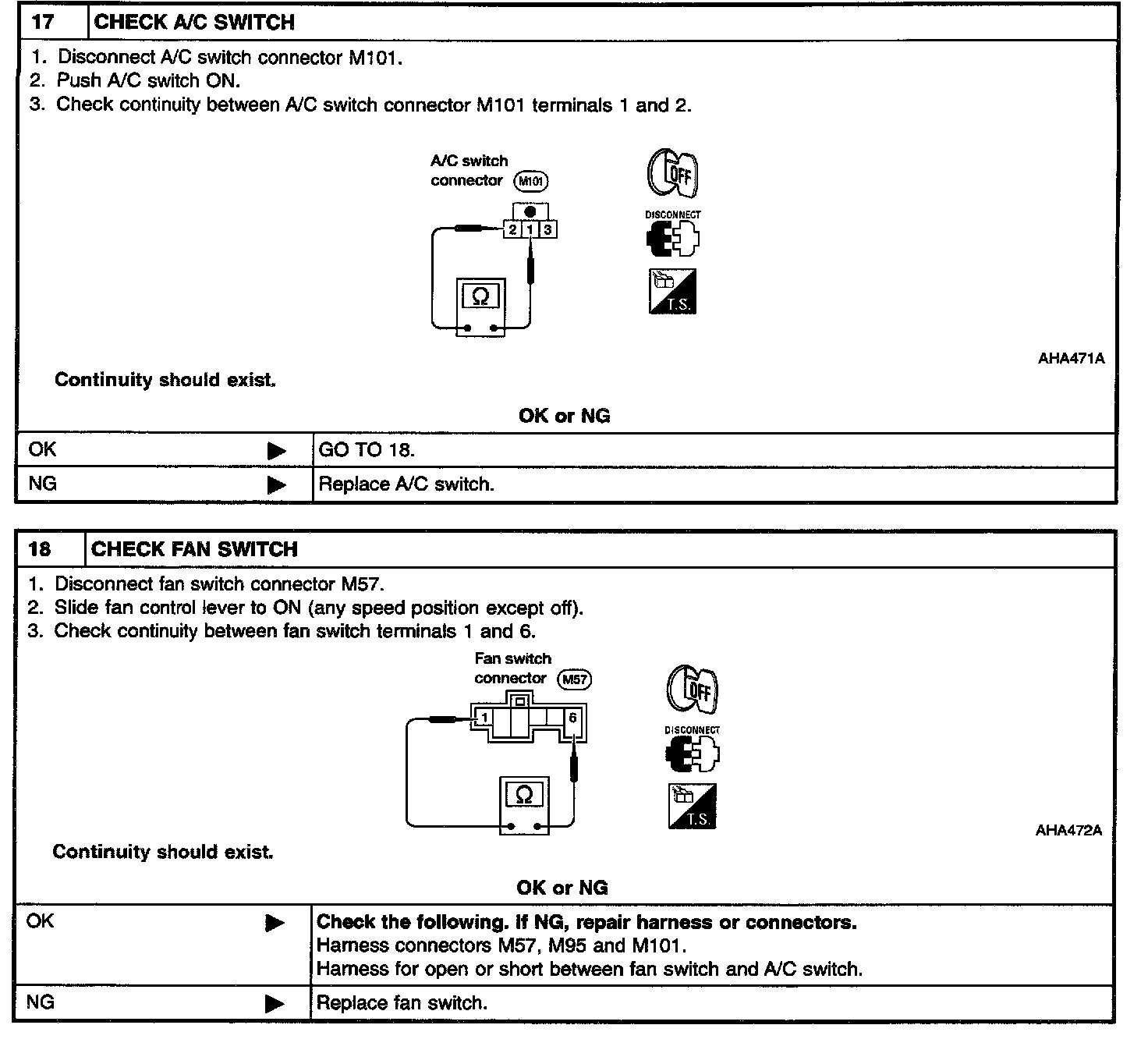

Steps 17 - 18:

MAGNET CLUTCH CIRCUIT

SYMPTOM: Magnet clutch does not engage when A/C switch and fan switch are ON.

ELECTRICAL COMPONENTS INSPECTION

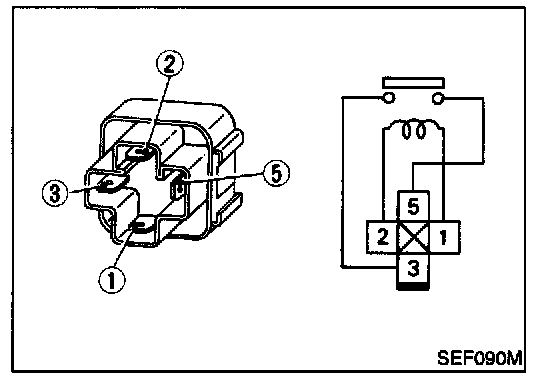

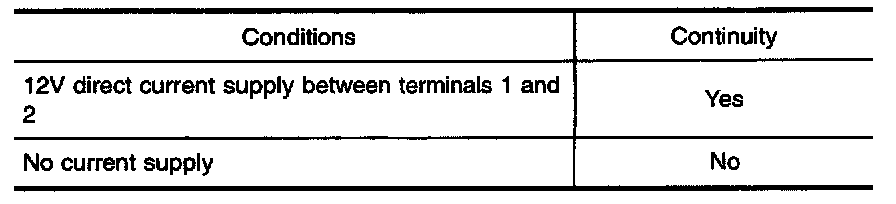

A/C Relay
Check continuity between terminals 3 and 5.
If NG, replace relay.

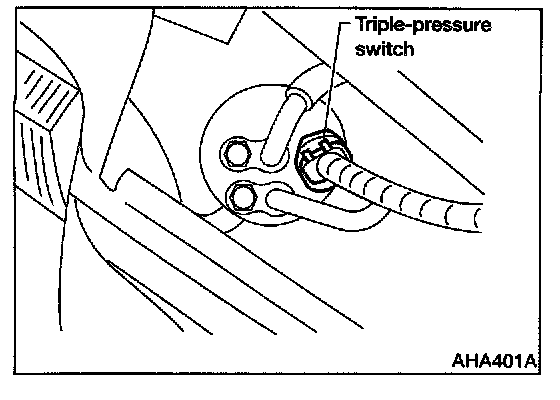

Triple Pressure Switch
Check continuity between terminals 1 and 3.

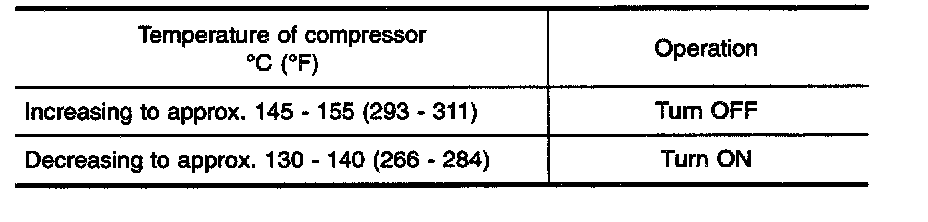

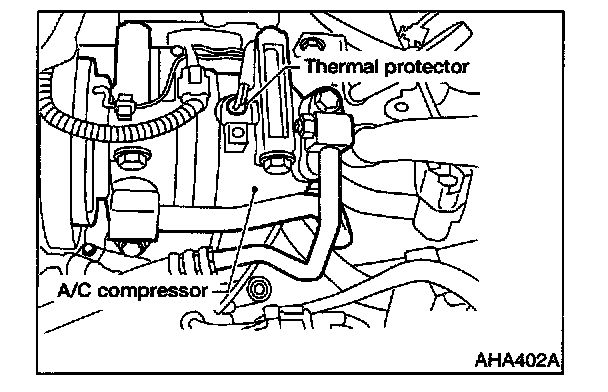

Thermal Protector

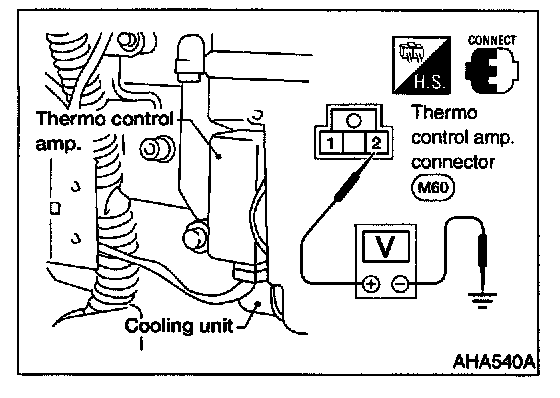

Thermo Control Amp.
1. Run engine and operate A/C system.
2. Connect the voltmeter from harness side.

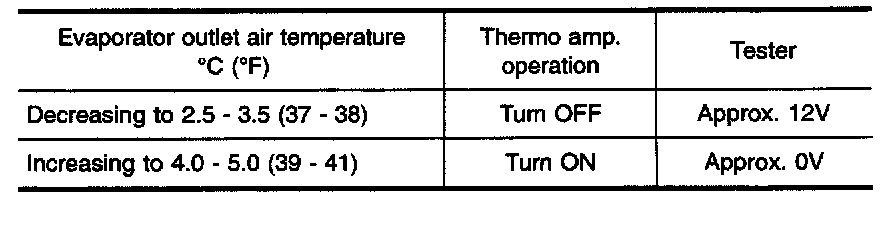

3. Check the thermo control amp. operation as shown in the table.
