TROUBLE DIAGNOSIS PROCEDURE FOR MODE DOOR SYMPTOM
- Mode door does not change.

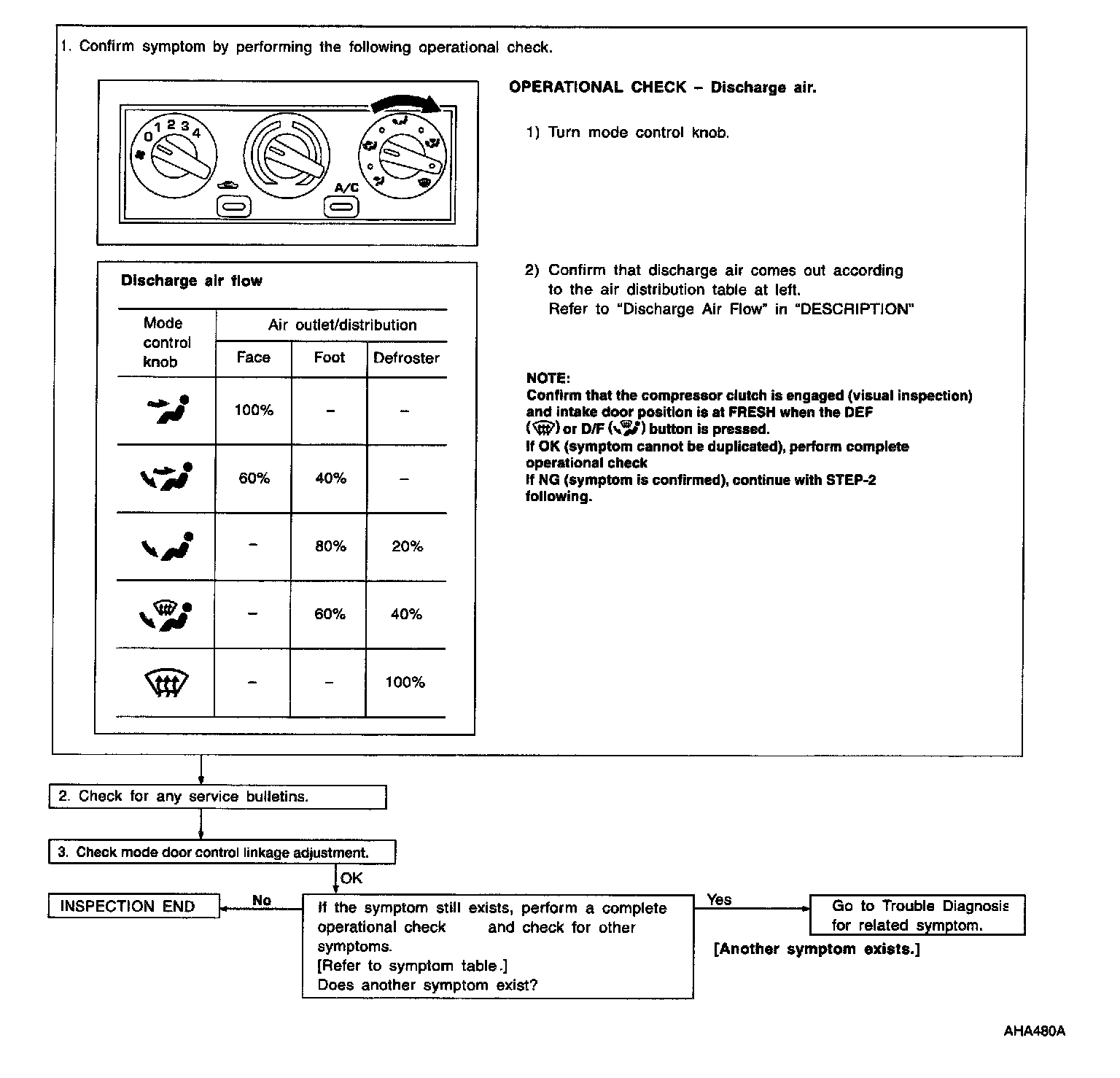

Inspection Flow




MODE DOOR MOTOR CONTROL LINKAGE ADJUSTMENT

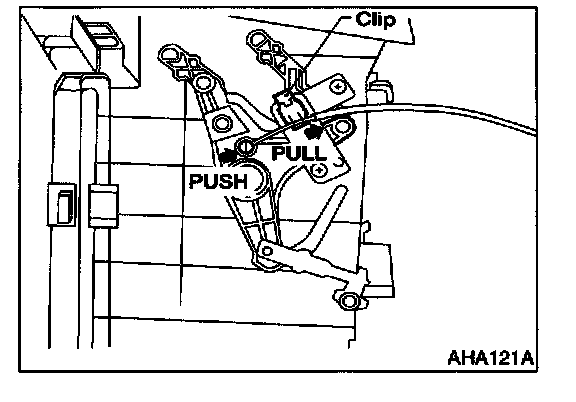

Mode door control linkage
- Turn mode door control knob to DEF position.
- Set side link in DEF mode.
- Pull on outer cable in direction of arrow and then clamp it.
- After positioning mode door control cable, check that it operates properly.
