BRC Diagrams (Brake Control System)
BRC Diagrams (Brake Control System)
ABS

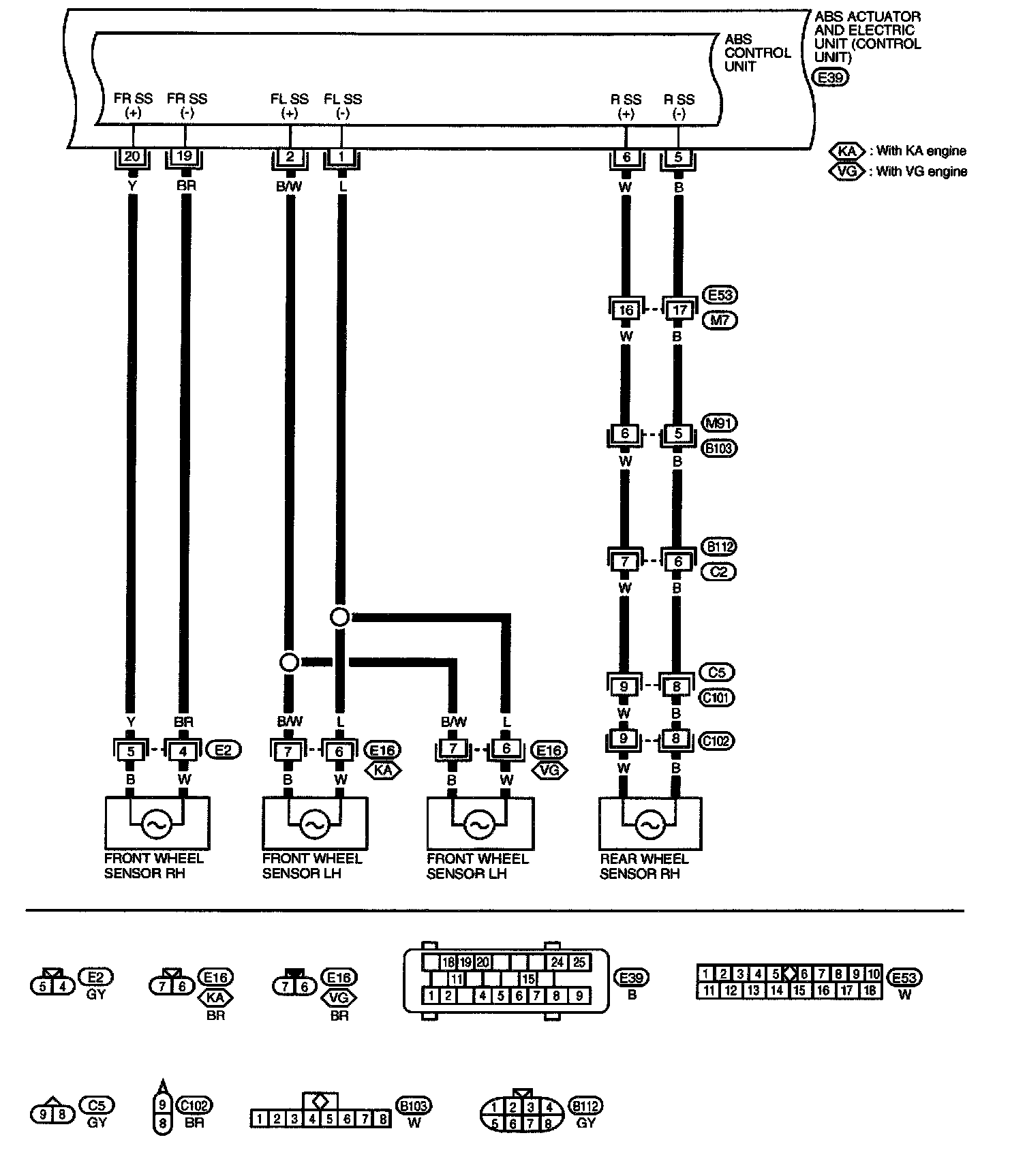

Wiring Diagram - ABS - 2WD: Part 1 Of 3:

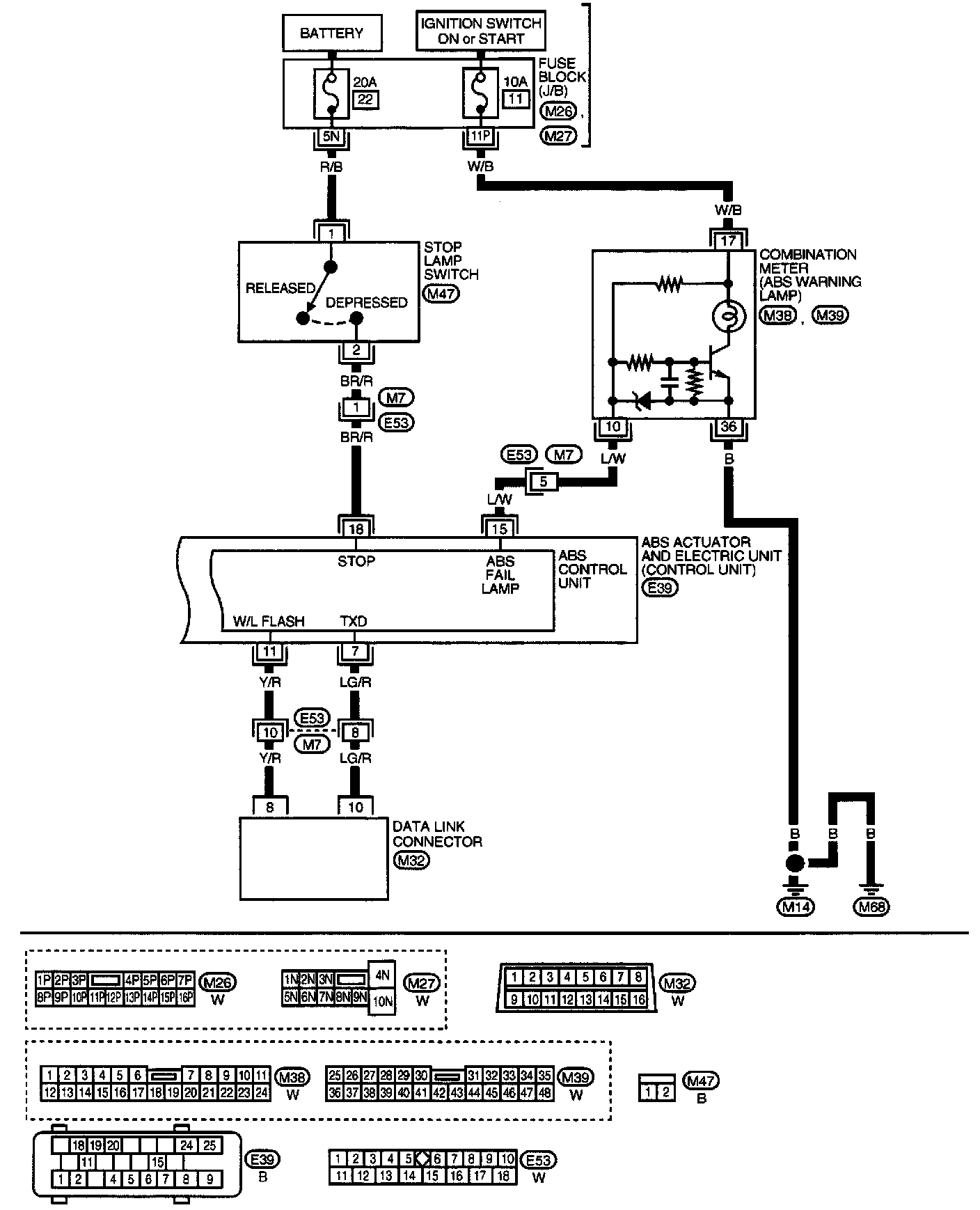

Wiring Diagram - ABS - 2WD: Part 2 Of 3:
Wiring Diagram - ABS - 2WD: Part 3 Of 3:
