ASCD Component Inspections

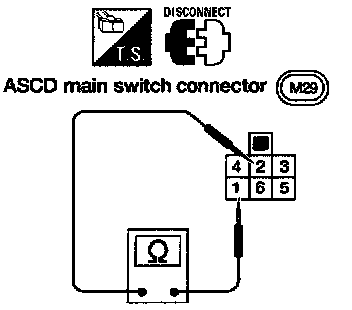

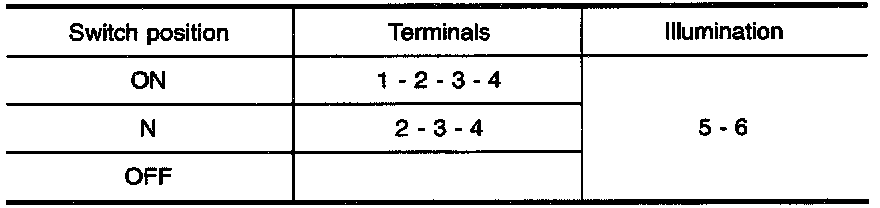

ASCD MAIN SWITCH
Check continuity between terminals by pushing switch to each position.

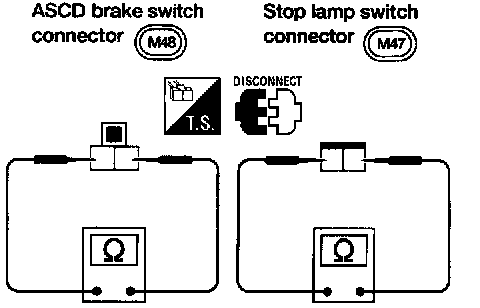

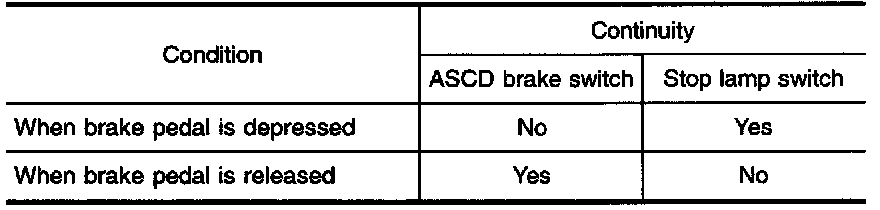

ASCD BRAKE SWITCH AND STOP LAMP SWITCH
Check each switch after adjusting brake pedal.

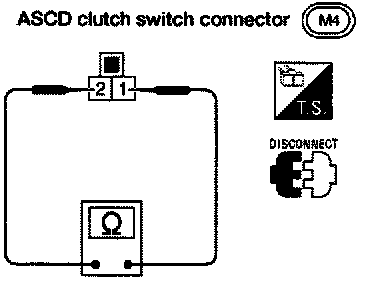

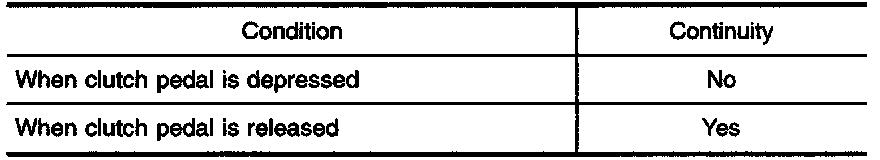

ASCD CLUTCH SWITCH (FOR M/T MODELS)

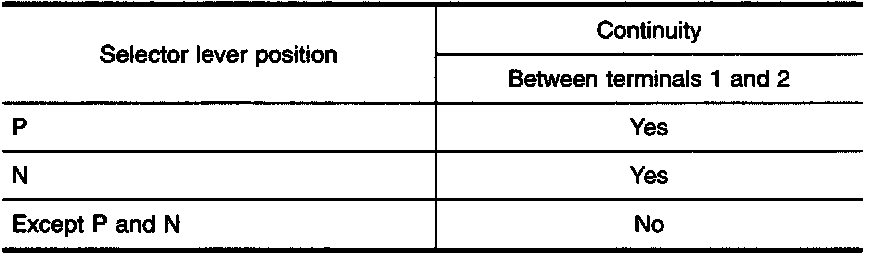

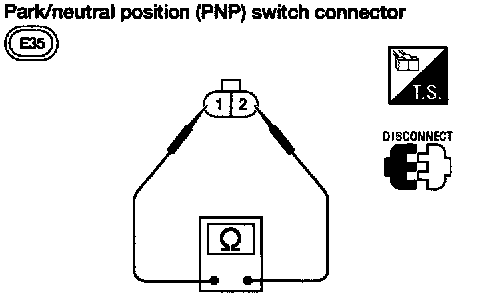

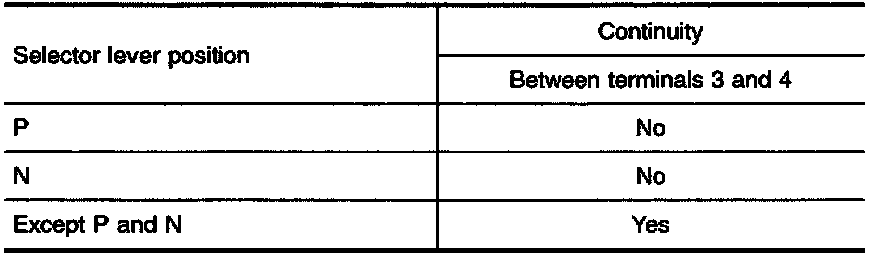

PARK/NEUTRAL POSITION SWITCH (FOR A/T MODELS)







ASCD RELAY (A/T MODELS)
