Front Drive Shaft

DISASSEMBLY

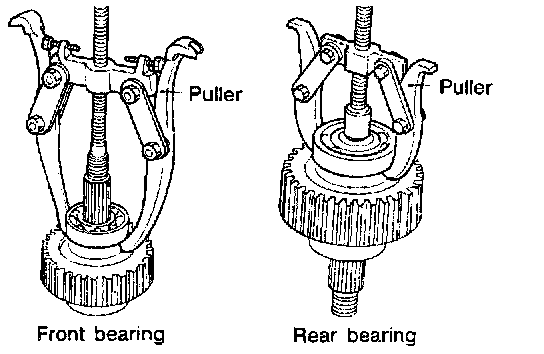

- Front drive shaft front bearing and rear bearing

INSPECTION





Sprocket and Shaft
- Check sprocket for excessive wear, chips or cracks.
- Check shaft for cracks or wear.

Bearing
- Make sure bearings roll freely and are free from noise, crack, pitting or wear.

ASSEMBLY





- Press front drive shaft front bearing and rear bearing.
