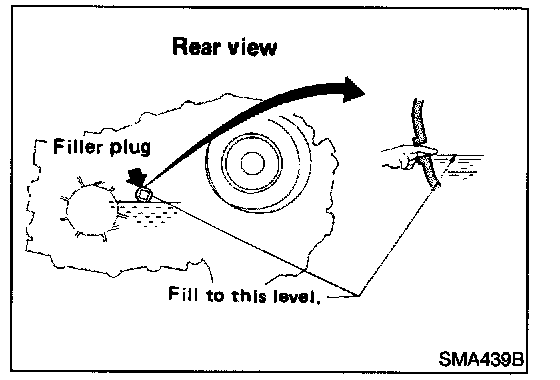

Checking Transfer Case Fluid
Check for fluid leakage and fluid level.
A/T fluid is used for the transfer case in the factory. Never start engine while checking fluid level.
Filler plug:
Tightening Torque: 25 - 34 Nm (2.5 - 3.5 kg.m, 18 - 25 ft.lb)
