Disassembly and Assembly

DISASSEMBLY





- Remove grease seal and bearing outer races with suitable brass bar.

INSPECTION
Thoroughly clean wheel bearings and wheel hub.

Wheel Bearing
- Make sure wheel bearing rolls freely and is free from noise, crack, pitting and wear.

Wheel Hub
- Check wheel hub for crack by using a magnetic exploration or revving tent

ASSEMBLY

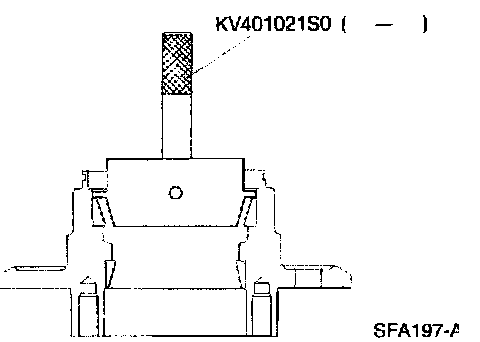

1. Install bearing outer race with Tool until it seats in hub.





2. Pack multi-purpose grease into wheel hub.-4WD-





3. Apply multi-purpose grease to each bearing cone.
4. Pack grease seal lip with multi-purpose grease, then install it into wheel hub with suitable drift.
