Outer Component Parts

WARM-UP THREE WAY CATALYST





1. Remove front tube nut RH and LH.
2. Loosen exhaust mount insulator bolt.
3. Remove rear heated oxygen sensor. Use SST KV10114400 (J38365).

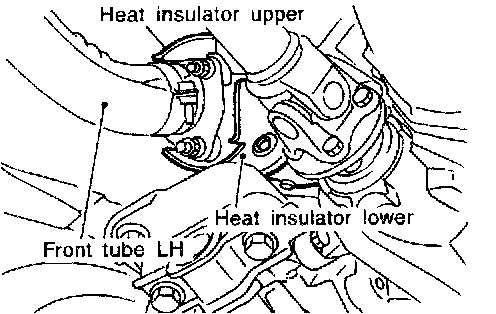

4. Remove front tube LH side.





5. Remove heat insulator upper side.
6. Remove heat insulator lower side.

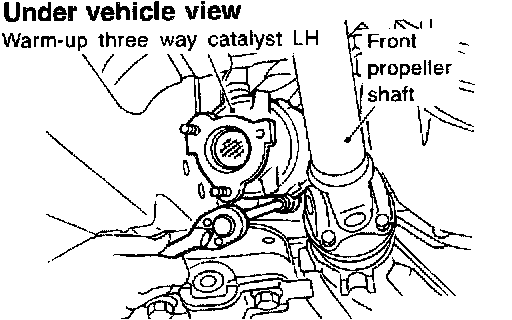

7. Remove warm-up three way catalyst.
8. Installation is in reverse order of removal.
