Electrical Diagrams

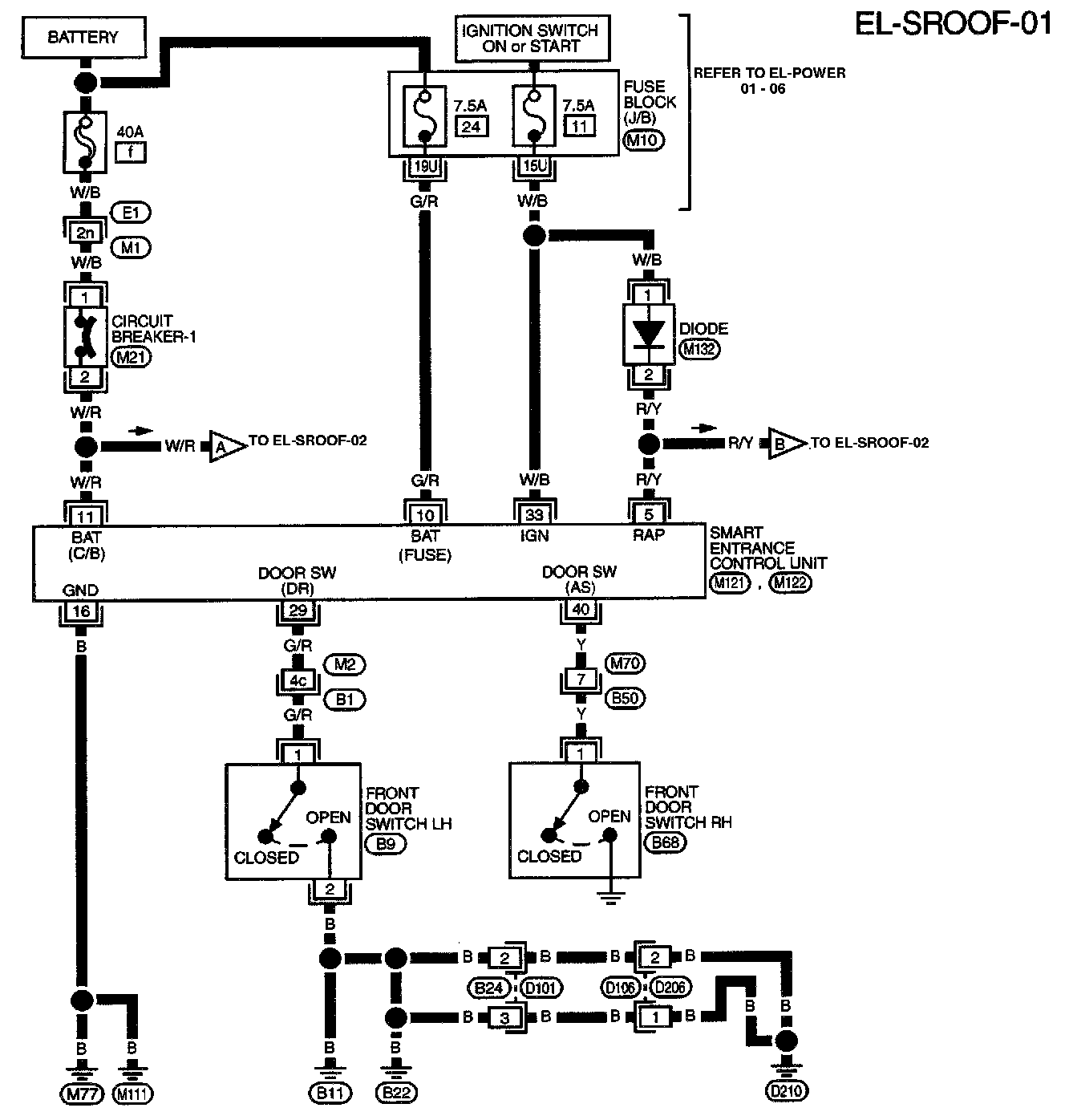

EL-SROOF-01:

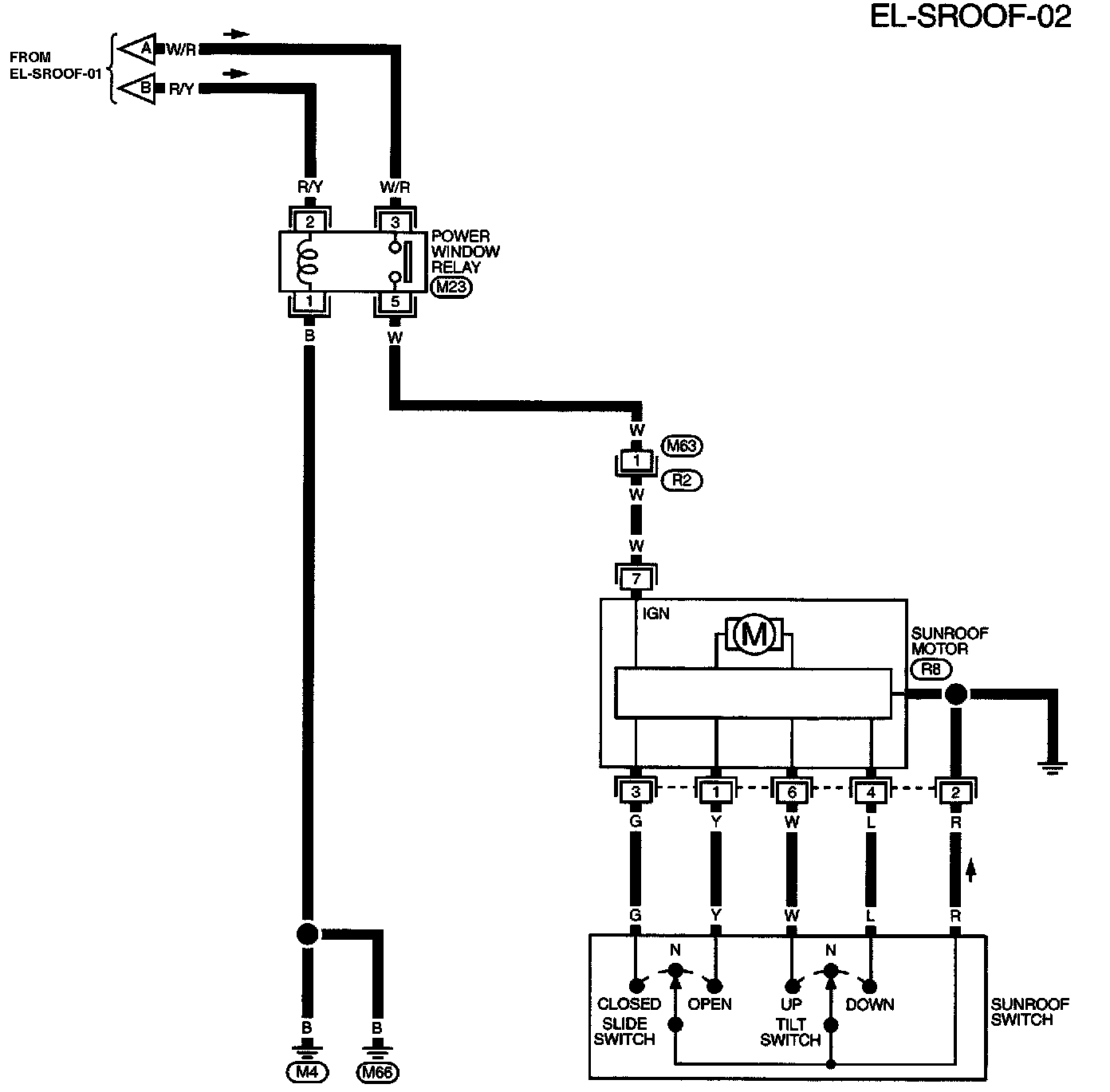

EL-SROOF-02:
Circuit Diagrams
Part 1 Of 2:
Part 2 Of 2:

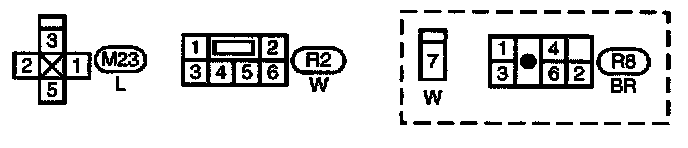

Circuit Connectors
Main Harness, Engine Room, And Body Harness Connector Views:
Fuse Block J/B Connector Views:
B1, E1, M1, M2, M10 Super Multiple Junction Box (SMJ) and Fuse Block - Junction Box (J/B) Terminal Arrangement
