Front Bumper: Service and Repair

- When removing or installing hood, place a cloth or other padding on front tender panel and cowl top. This prevents vehicle body from being scratched.
- Bumper fascia is made of plastic. Do not use excessive force and be sure to keep oil away from it.
- Hood adjustment: Adjust at hinge portion.
- Hood lock adjustment: After adjusting, check hood lock control operation. Apply a coat of grease to hood locks engaging mechanism.
- Hood opener: Do not attempt to bend cable forcibly. Doing so increases effort required to unlock hood.

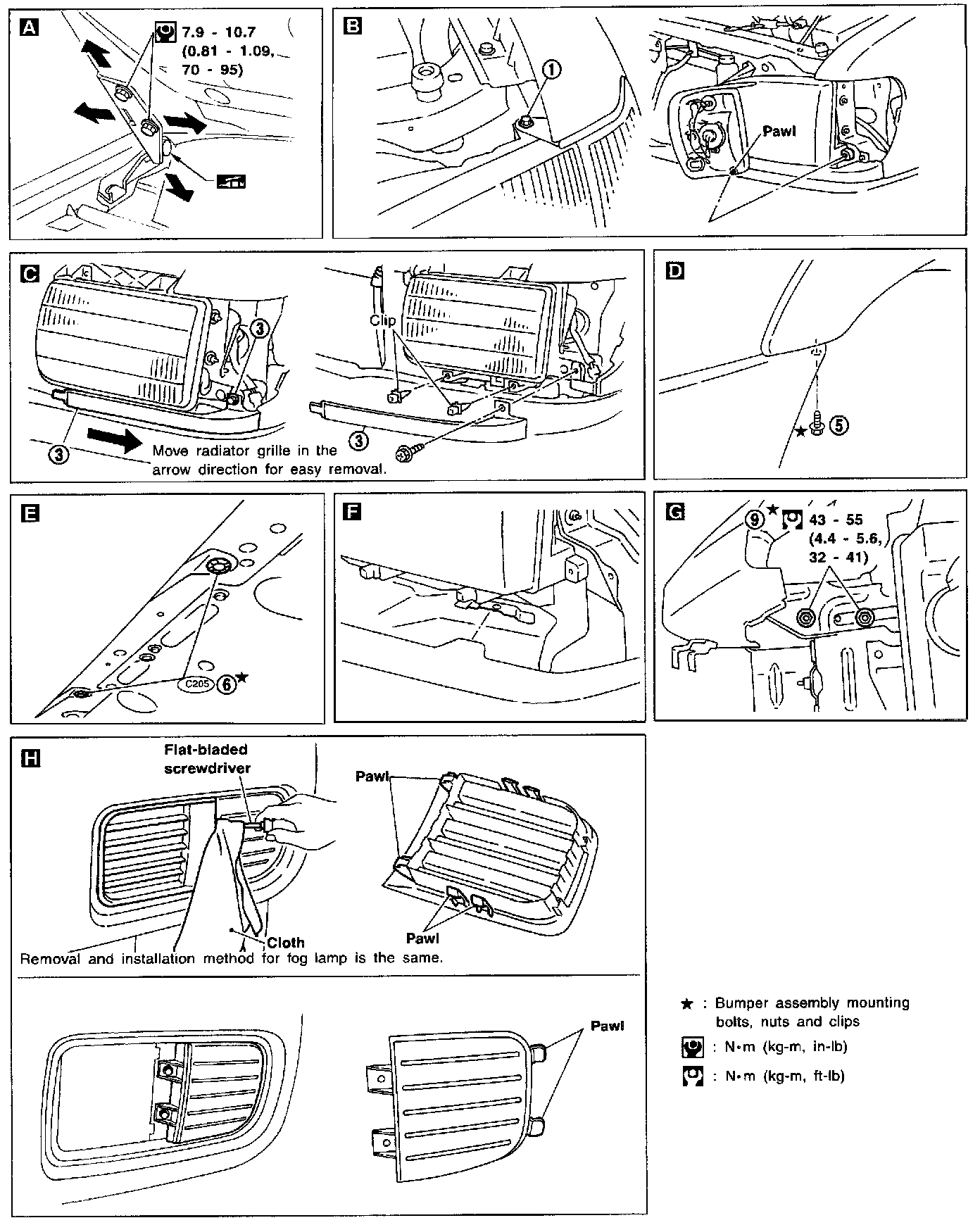

Part 1 Of 2:

Part 2 Of 2:

FRONT BUMPER ASSEMBLY
1. Remove bolts securing left and right side combination lamps and remove the lamps. [B]
2. Remove clips securing center radiator grille and remove the center radiator grille.
3. Remove bolts securing left and right radiator grille and remove the grilles. [C]
4. Remove clips and screws securing left and right sides of fender protector.
5. Remove screws securing bumper fascia. [D]
6. Remove clips securing radiator core support lower. [E]
7. Remove clips securing bumper reinforcement.
8. Extract bumper fasica. [F]
9. Remove bolts and nuts securing bumper reinforcement. [G]
10. Extract bumper reinforcement. (When installing bumper reinforcement, remove washer tank.)
