Rear Wiper and Washer

WIPER ARMS
1. Prior to wiper arm installation, turn on wiper switch to operate wiper motor and then turn it "OFF" (Auto Stop).
2. Install wiper arm to portion A as in figure below and tighten wiper arm nut to specification.
3. Then, set wiper arm to portion B.
With Tightening Torque: 13 - 18 Nm (1.3 - 1.8 kg.m, 9 - 13 ft.lb)

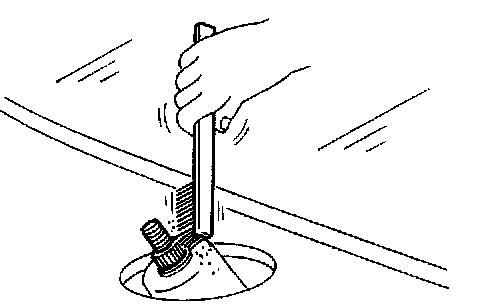

- Before reinstalling wiper arm, clean up the pivot area as illustrated. This will reduce possibility of wiper arm looseness.
