Rear

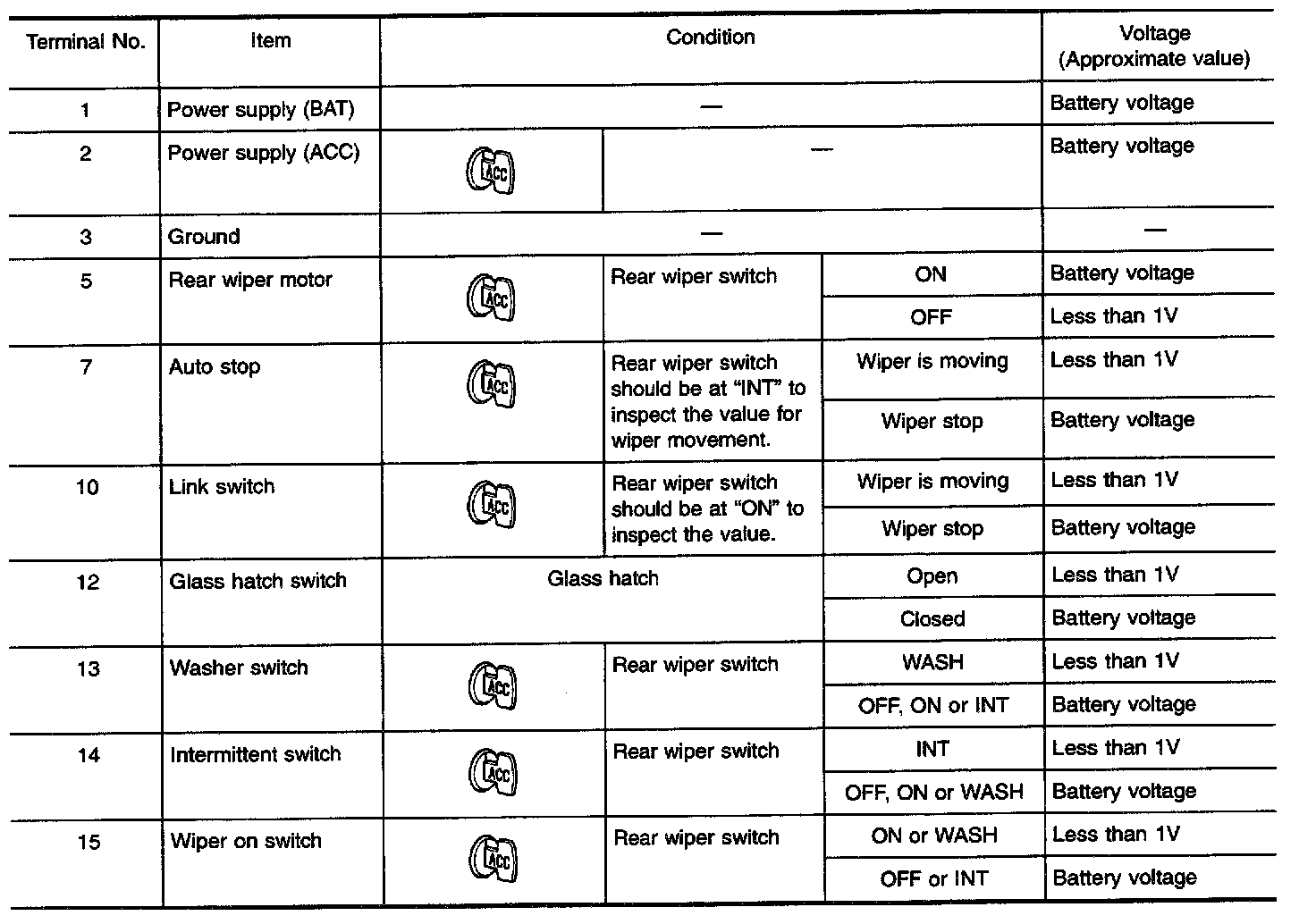

REAR WIPER AMP. INSPECTION TABLE
(Data are reference values.)

NOTE: Power to the rear wiper amp. will be interrupted when the rear glass hatch is opened. In that case, conduct the inspection of the rear wiper amp. with the rear glass hatch closed, unless otherwise indicated.
