Home >> Nissan-Datsun Truck >> 2000 >> Pathfinder XE 2WD V6-3.3L (VG33E) >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Front

Front

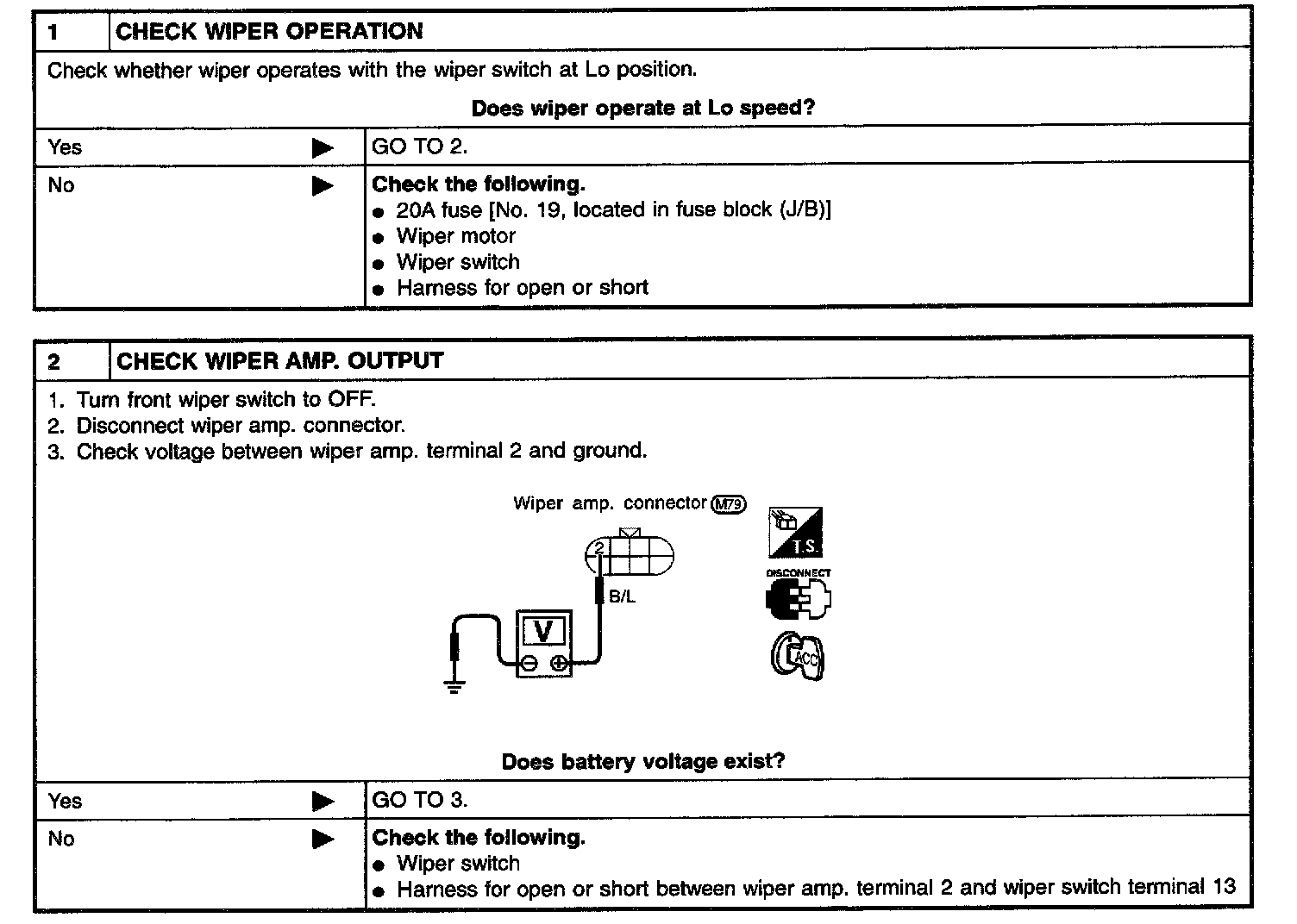

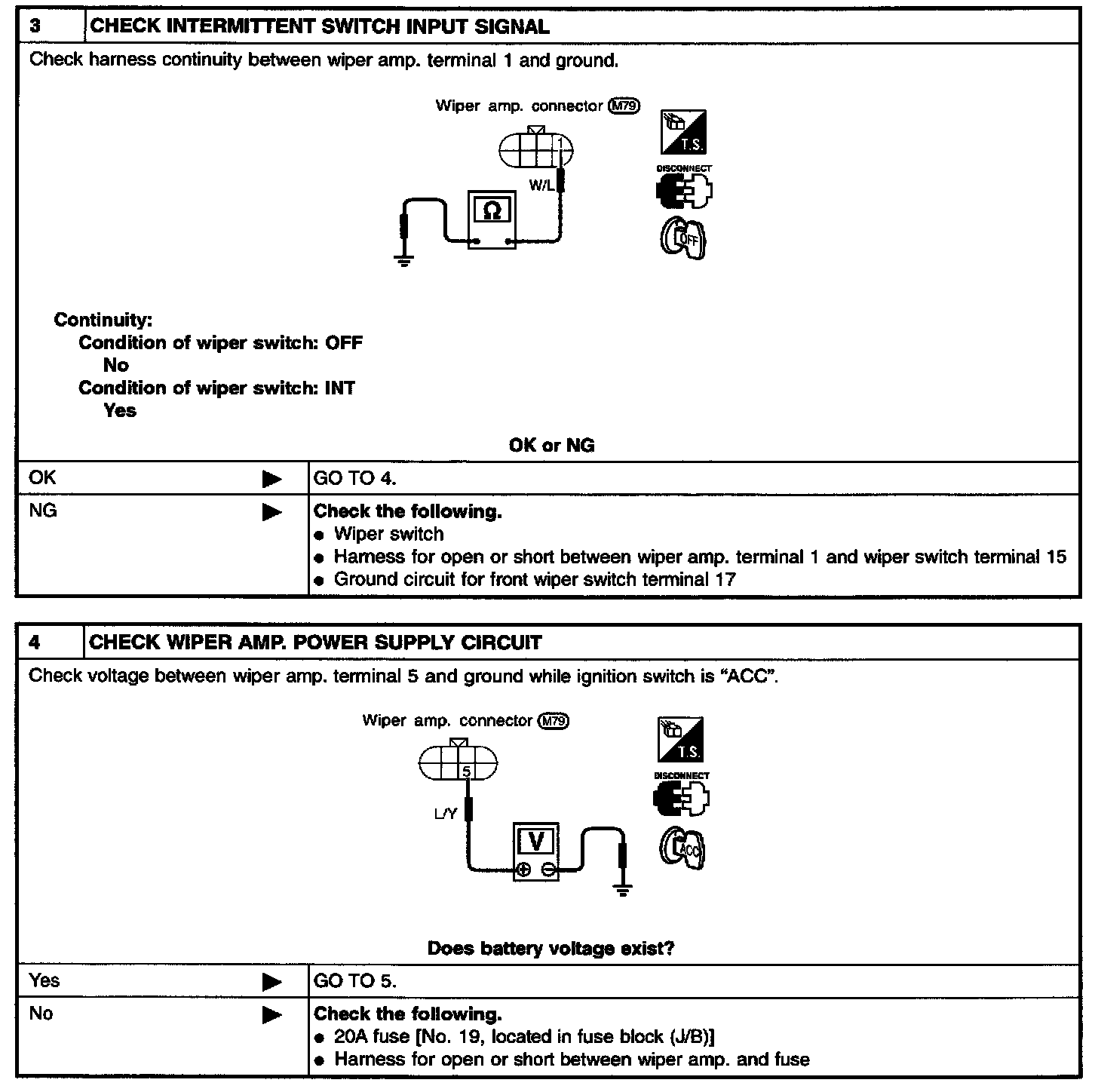

DIAGNOSTIC PROCEDURE 1
SYMPTOM: Intermiffent wiper does not operate.

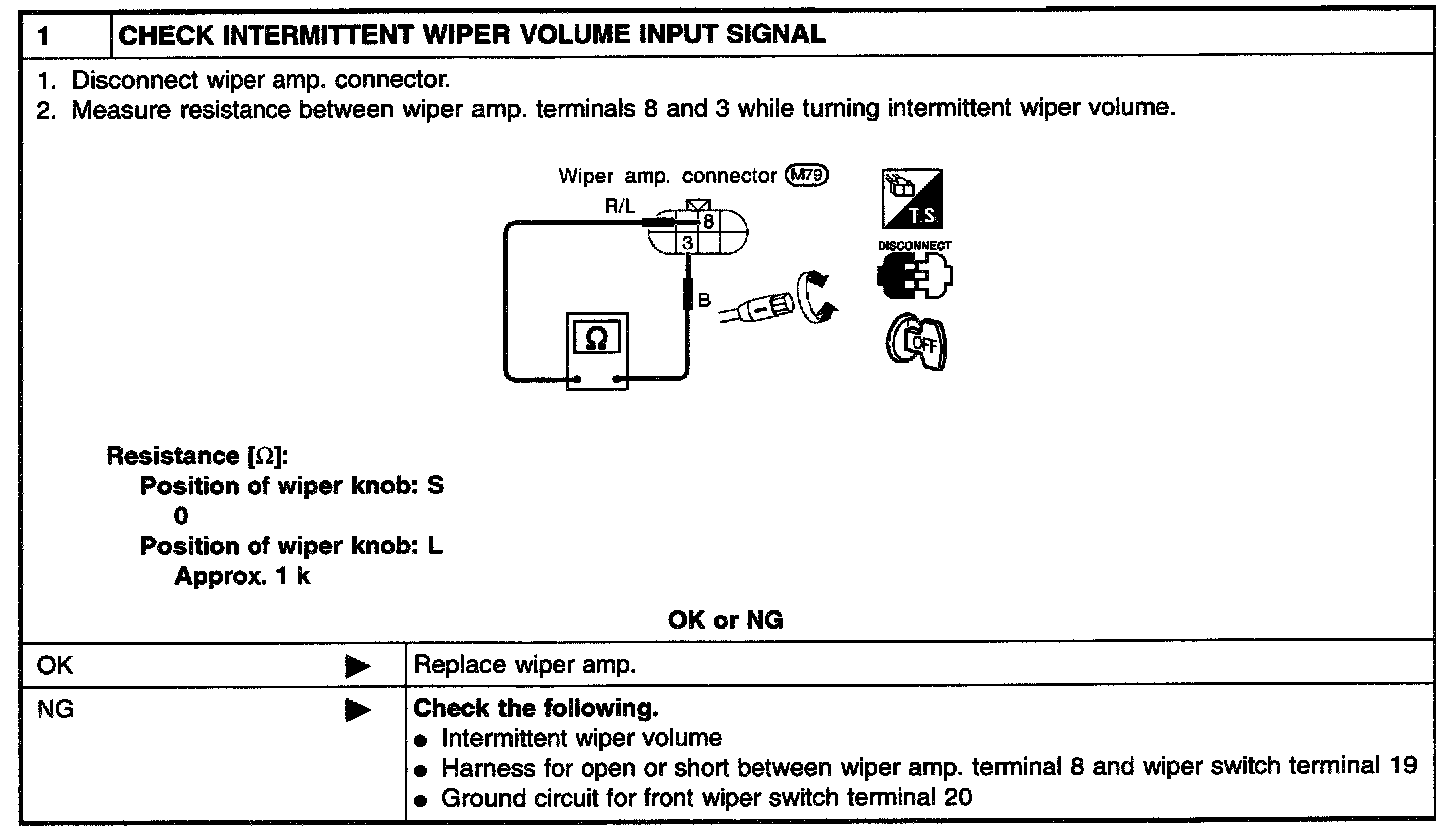

DIAGNOSTIC PROCEDURE 2
SYMPTOM: Intermittent time of wiper cannot be adjusted.

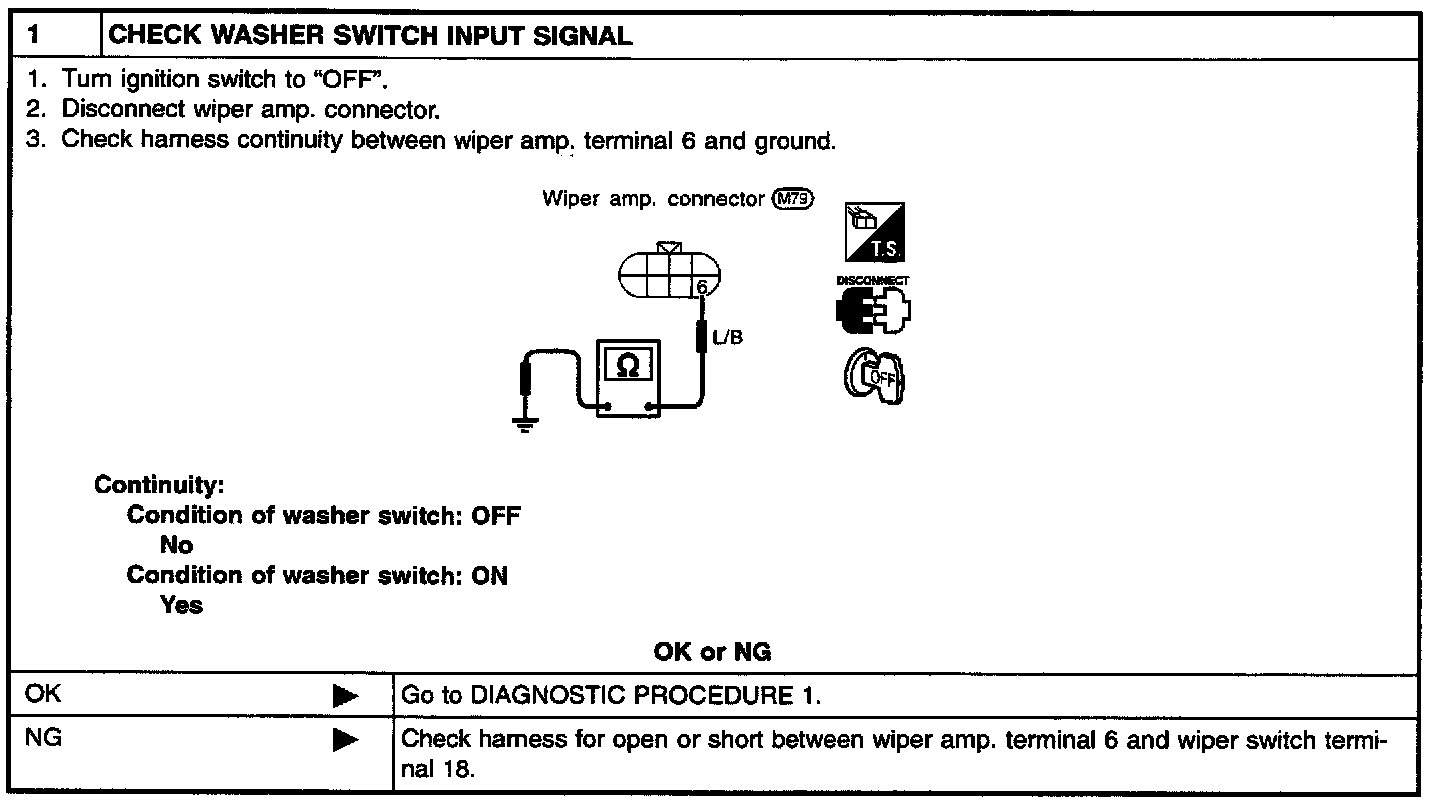

DIAGNOSTIC PROCEDURE 3
SYMPTOM: Wiper and washer activate individually but not in combination.
