Symptom Related Diagnostic Procedures

Diagnostic Procedure

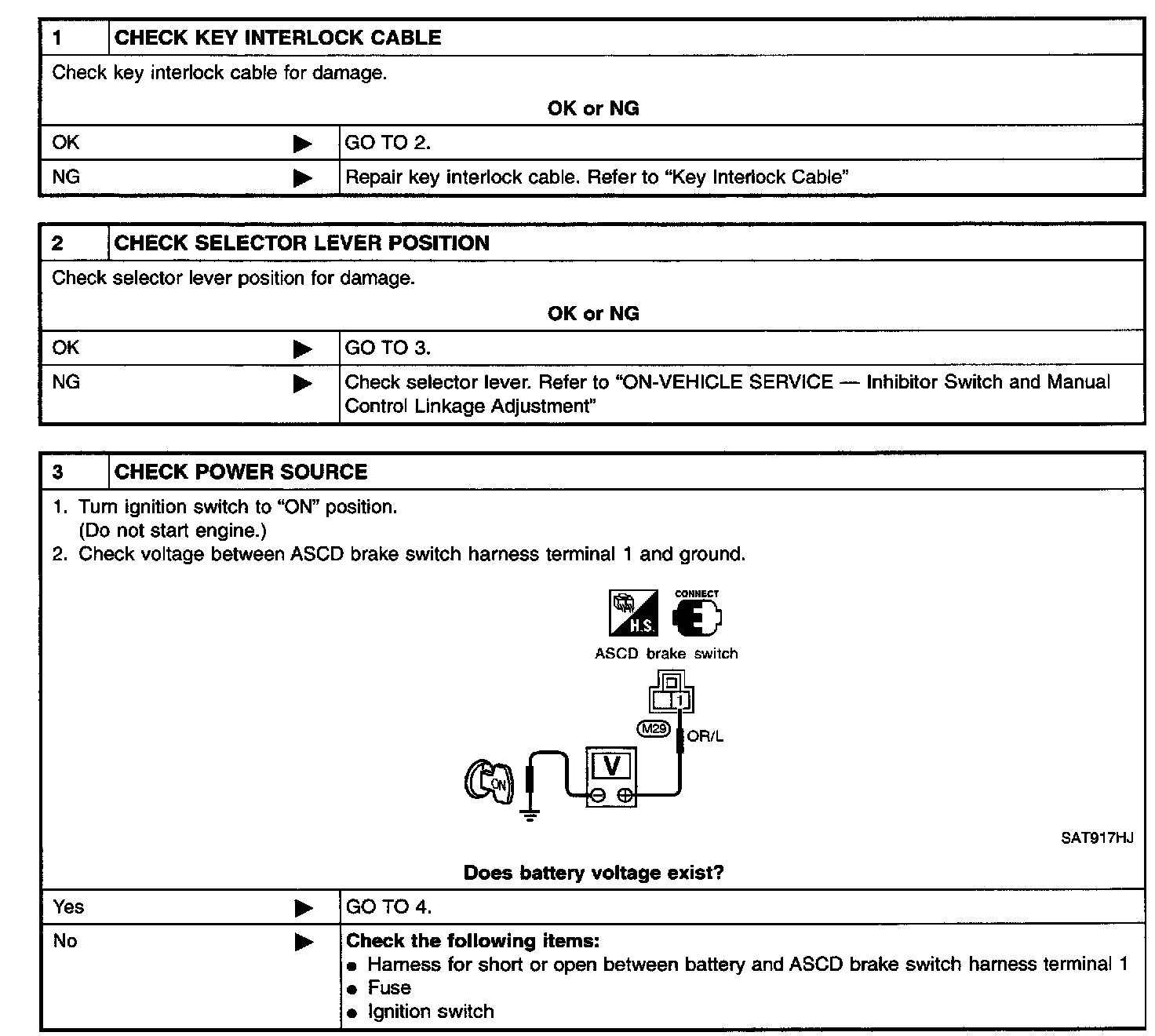

1 through 3

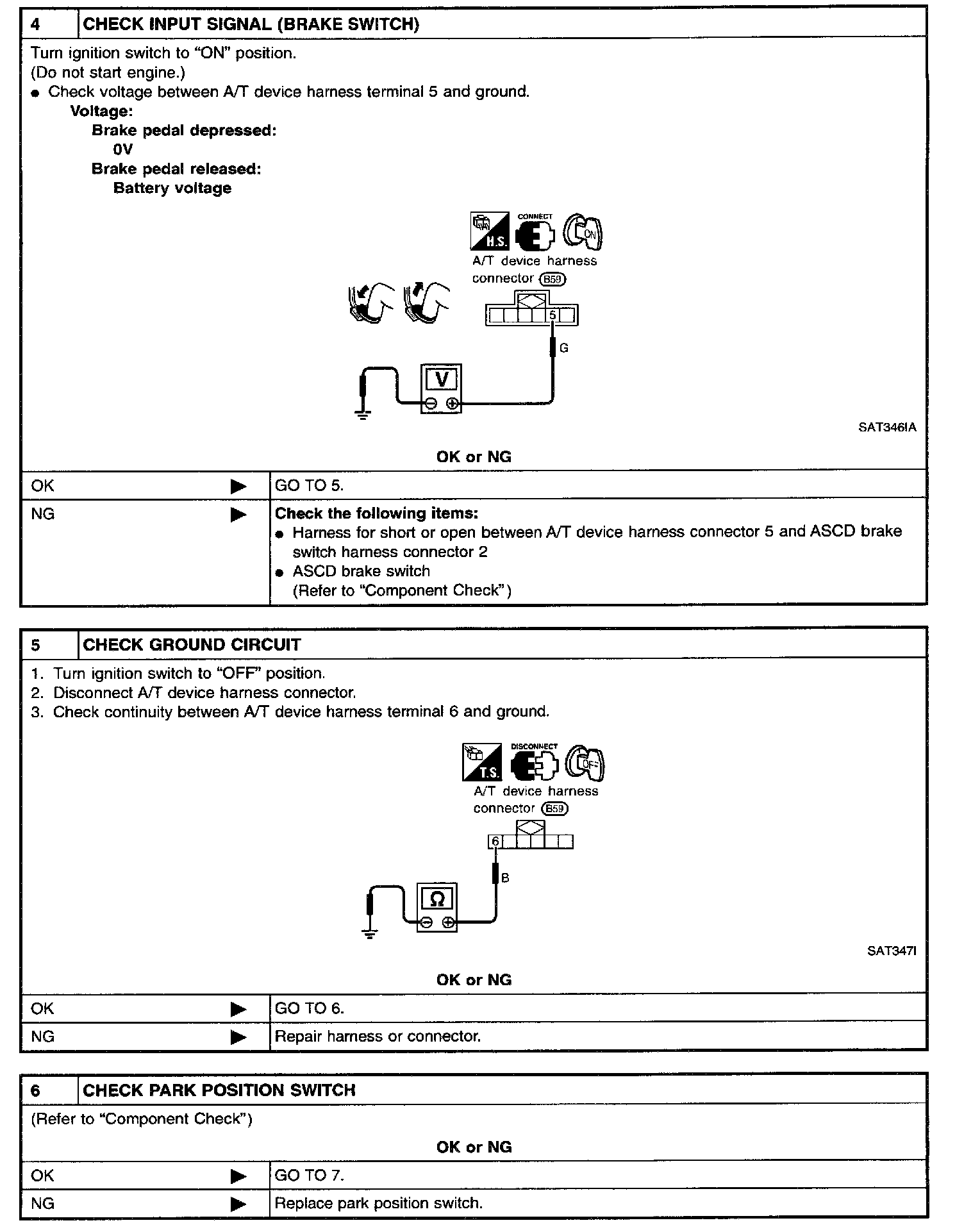

4 through 6

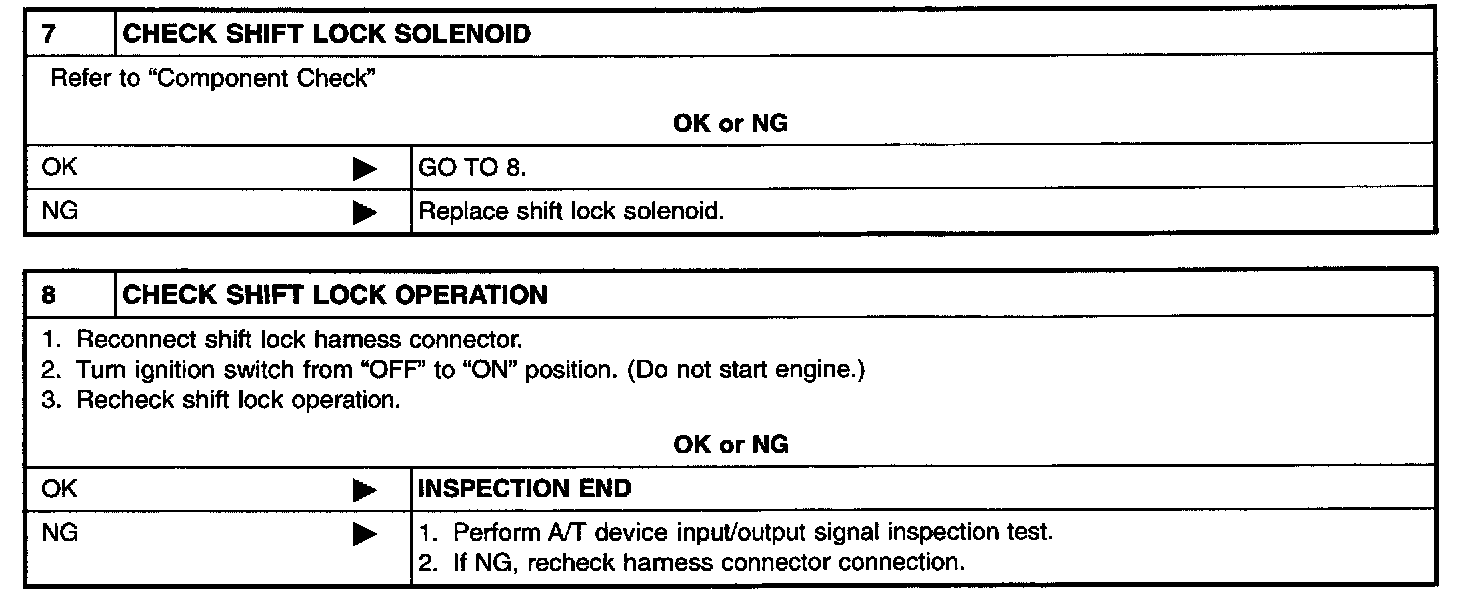

7 and 8

SYMPTOM 1:
- Selector lever cannot be moved from "P" position with key in "ON" position and brake pedal applied.
- Selector lever can be moved from "P" position with key in "ON" position and brake pedal released.
- Selector lever can be moved from "P" position when key is removed from key cylinder.

SYMPTOM 2:
- Ignition key cannot be removed when selector lever is set to "P" position. It can be removed when selector lever is set to any position except "P".
