Component Tests and General Diagnostics

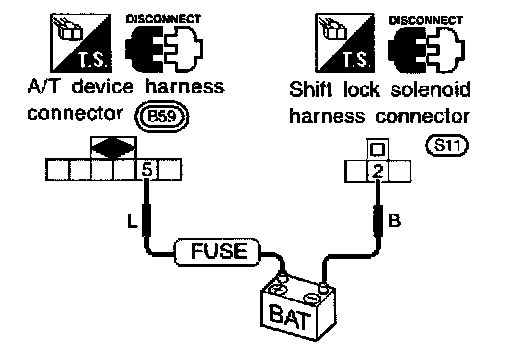

SHIFT LOCK SOLENOID





- Check operation by applying battery voltage between shift lock solenoid harness connector terminal 2 and A/T device harness connector terminal 5.

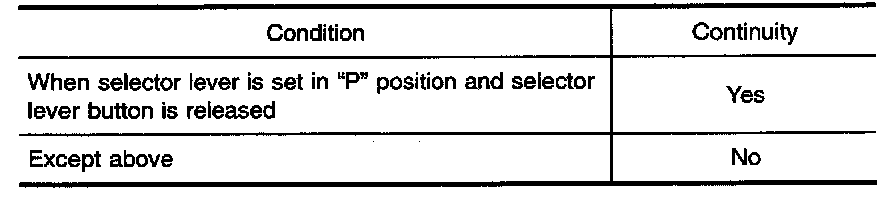

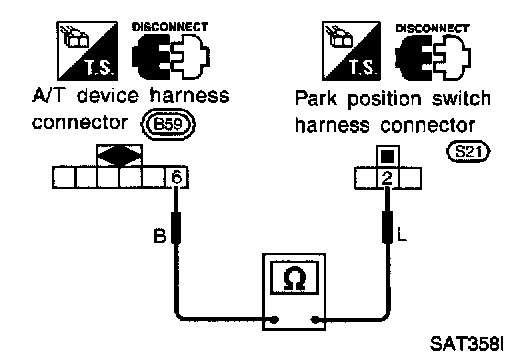

PARK POSITION SWITCH








- Check continuity between park position switch harness connector terminal 2 and A/T device harness connector terminal 6.

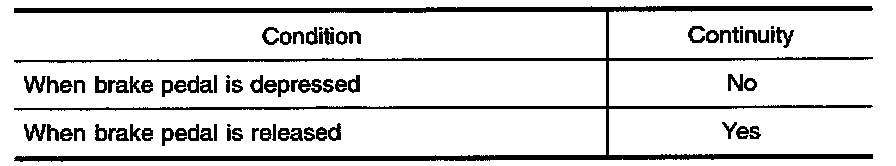

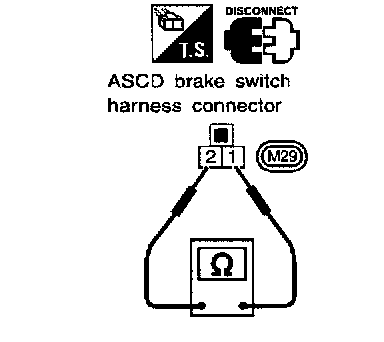

ASCD BRAKE SWITCH








- Check continuity between ASCD brake switch harness connector terminals 1 and 2.
Check ASCD brake switch after adjusting brake pedal-refer to Brakes and Traction Control.
