Ignition Power Supply - Ignition Switch In "ON" and/or "START"
Schematic

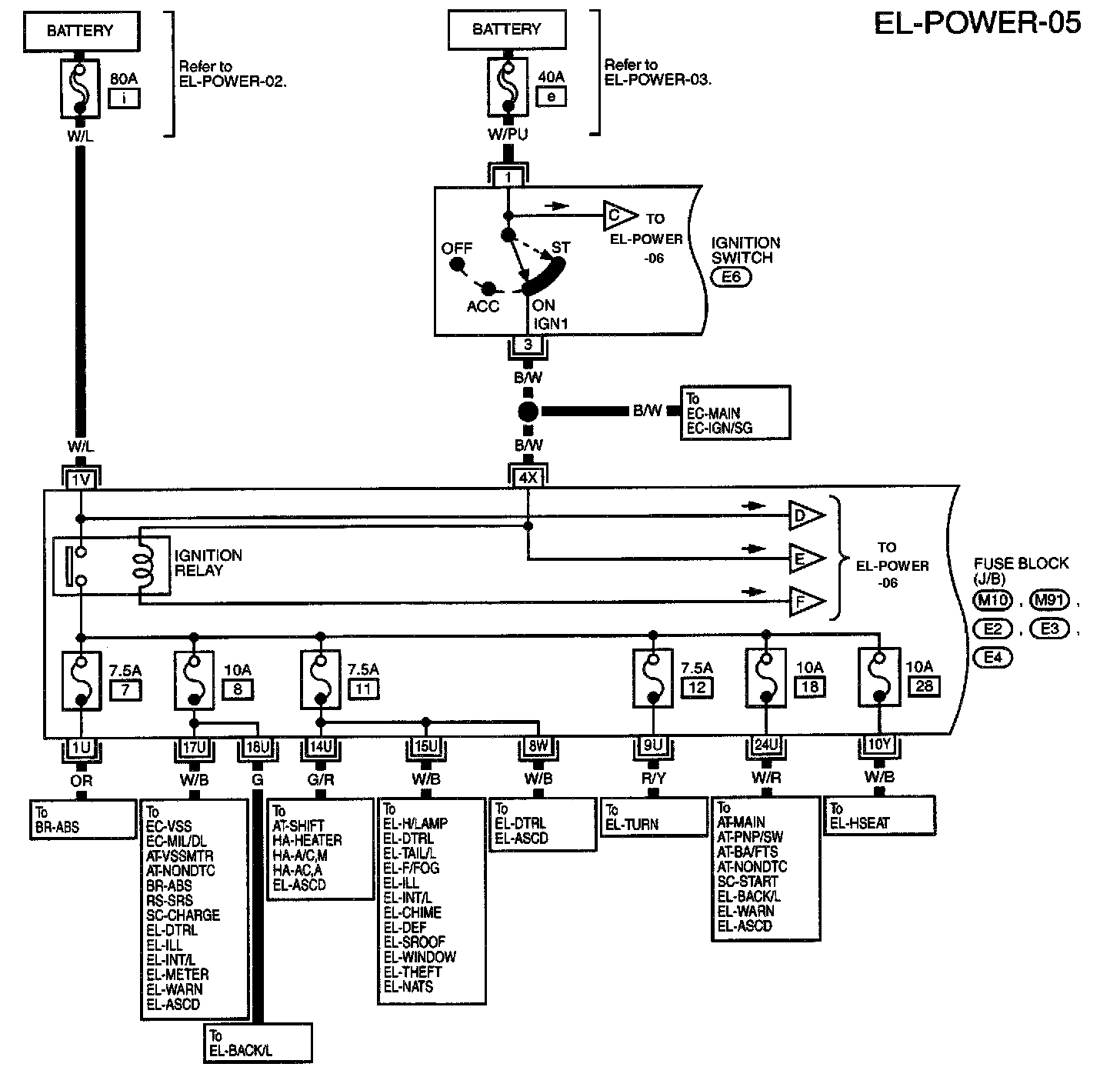

EL-Power-05:
(Part 1 Of 2)
Ignition
Ignition Switch
Fuse Block (J/B)

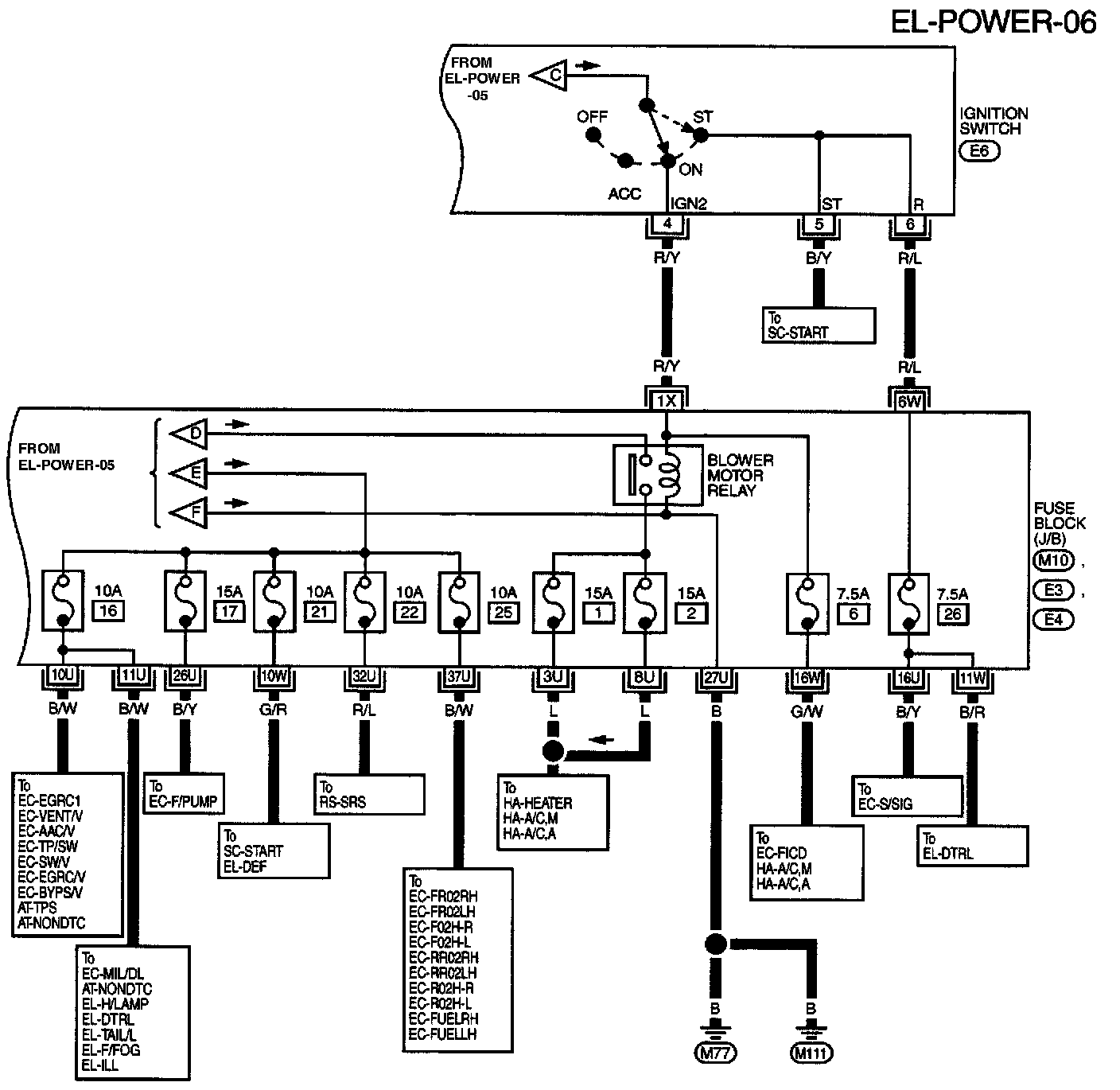

EL-Power-06:
(Part 2 Of 2)
Ignition Switch
Fuse Block (J/B)

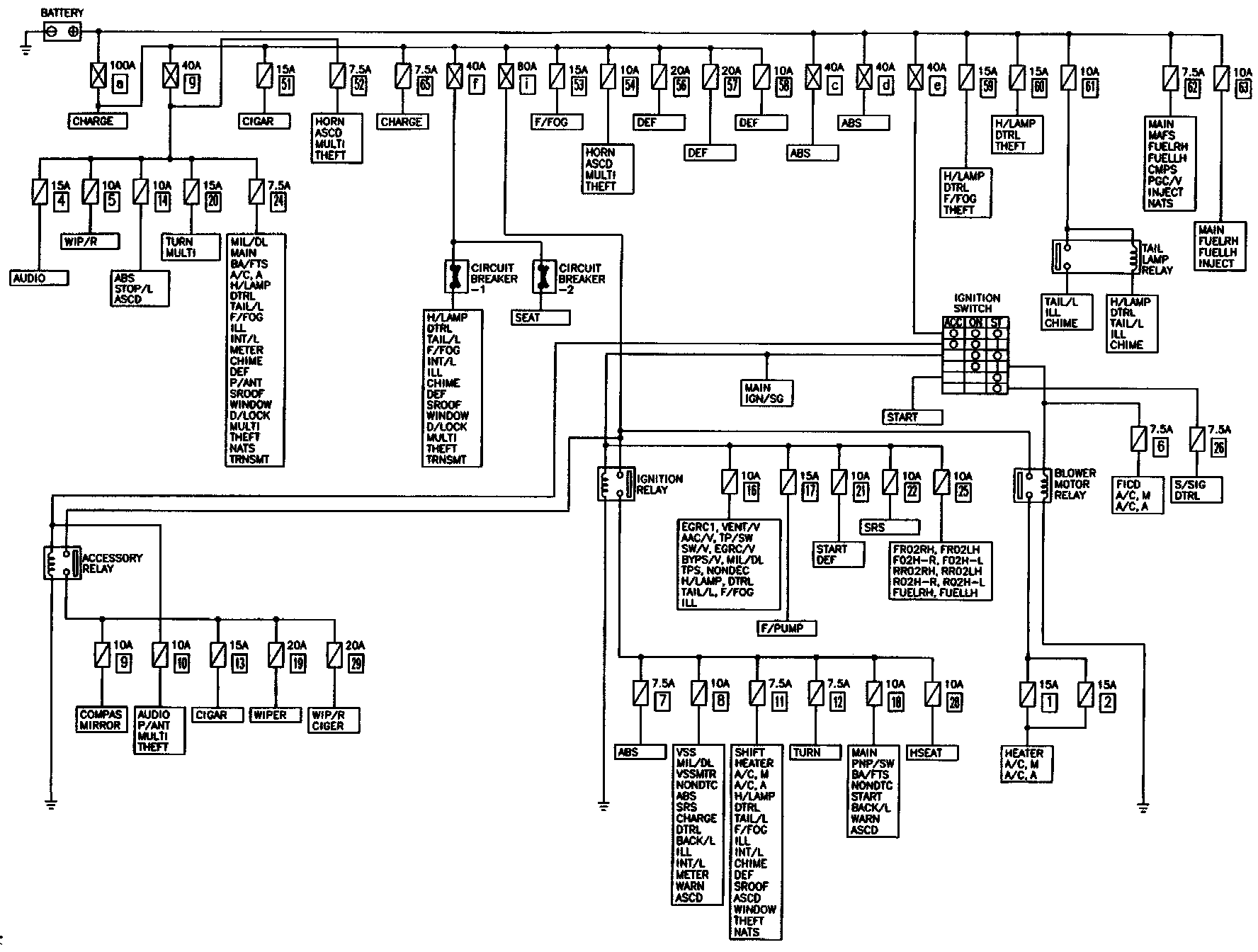

Circuit Diagrams
Circuit Connectors

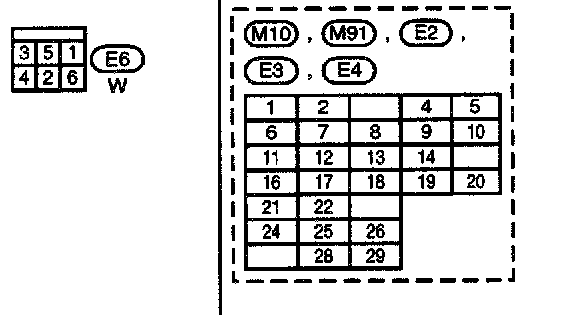

Fuse Block J/B Connector Views:
E2, E3, E4, M10, M91 Fuse Block - Junction Box (J/B) Terminal Arrangement
