Battery Power Supply - Ignition Switch In Any Position
Schematic

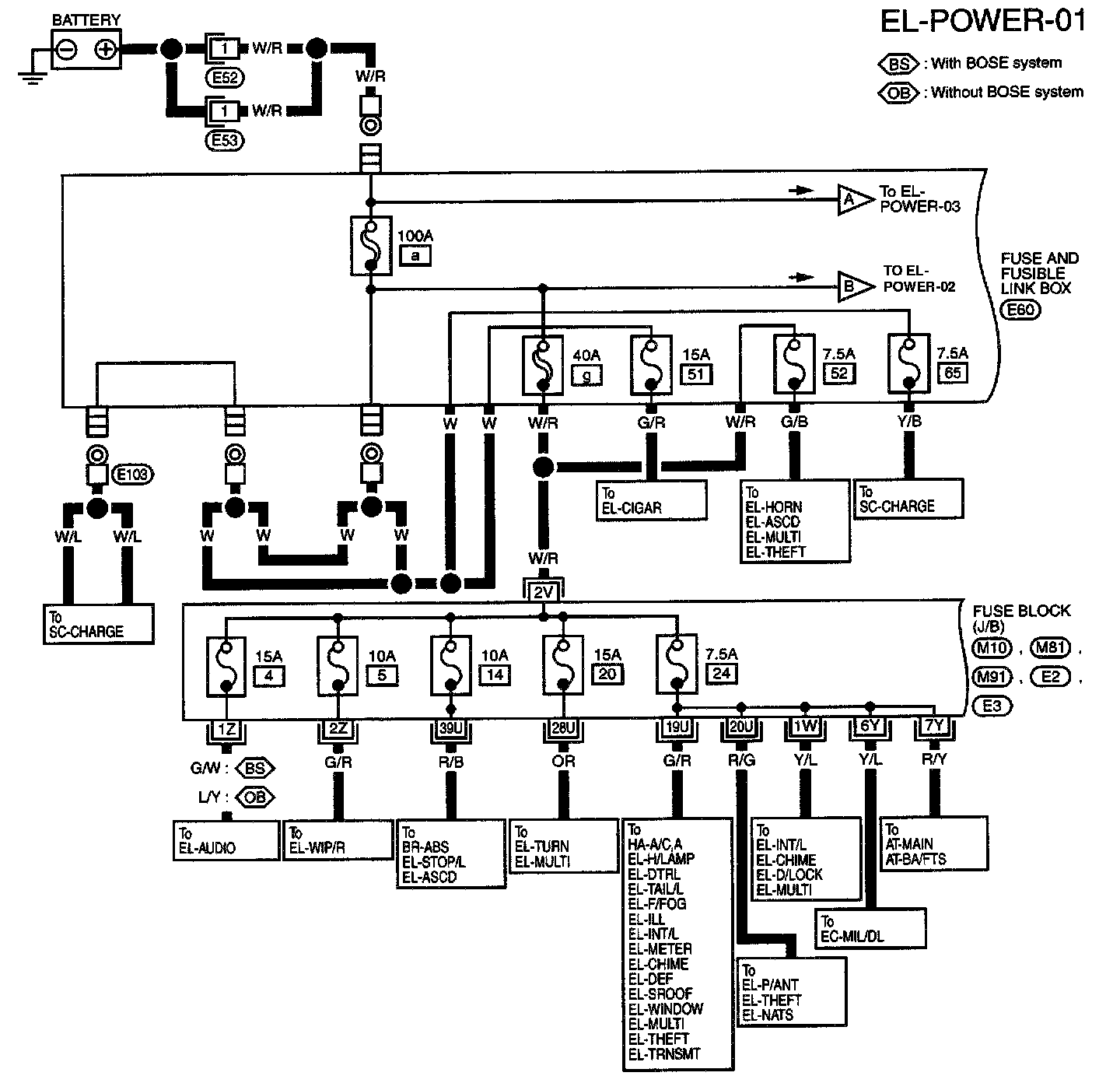

EL-Power-01:
(Part 1 Of 3)
Battery
Fuse and Fusible Link Box
Fuse Block (J/B)

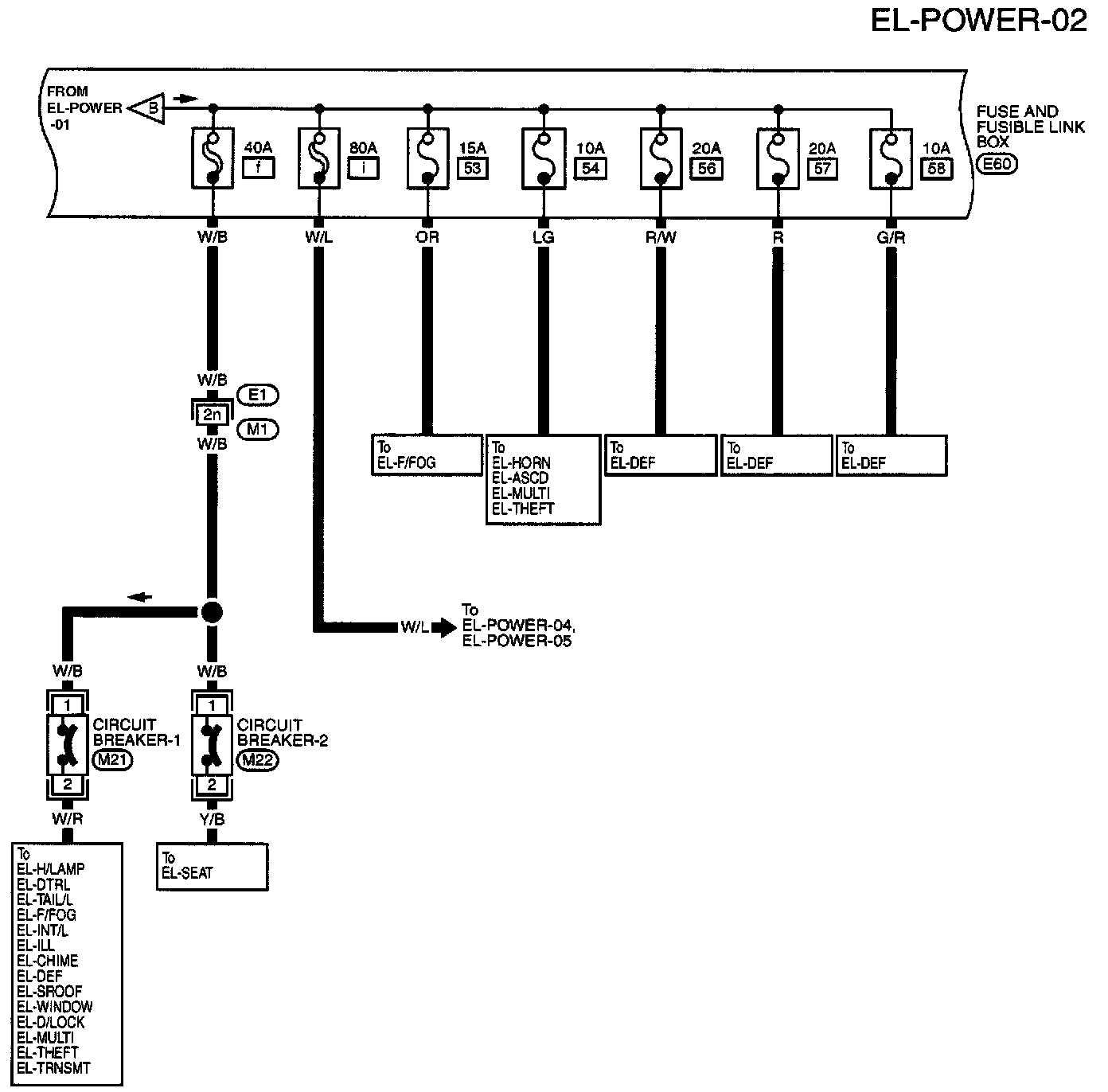

EL-Power-02:
(Part 2 Of 3)
Fuse and Fusible Link Box

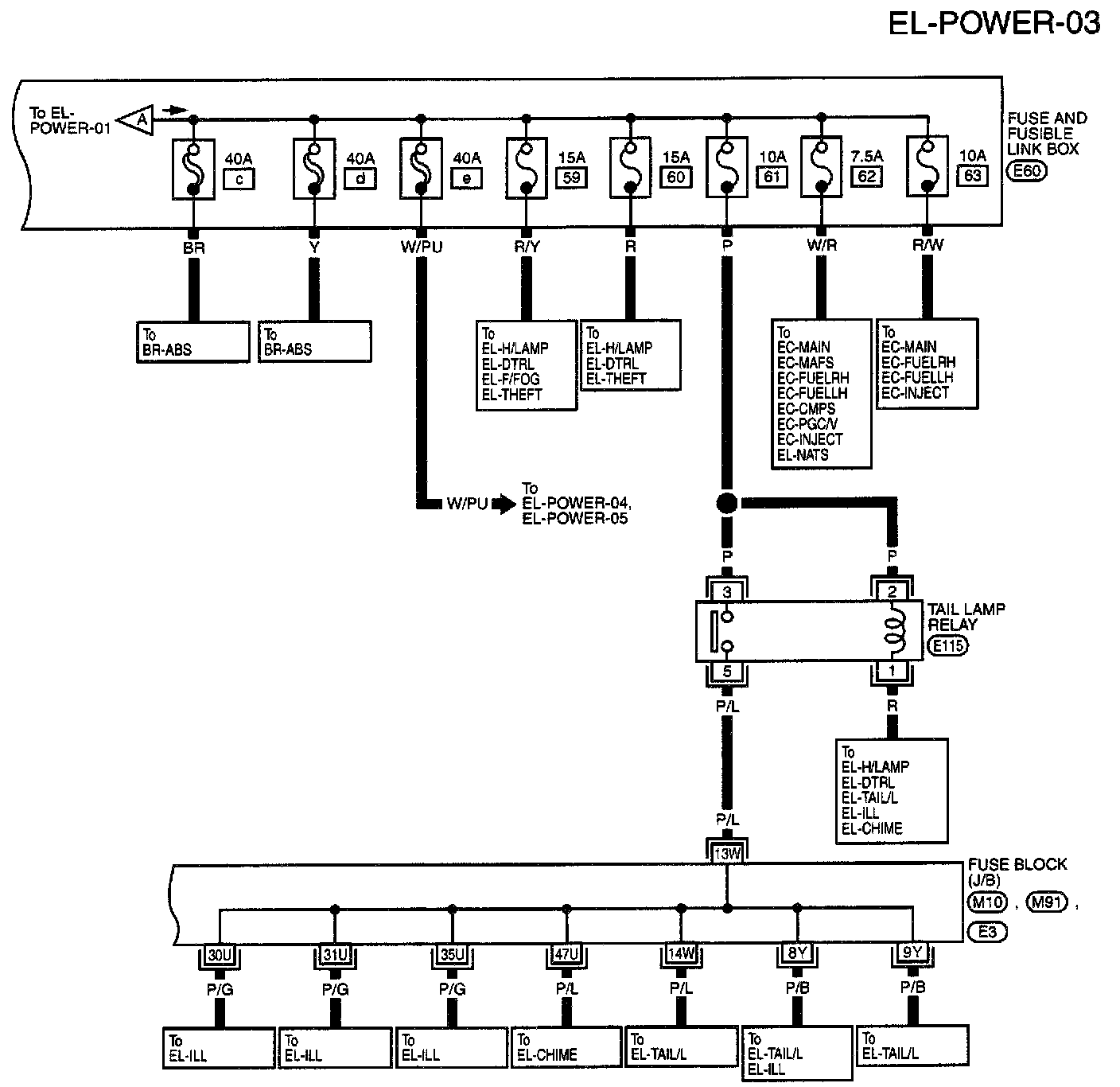

EL-Power-03:
(Part 3 Of 3)
Fuse and Fusible Link Box
Tail Lamp Relay
Fuse Block (J/B)
Circuit Diagrams
Circuit Connectors

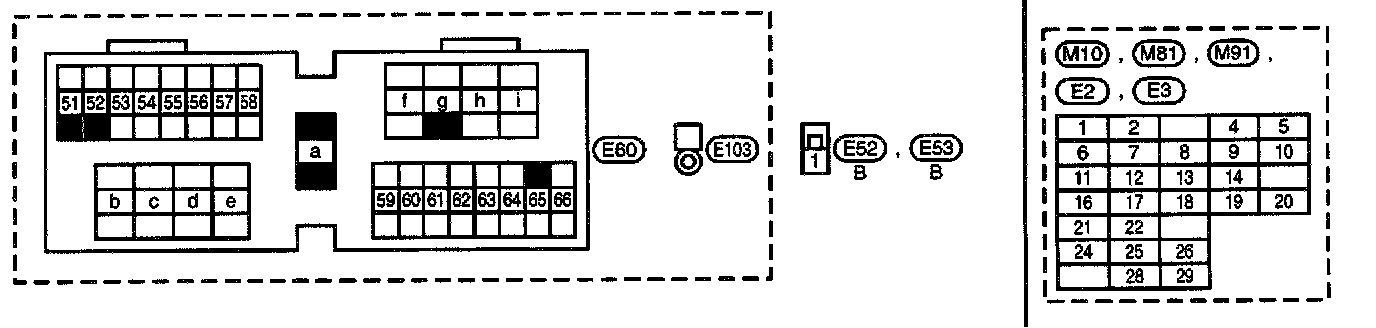

Main Harness, Engine Room, And Body Harness Connector Views:

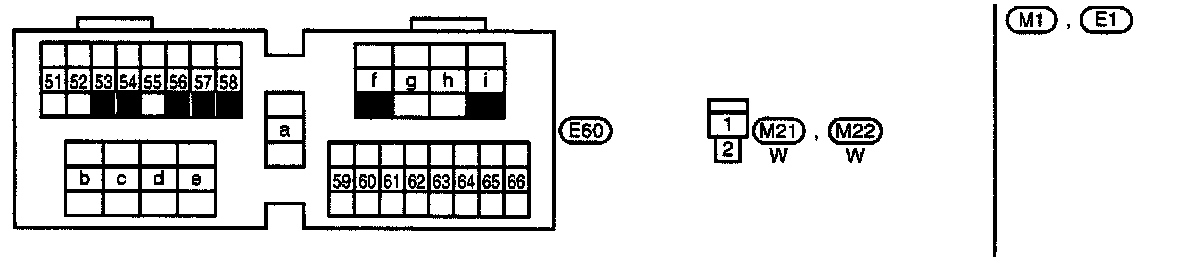

M1, E1 Super Multiple Junction Box (SMJ) Terminal Arrangement

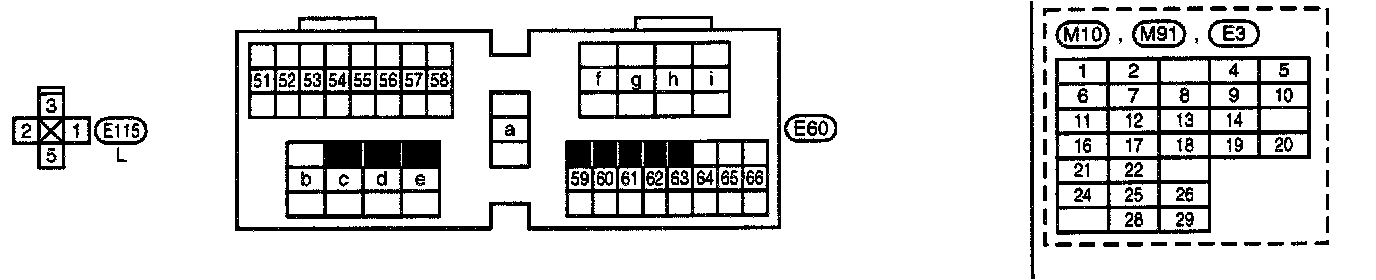

Fuse Block J/B Connector Views:
E2, E3, M10, M81, M91 Fuse Block - Junction Box (J/B) Terminal Arrangement
