Electric Load Sensor: Diagrams

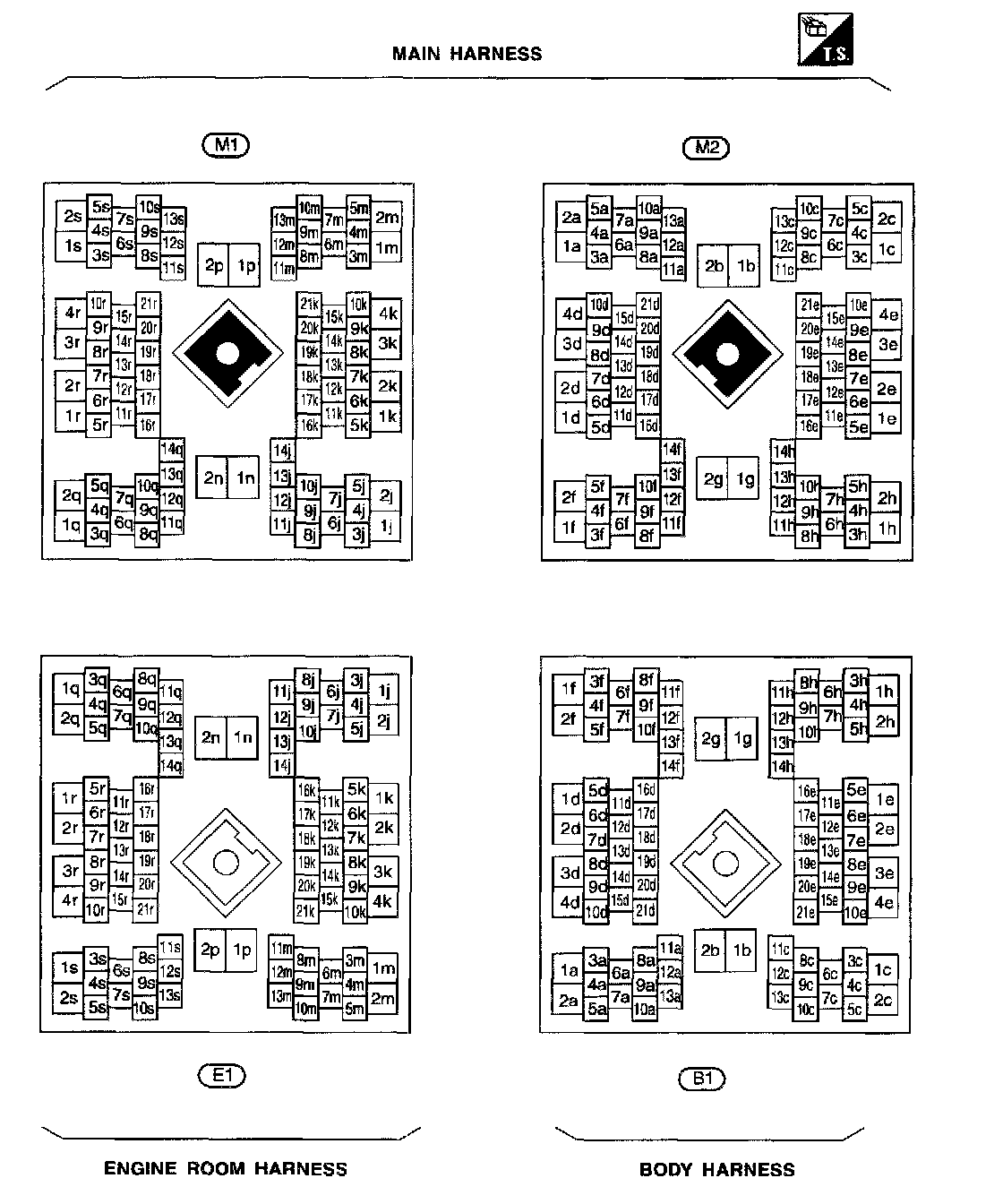

Super Multiple Junction (SMJ) Terminal Arrangement (B1, E1, M1, M2):

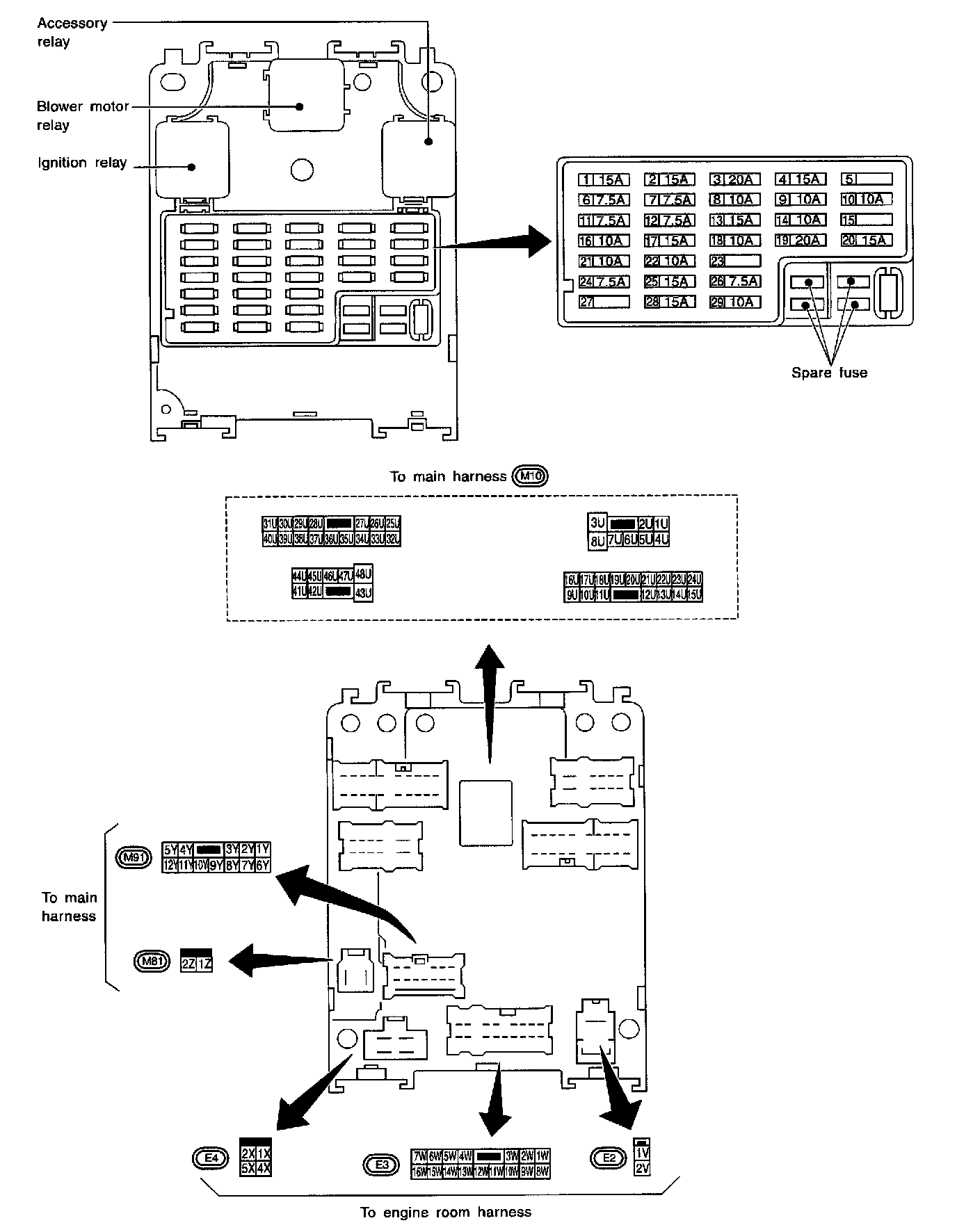

Fuse Block - Junction Box (J/B) Terminal Arrangement (E2, E3, E4, M10, M81, M91):
