Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection

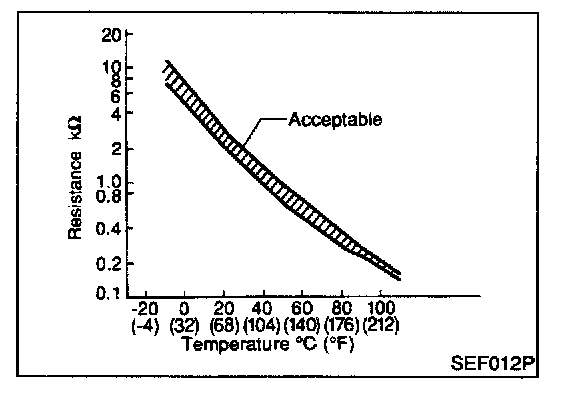

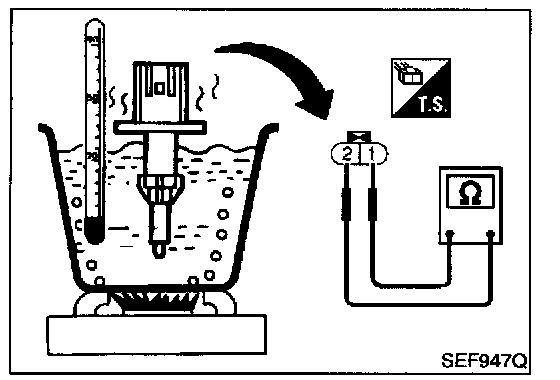

Check resistance as shown in the figure.

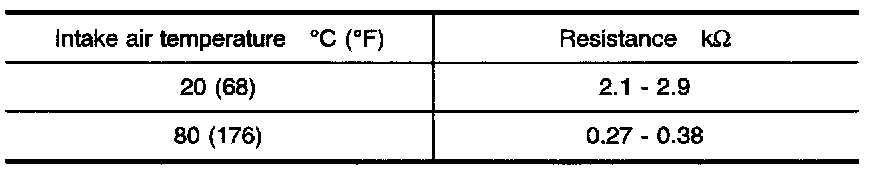

Reference Data:

If NG, replace intake air temperature sensor.
