Air Bag System

Repairs and Inspections Required After A Collision


FOR FRONTAL COLLISION
To repair the SRS, perform the following steps.

When SRS (except the side air bag) is activated in a collision:
1. Replace the diagnosis sensor unit.
2. Remove the air bag modules (except the side air bag module) and seat belt pre-tensioner assemblies.
3. Check the SRS components using the table shown:
- Replace any SRS components showing visible signs of damage (dents, cracks and deformation).

4. Install new air bag modules (except the side air bag module) and seat belt pre-tensioner assemblies.
5. Conduct self-diagnosis using CONSULT-II or "AIR BAG" warning lamp. Refer to "SRS Operation Check" for details. Ensure entire SRS operation properly.

When SRS is not activated in a collision:
1. Check the SRS components using the table shown:
- Replace any SRS components showing visible signs of damage (dents, cracks and deformation).

2. Conduct self-diagnosis using CONSULT-II or "AIR BAG" warning lamp. Refer to "SRS Operation Check" for details. Ensure entire SRS operation properly

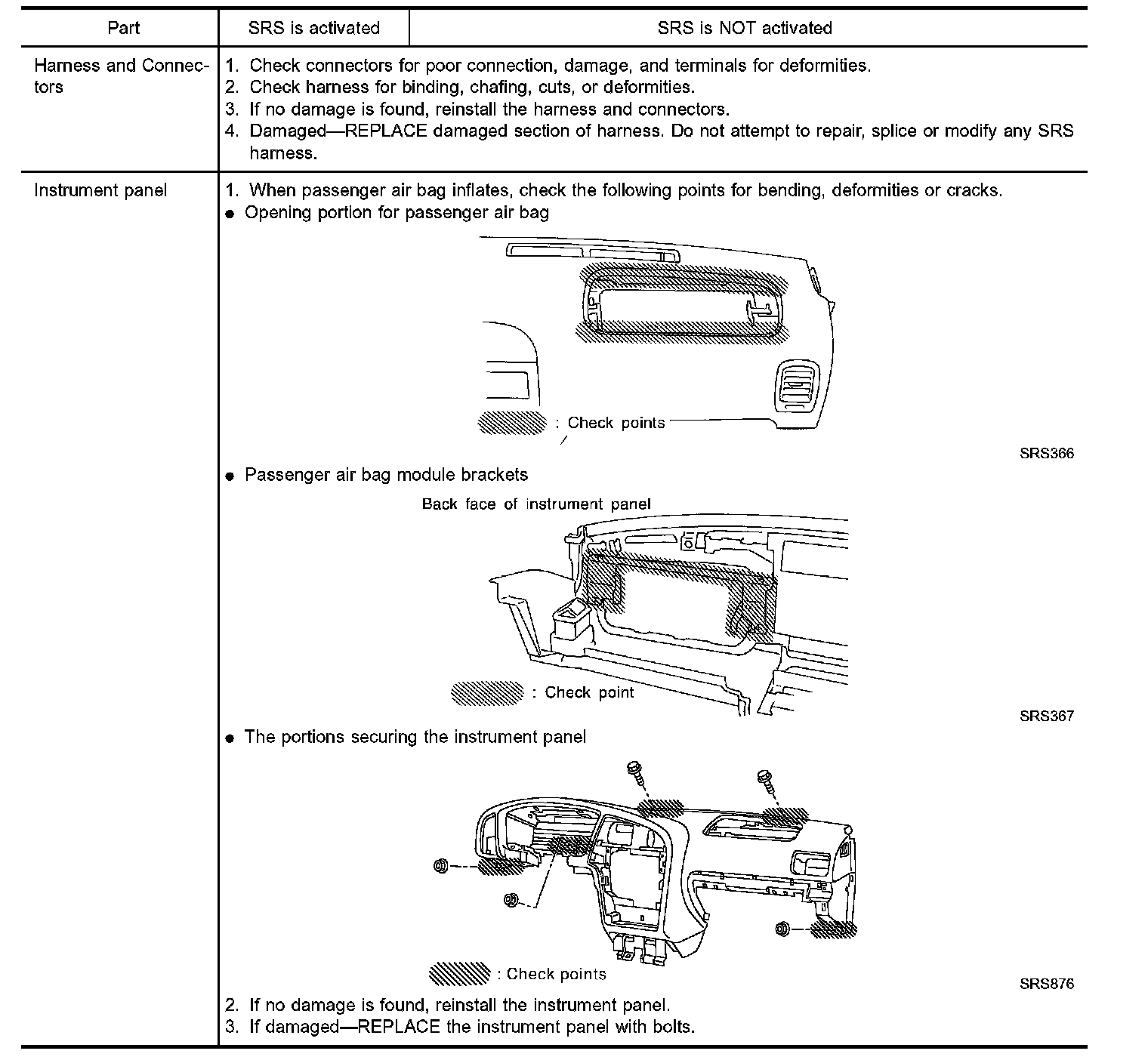

SRS Inspection (For Frontal Collision) Part 1:

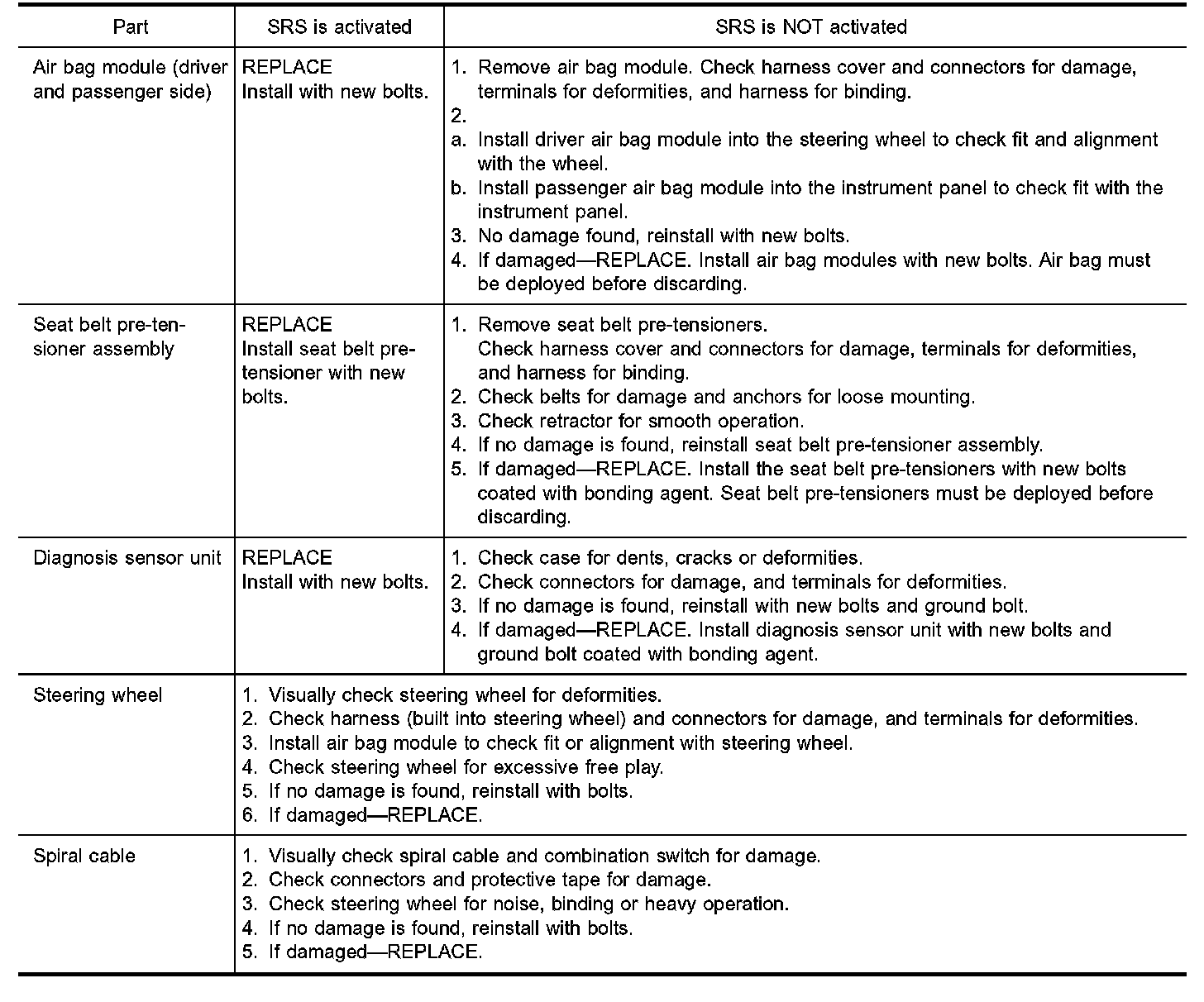

SRS Inspection (For Frontal Collision) Part 2:

SRS Inspection (For frontal collision)

FOR SIDE COLLISION
To repair the SRS for a side collision, perform the following steps.

When the side air bag is activated in the side collision:
1. Replace the following component:
- All parts of front seatback (including front seatback frame) with side air bag module (on the side on which side air bag is activated)
- Diagnosis sensor unit
- Satellite sensor (on the side on which side air bag is activated)

2. Check the SRS components and the related parts using the table shown.
- Replace any SRS components and the related parts showing visible signs of damage (dents, cracks deformation).

3. Conduct self-diagnosis using CONSULT-II or "AIR BAG" warning lamp. Refer to "SRS Operation Check for details. Ensure entire SRS operation properly.

When SRS is not activated in the side collision:
1. Check the SRS components and the related parts using the table shown.
- Replace any SRS components and the related parts showing visible signs of damage (dents, cracks deformation).

2. Conduct self-diagnosis using CONSULT-II or "AIR BAG" warning lamp. Refer to "SRS Operation Check for details. Ensure entire SRS operation properly

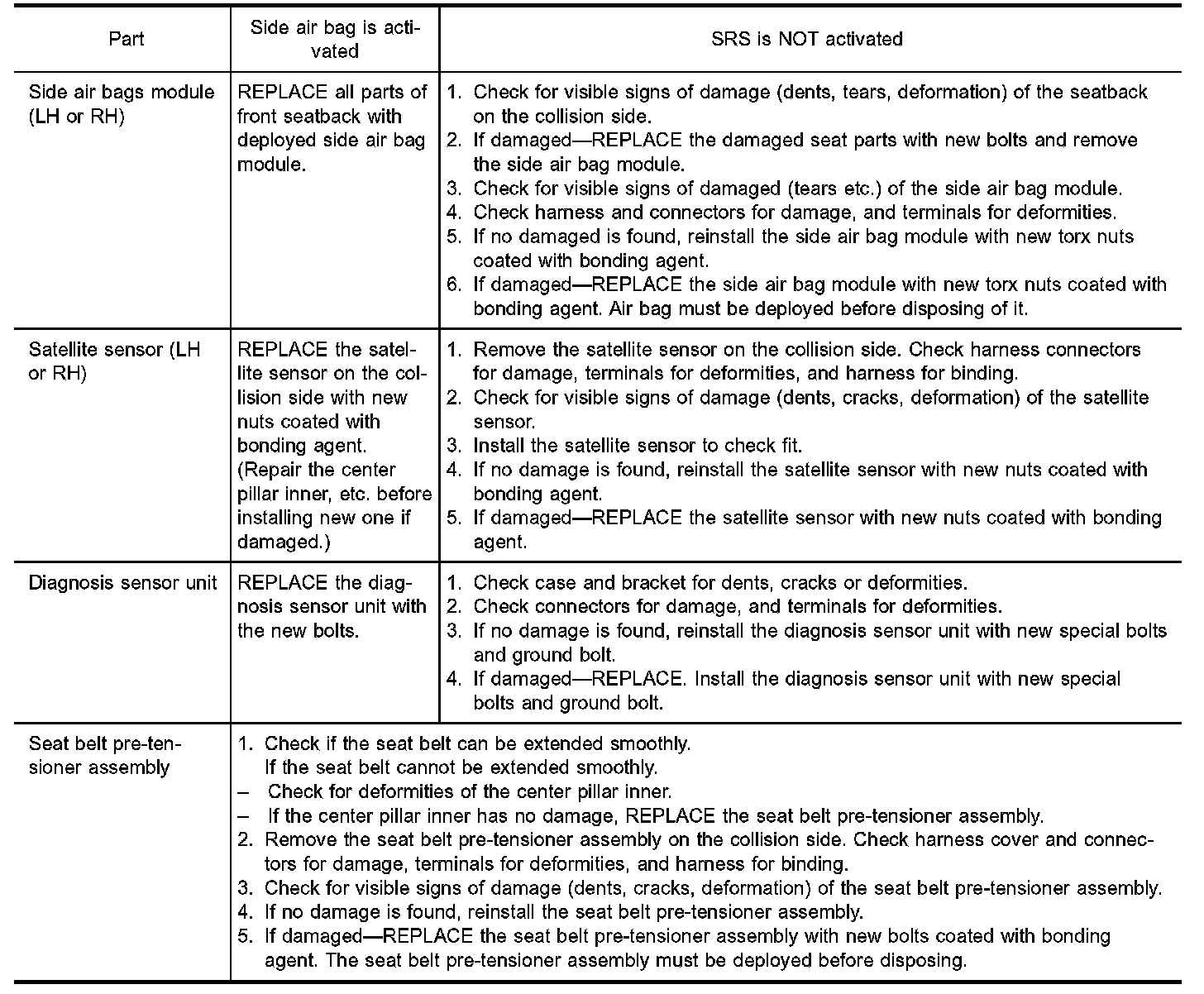

SRS Inspection (For Side Collision) Part 1:

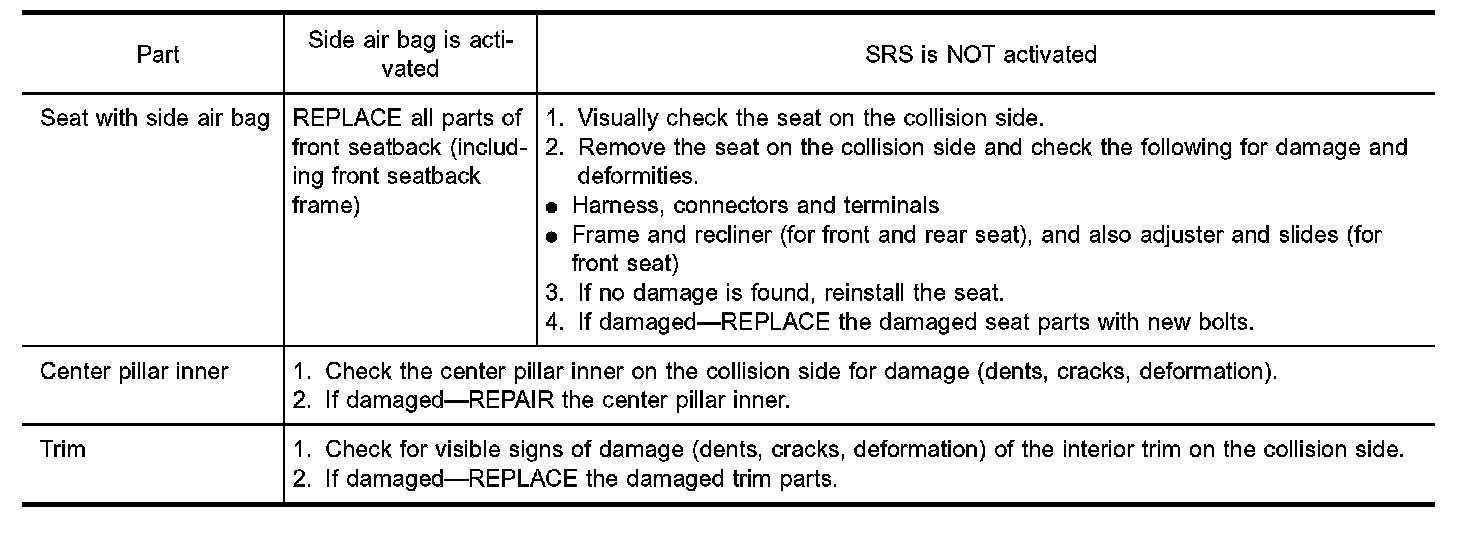

SRS Inspection (For Side Collision) Part 2:

SRS Inspection (For side collision)
