Evaporative Vapor Pressure Sensor: Testing and Inspection

1. Remove EVAP control system pressure sensor with its harness connector connected.
2. Remove hose from EVAP control system pressure sensor.

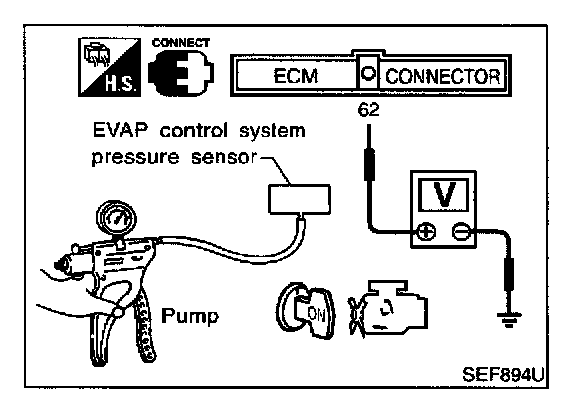

3. Turn ignition switch "ON".

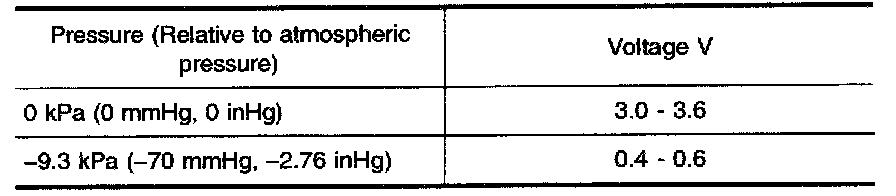

4. Use pump to apply vacuum and pressure to EVAP control system pressure sensor as shown in figure.




5. Check input voltage between ECM terminal 62 and ground.

CAUTION:
- Always calibrate the vacuum pump gauge when using it.
- Do not apply below -20 kPa (-150 mmHg, -5.91 inHg) or over 20 kPa (150 mmHg, 5.91 inHg) of pressure.

6. If NG, replace EVAP control system pressure sensor.
