EGR Control Solenoid: Testing and Inspection

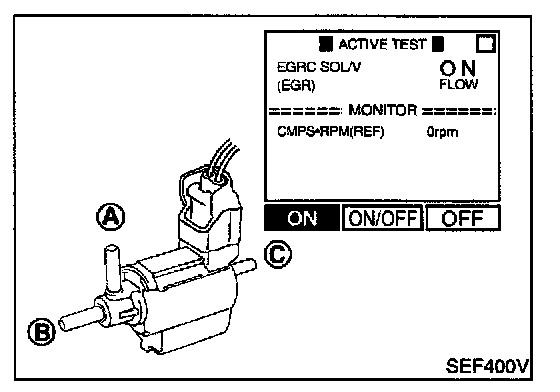

With CONSULT

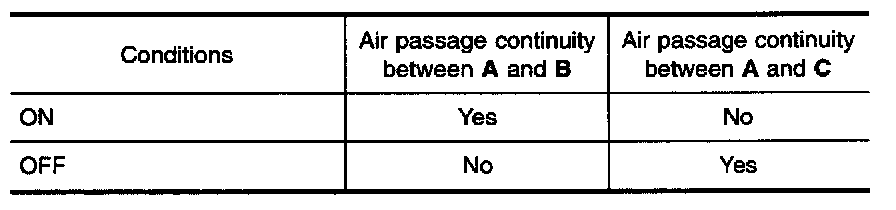

Perform "EGRC SOLENOID VALVE" in "ACTIVE TEST" mode.

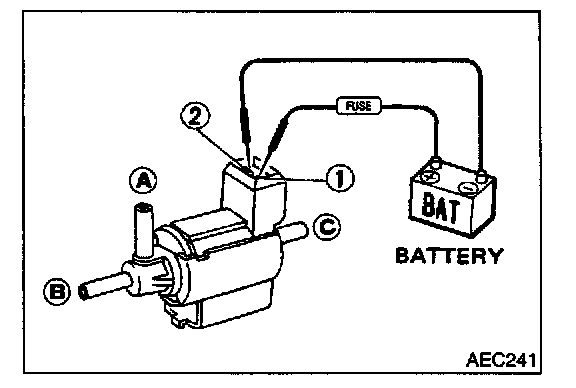

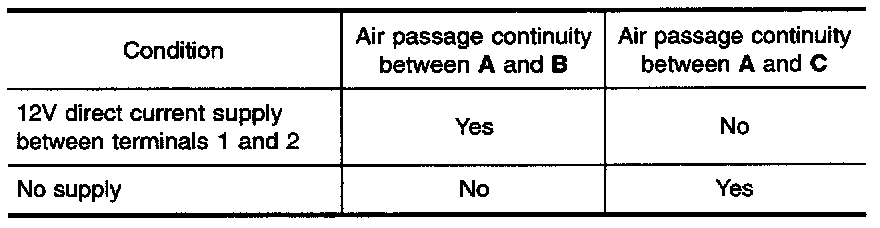

Without CONSULT
If NG or operation takes more than 1 second, replace solenoid valve.
