Power Supply Testing

Main Power Supply and Ground Circuit

EC-MAIN-01:

EC-MAIN-02:

WIRING DIAGRAM

Main Harness, Engine Room, And Body Harness Connector Views:

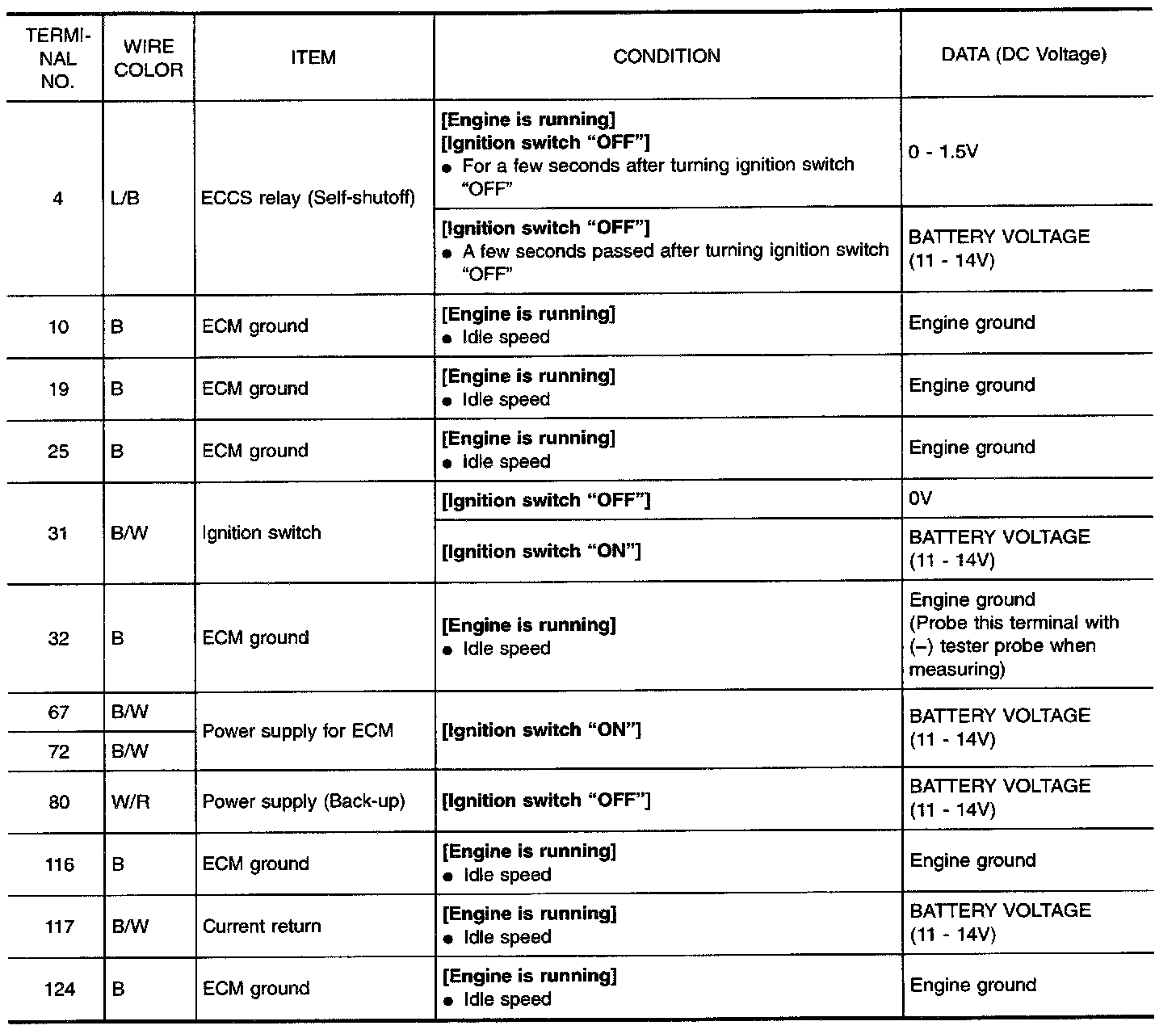

ECM TERMINALS AND REFERENCE VALUE
Specification data are reference values and are measured between each terminal and 32 (ECM ground).

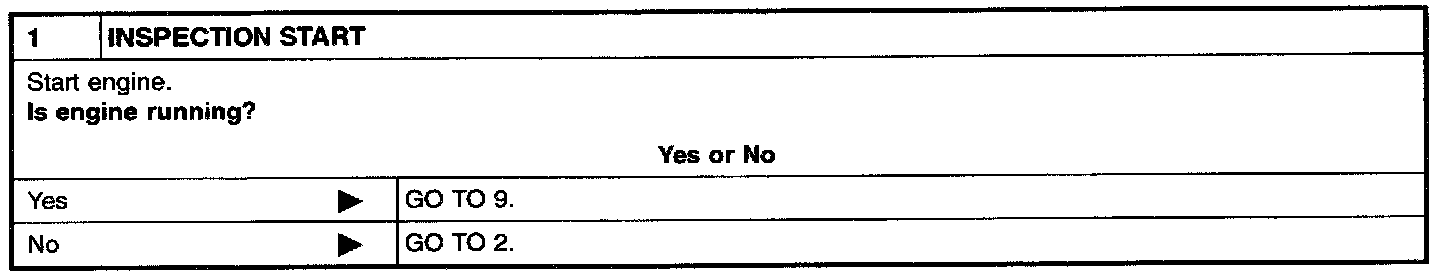

Step 1:

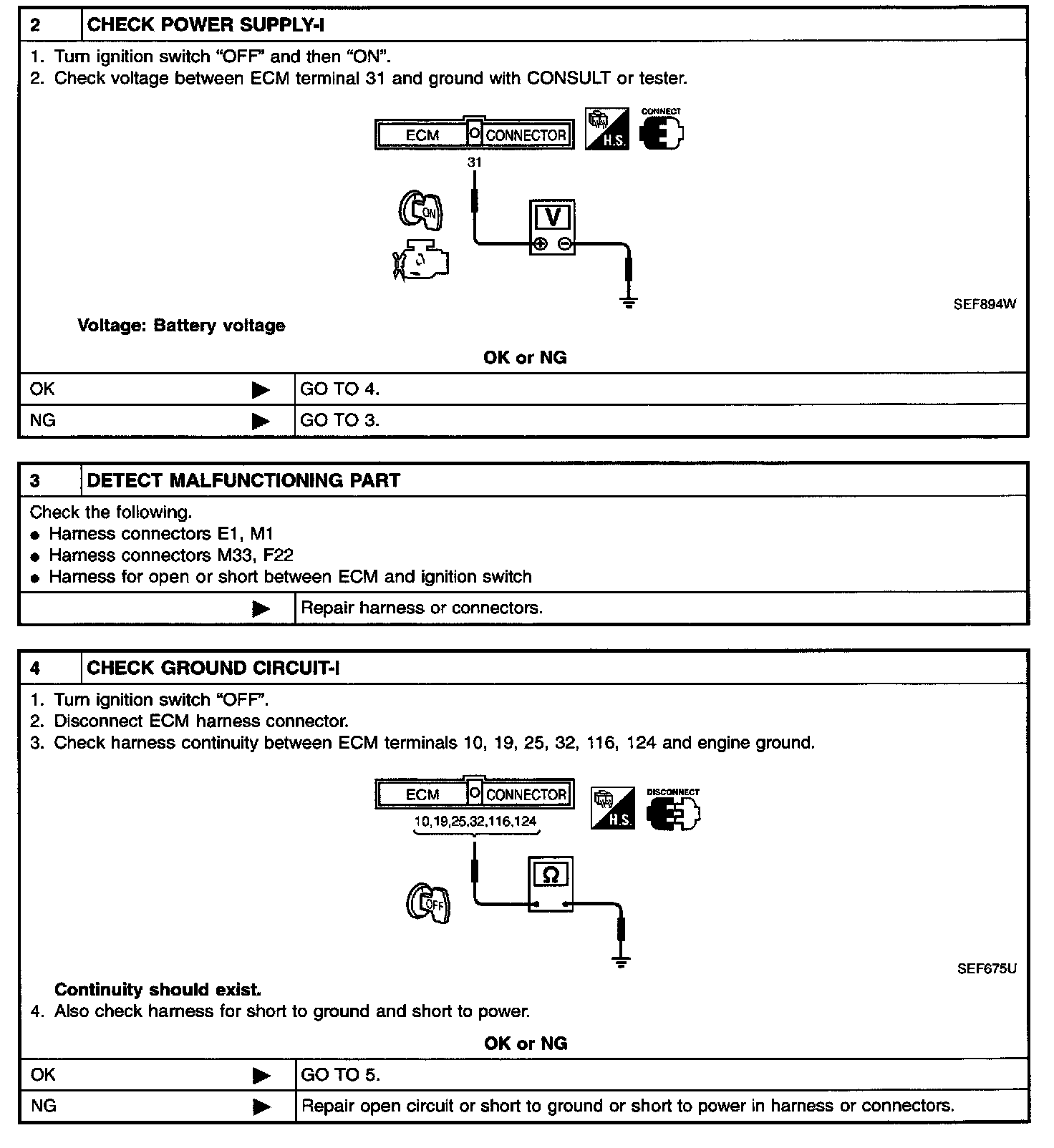

Steps 2 - 4:

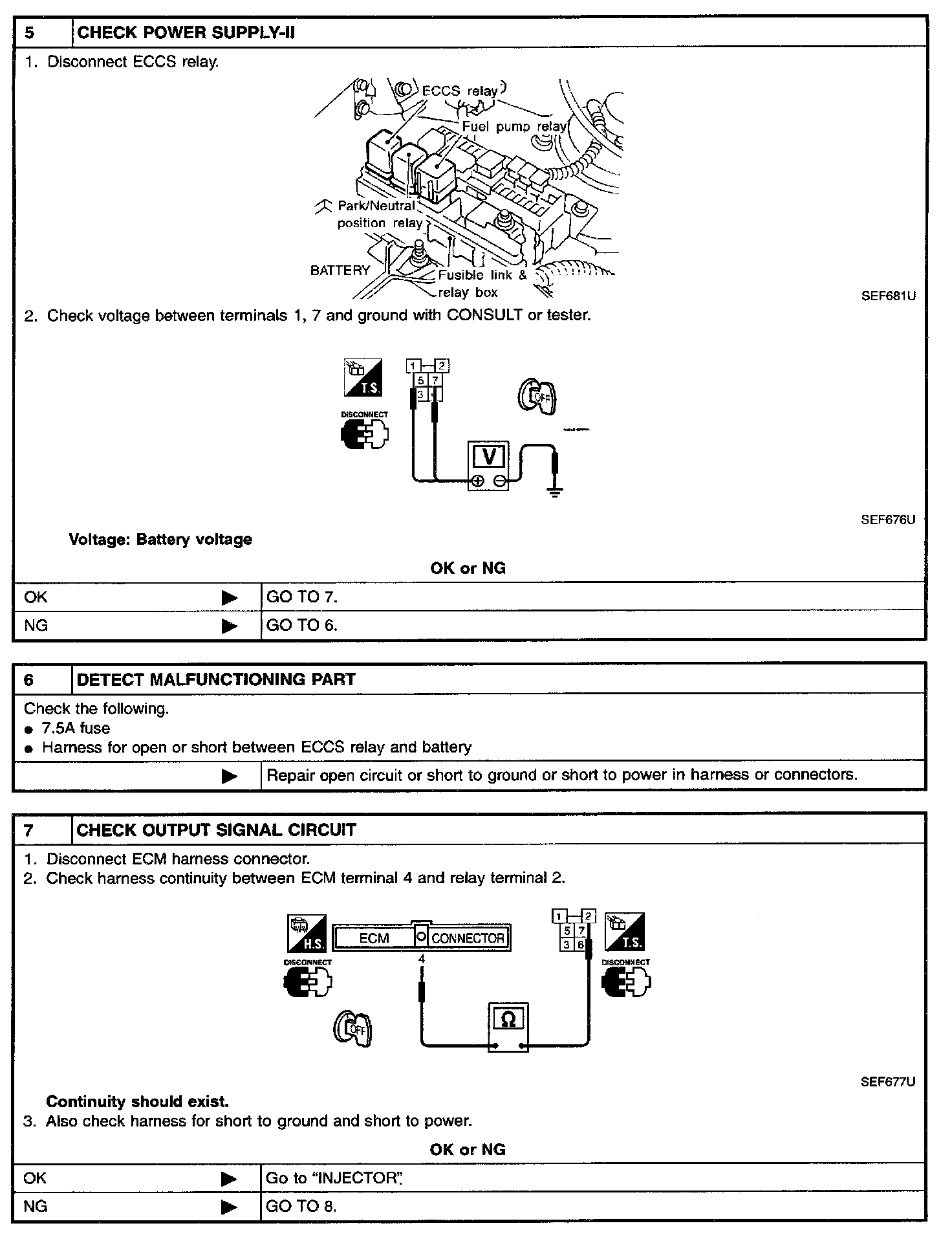

Steps 5 - 7:

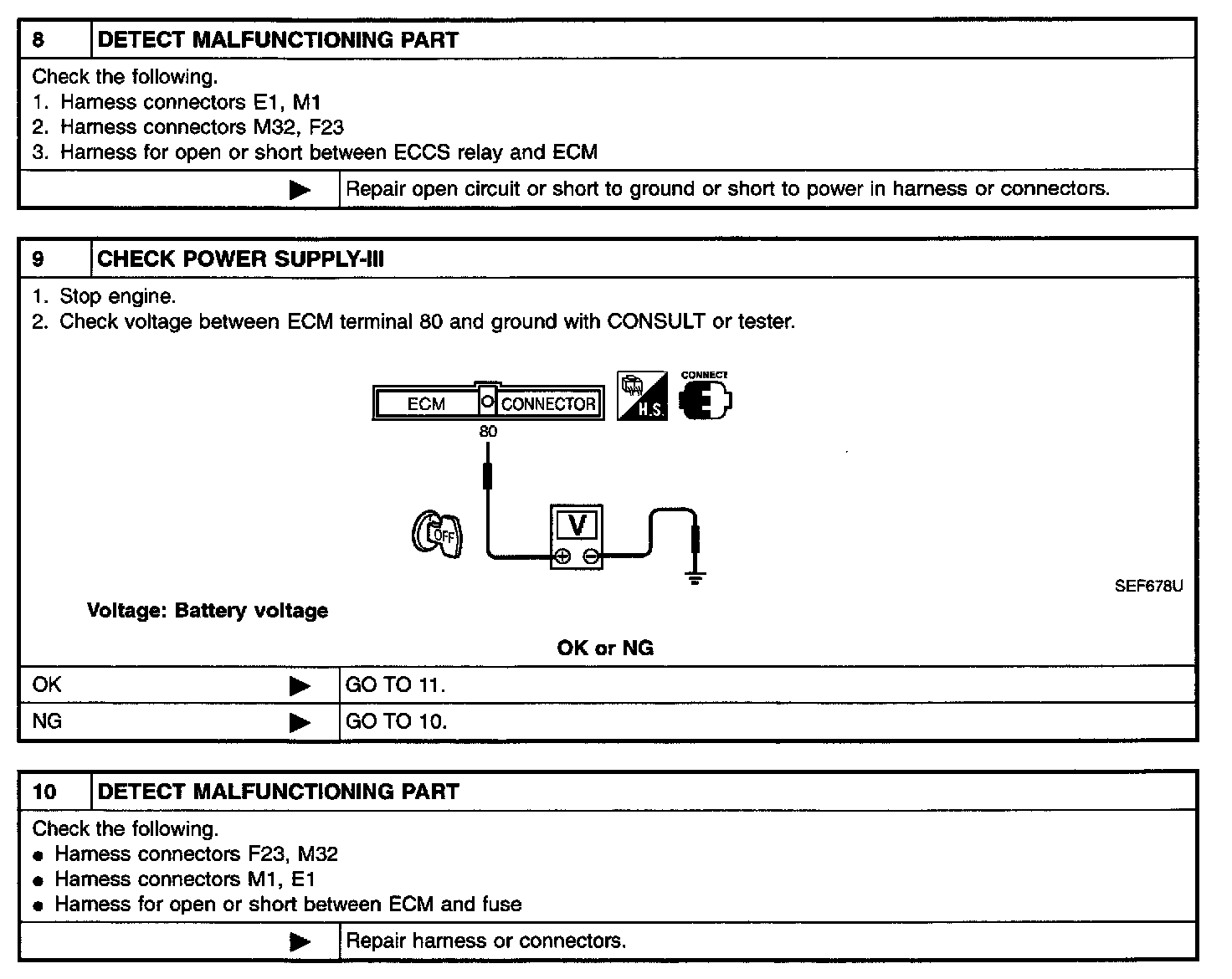

Steps 8 - 10:

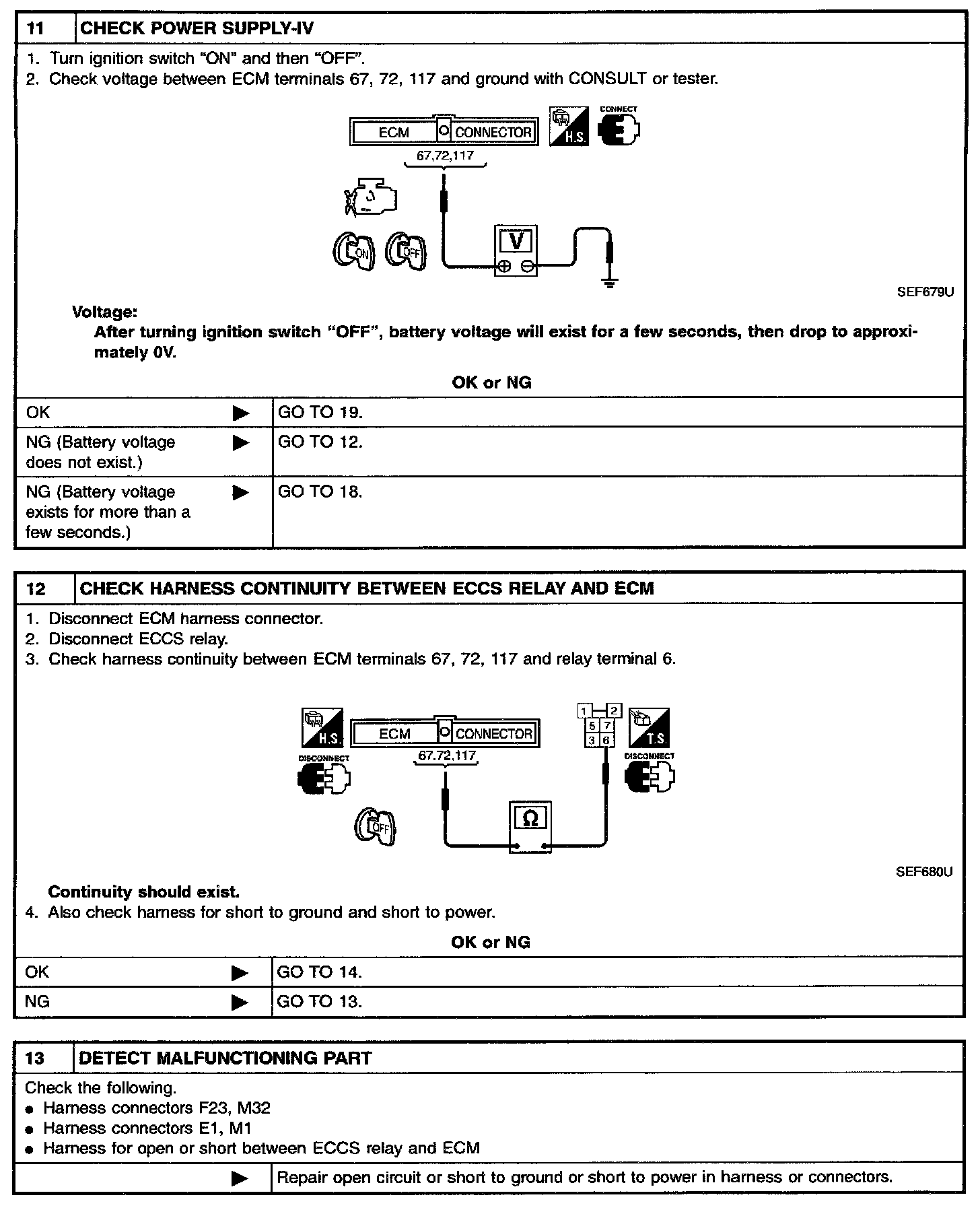

Steps 11 - 13:

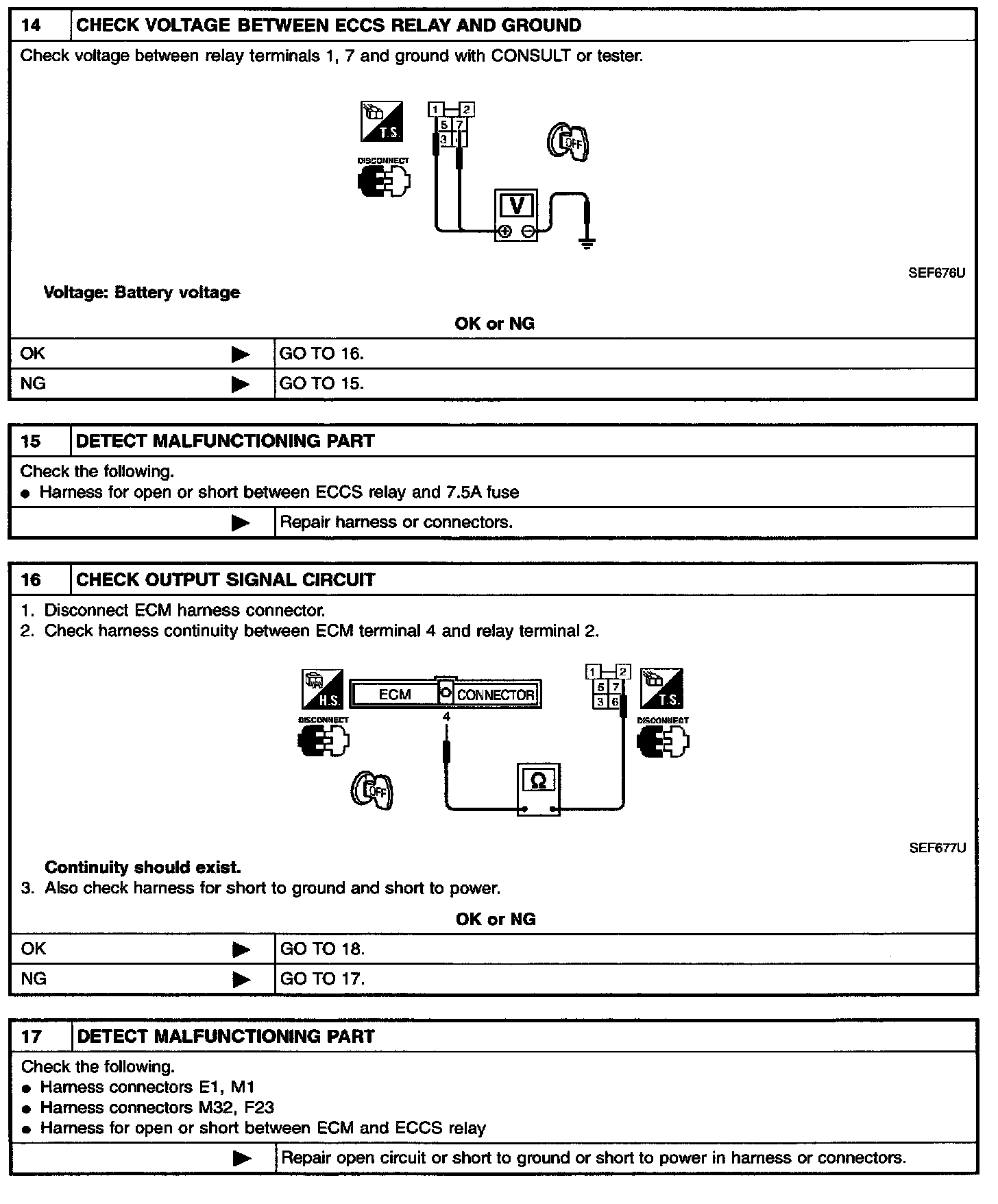

Steps 14 - 16:

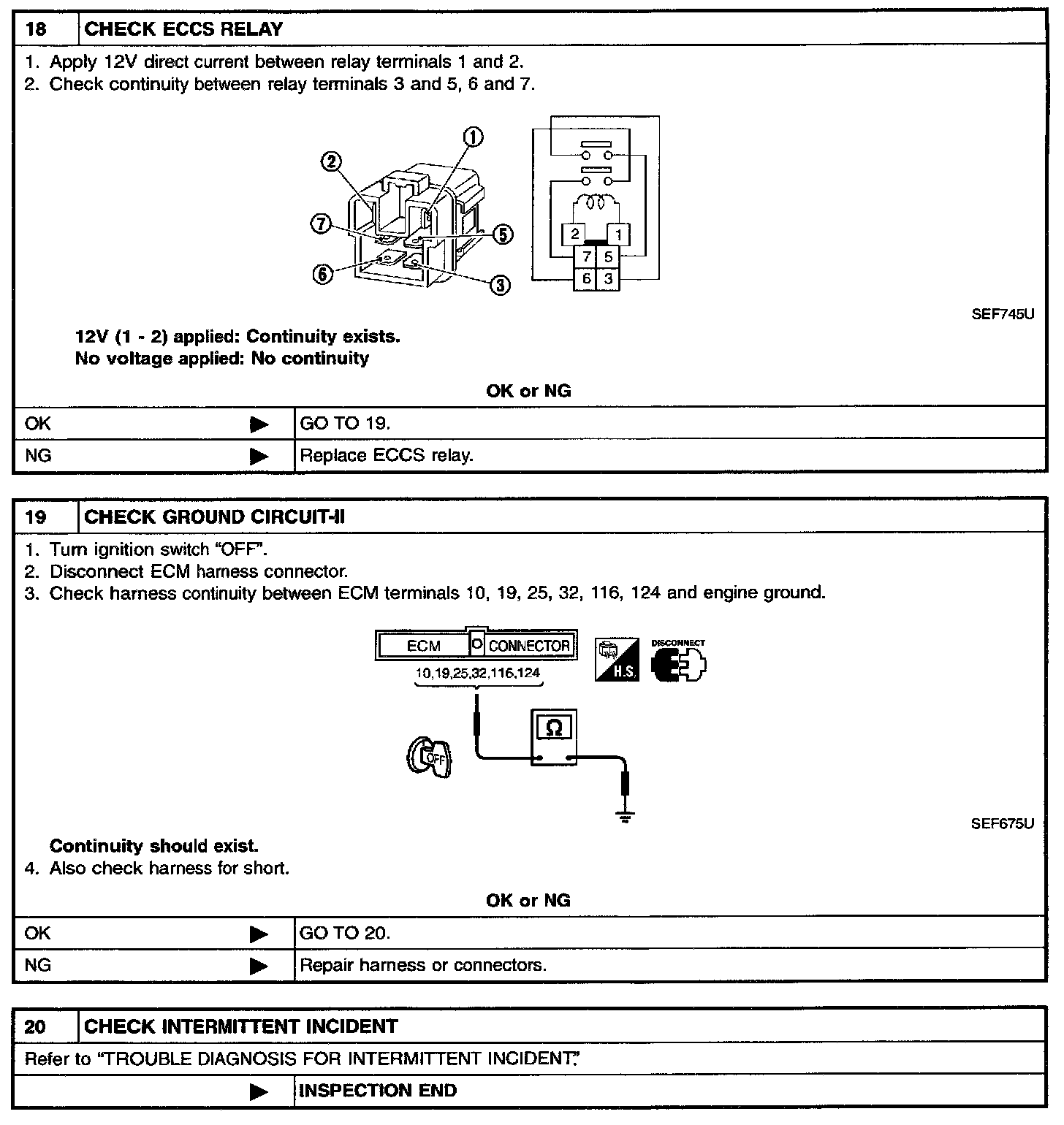

Step 18 - 20:

DIAGNOSTIC PROCEDURE
