IACV-FICD Solenoid Valve

Component Description
When the air conditioner is on, the IACV-FICD solenoid valve supplies additional air to adjust to the increased load. For more information, refer to "DESCRIPTION".

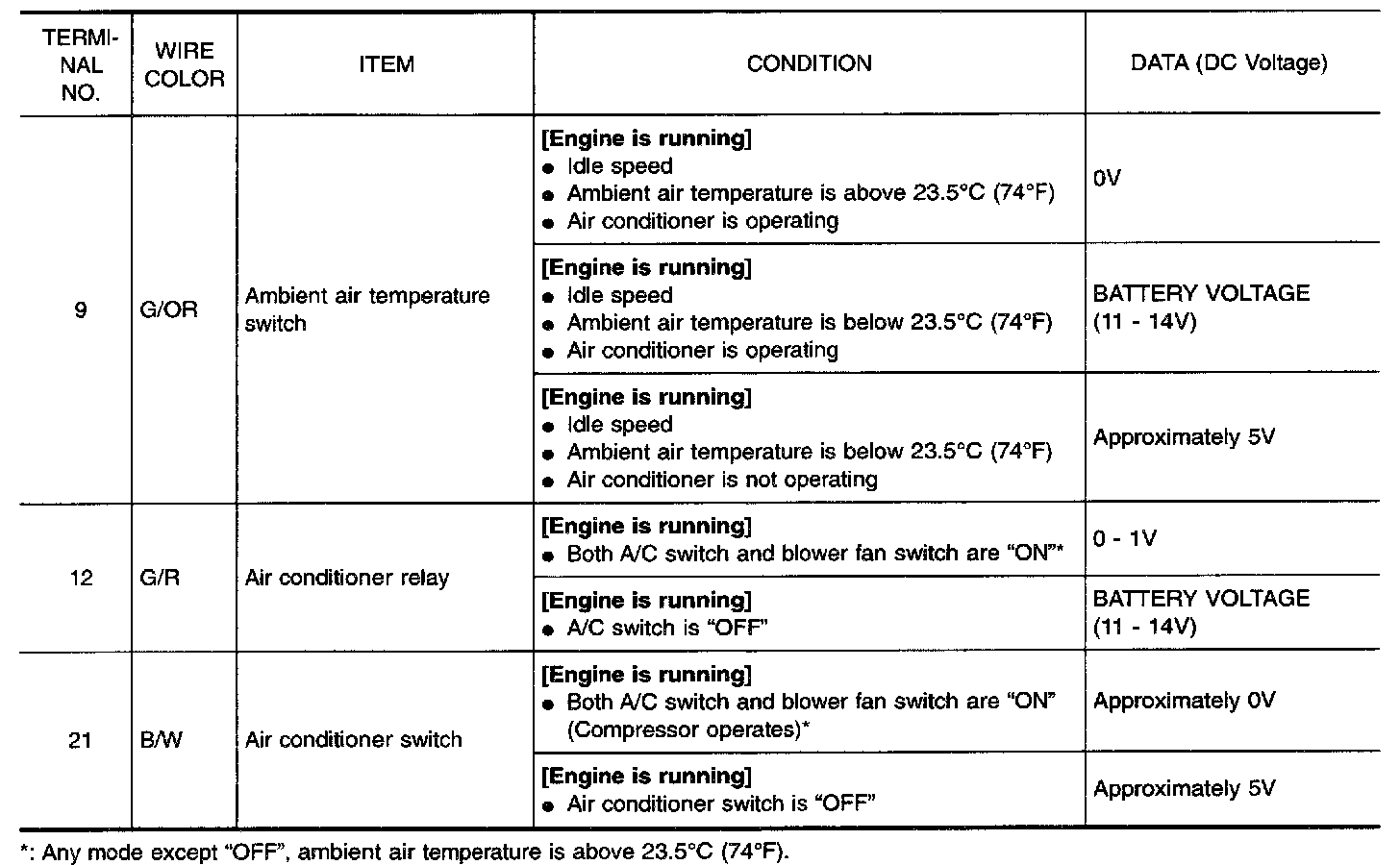

ECM Terminals And Reference Value:

ECM Terminals and Reference Value
Specification data are reference values and are measured between each terminal and 32 (ECM ground).

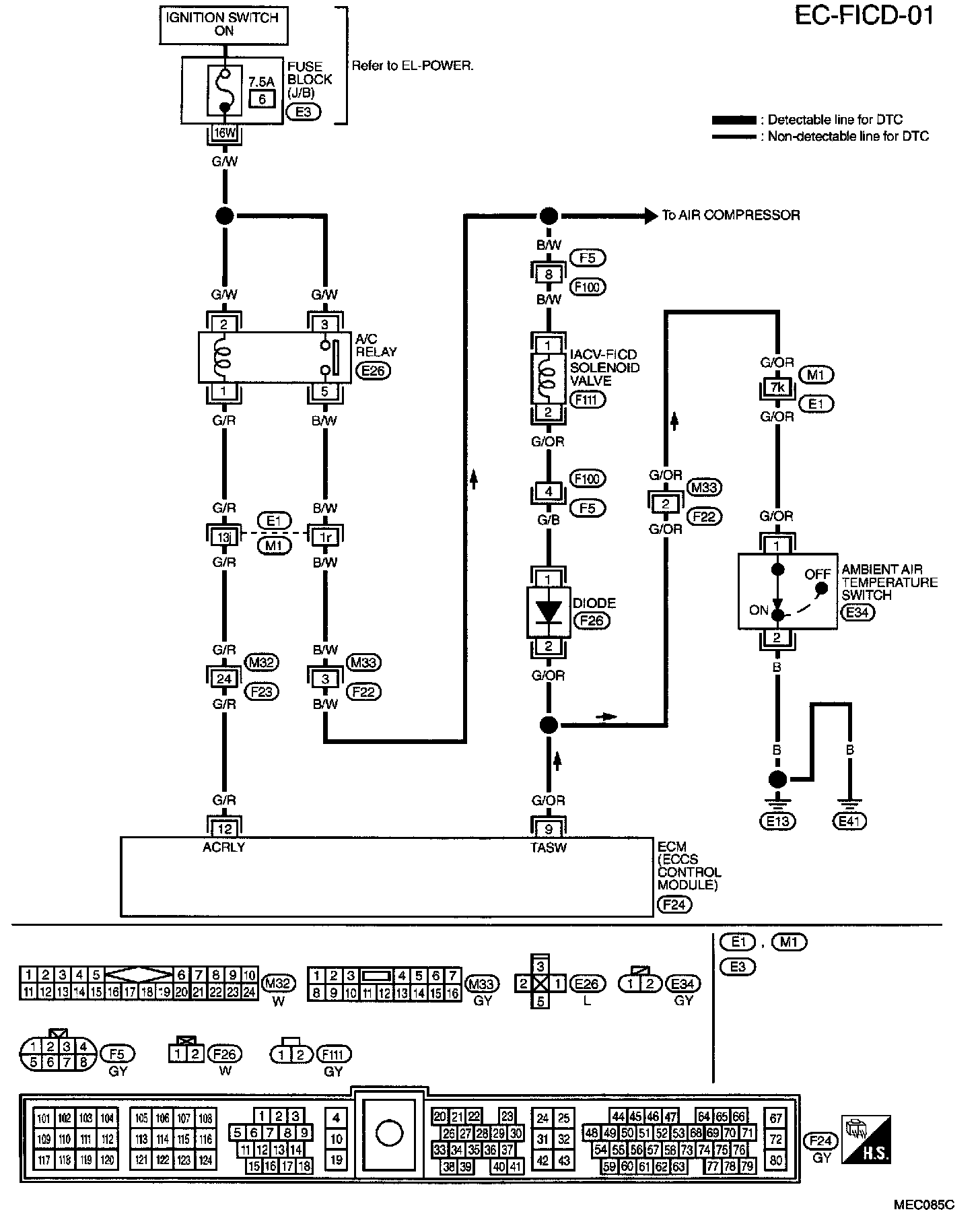

EC-FICD-01:

Wiring Diagram

Main Harness, Engine Room, And Body Harness Connector Views:

Fuse Block J/B Connector Views:

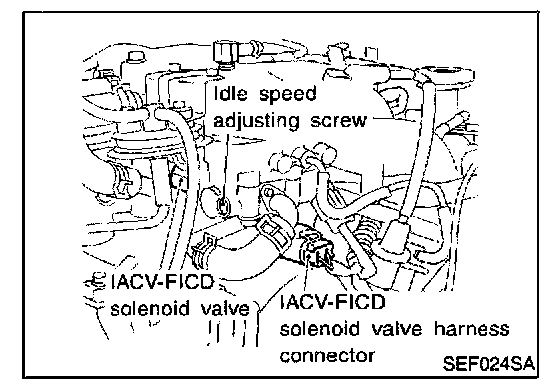

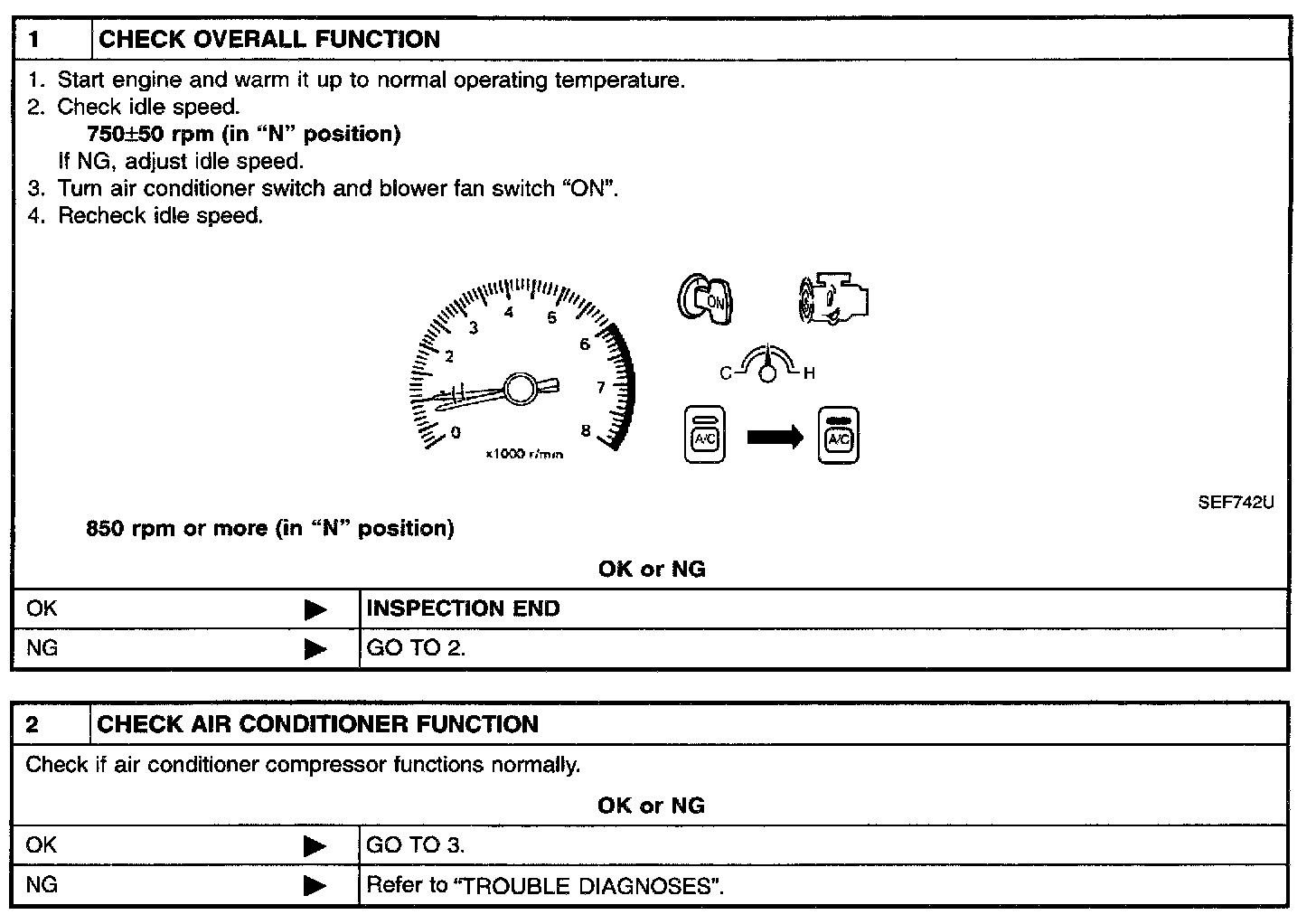

Steps 1 - 2:

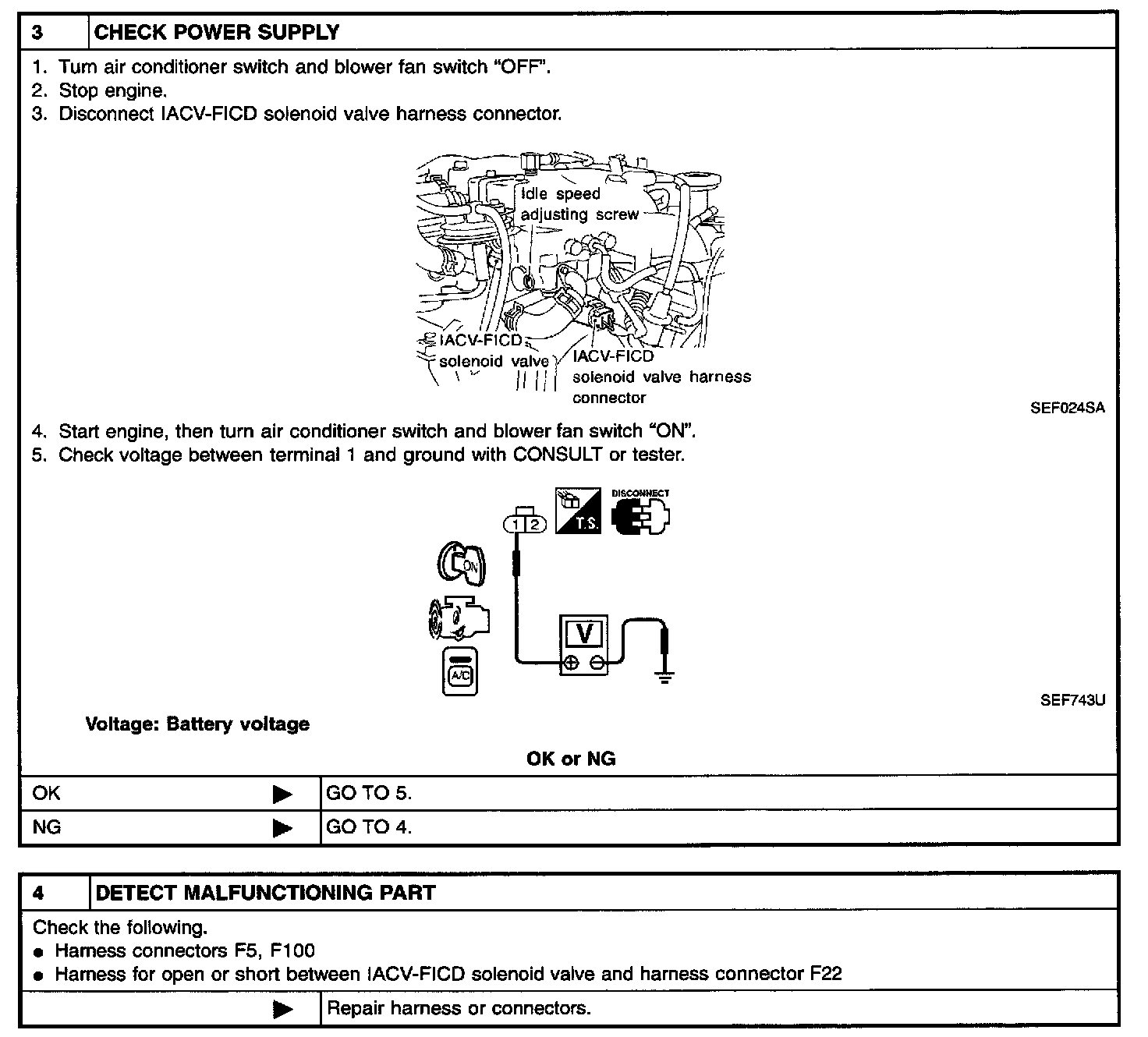

Steps 3 - 4:

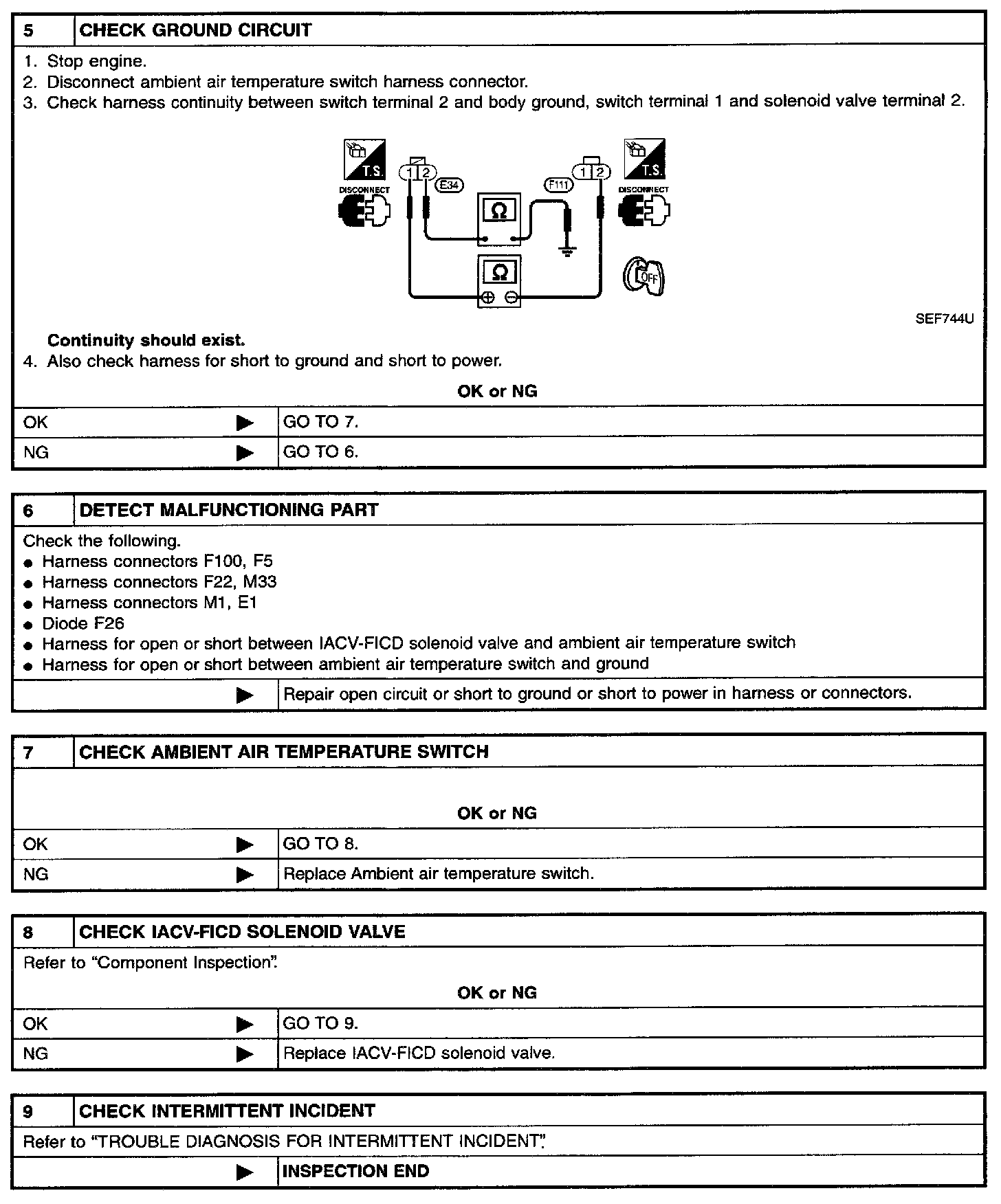

Steps 5 - 9:

Diagnostic Procedure

Component Inspection

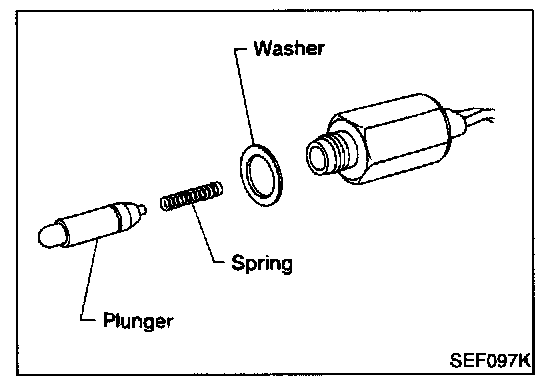

IACV-FICD SOLENOID VALVE

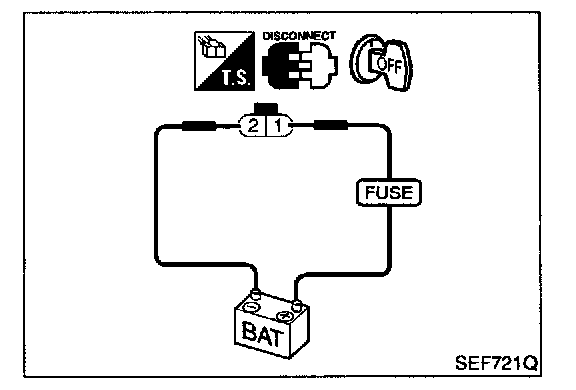

- Check for clicking sound when applying 12 V direct current to terminals.
- Check plunger for seizing or sticking.
- Check for broken spring.
