For Canada
Schematic

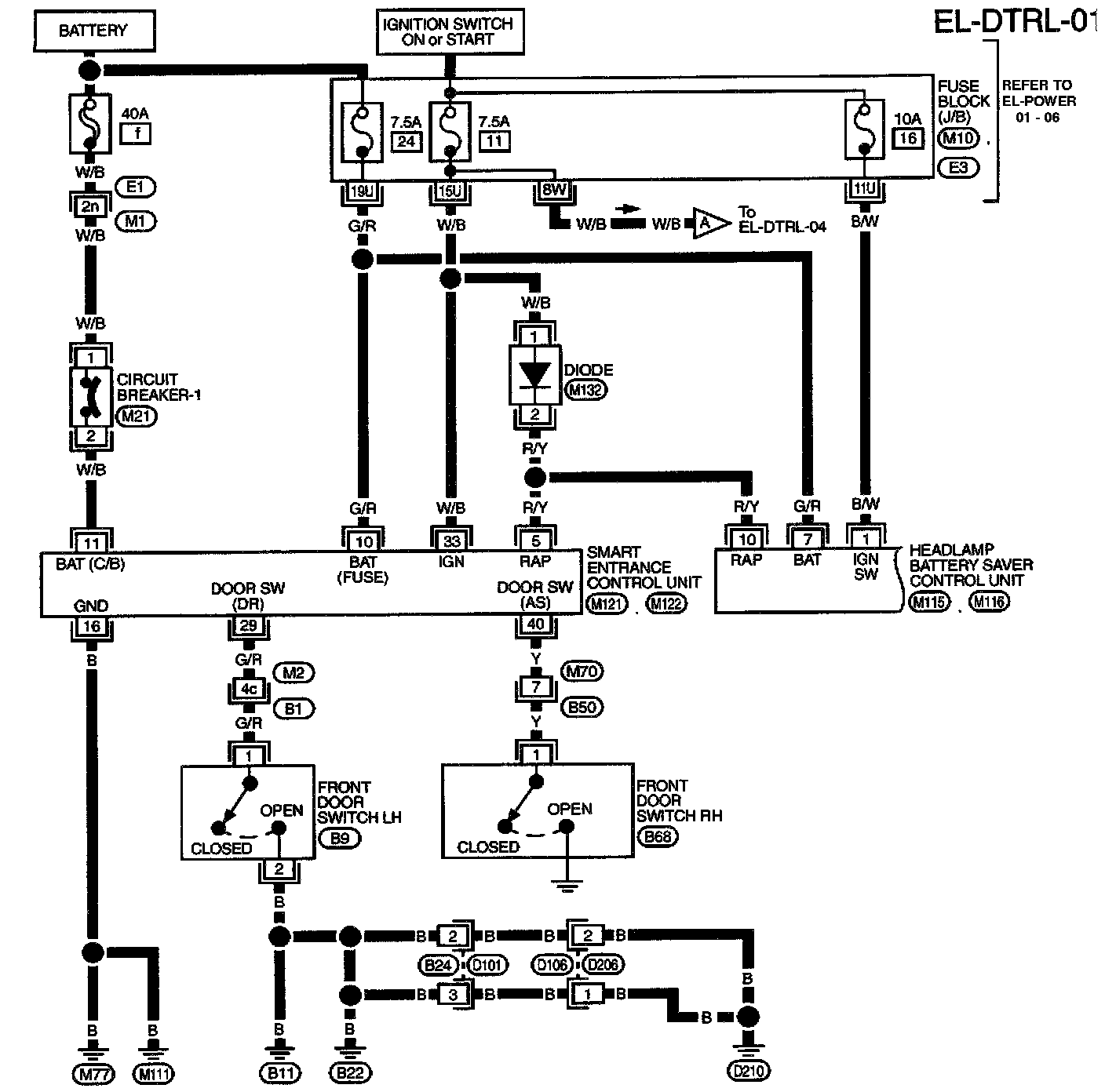

EL-DTRL-01:
(Part 1 of 5)
Fuse Block (J/B)
Headlamp Battery Saver Control Unit
Front Door Switch RH
EL-DTRL-02:
(Part 2 of 5)
Headlamp Battery Saver Control Unit

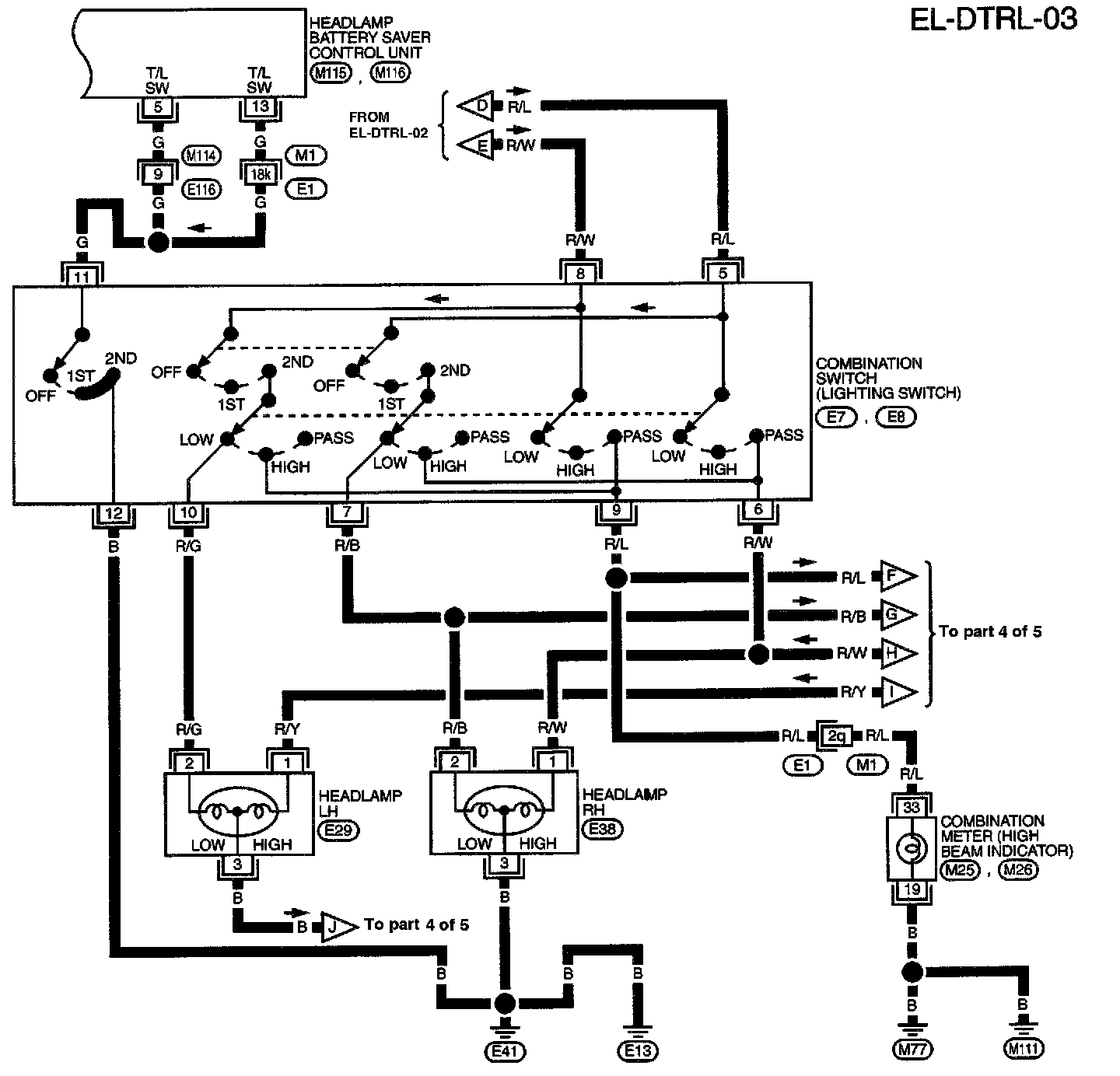

EL-DTRL-03:
(Part 3 of 5)
Headlamp Battery Saver Control Unit
Combination Switch(Lighting Switch)
Combination Meter (High Beam Indicator)
EL-DTRL-04:
(Part 4 of 5)
Fuse Block (J/B)
Daytime Light Control Unit
EL-DTRL-05:
(Part 5 of 5)
Fuse Block (J/B)
Combination Meter (Charge)
Circuit Connectors
Main Harness, Engine Room, And Body Harness Connector Views:
Fuse Block J/B Connector Views:
B1, E1, E3, M1, M2, M10 Super Multiple Junction Box (SMJ) and Fuse Block - Junction Box (J/B) Terminal Arrangement
